JRC JMA-933B - 6. OPTION UNIT; 6.1 Installation of Interswitch Unit

6-1
6. OPTION UNIT
6.1 Installation of Interswitch Unit
6.1.1 Equipment Cable End Processing
1) Equipment cable end processing

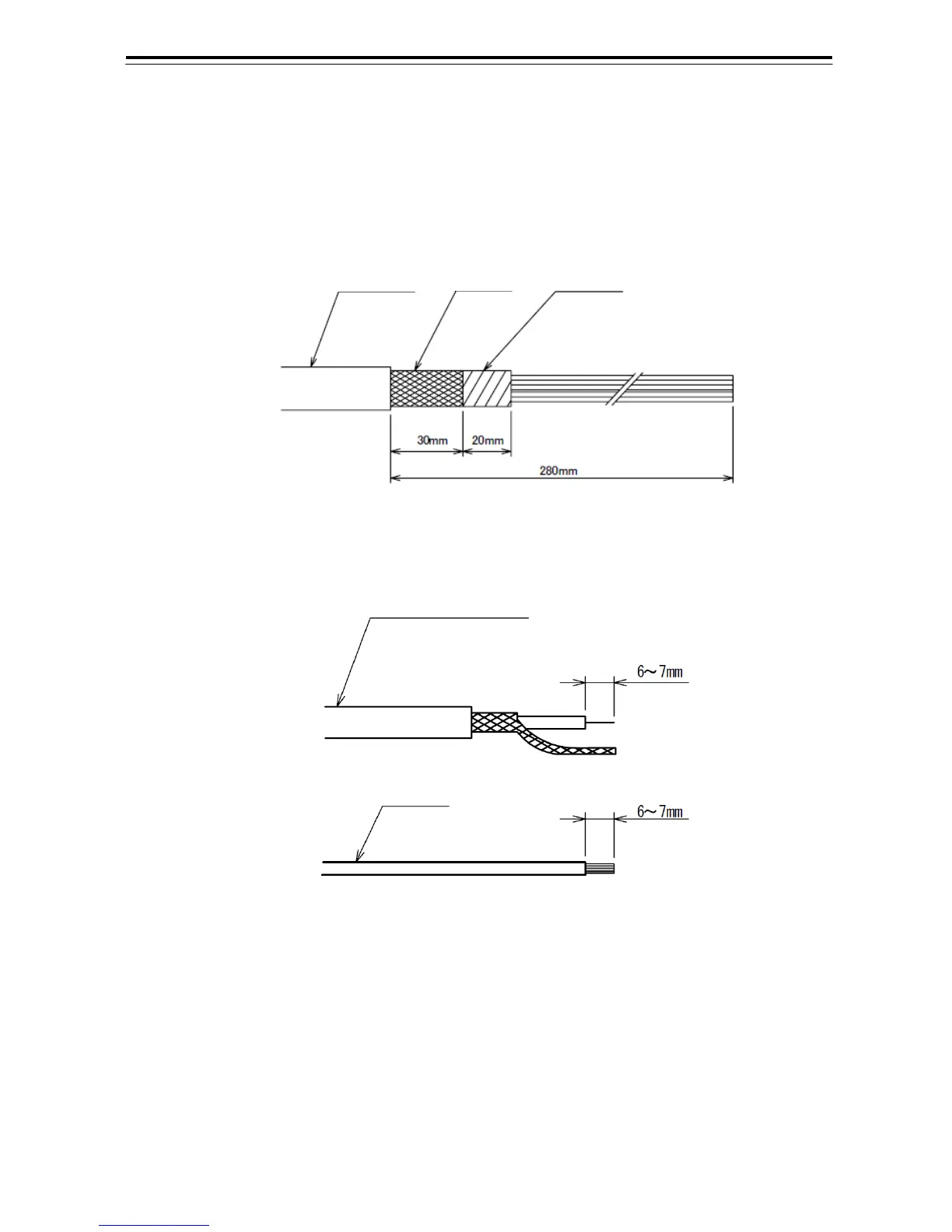

Fig 6-1: Equipment cable end processing
2) End processing of each cable core
Fig 6-2: End processing of each cable core
6.1.2 Connection of Equipment Cable
1) Remove the cable retainer.
2) Connect each cable to radar terminal board circuit TB602 and TB603 by referring to Section 6.1.6
Inter-board connection diagram. (For the method for connecting the plug terminal block, see
Section 6.1.2 Plug terminal block connection procedures)
3) Securely mount the cable by using the cable tetatier.
Coaxial or Shield cable
Vinyl cable
Shielding
Equipment cable
Tape
