5-6

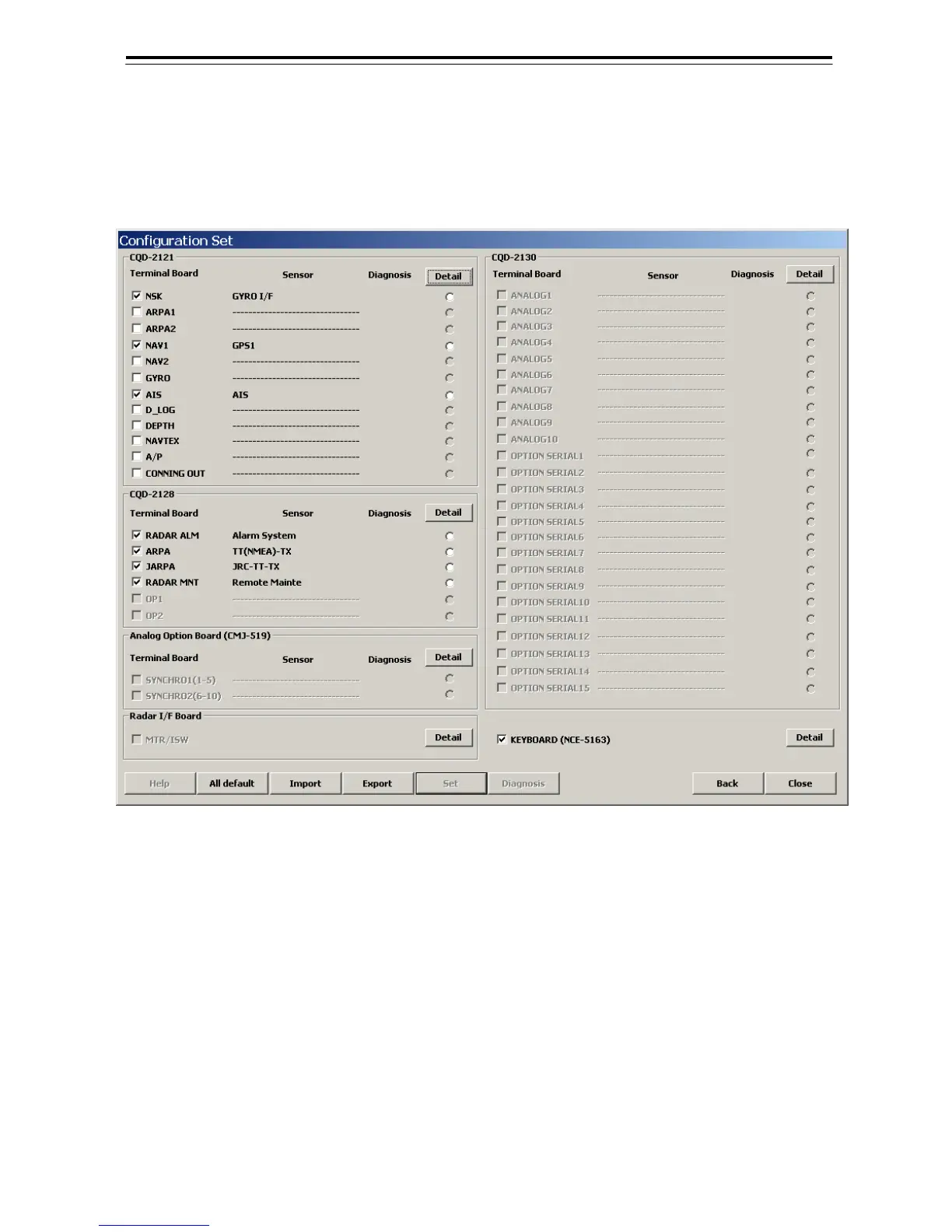

5.1.3.2 Configuration Setting
The [Configuration Set] dialog is divided every name of CQD-2121 (standard terminal board),
CMJ-519 (analog option board), CQD-2130 (option terminal board) and the terminal board.
CQD-2121 Terminal Board: The setting about the sensor which connected with
CQD-2121 terminal board.
CQD-2128 RADAR Terminal Board: The setting about the sensor which connected with
CQD-2128 RADAR terminal board.
Analog Option Board(CMJ-519): The setting about the sensor which connected with CMJ-519
AOB.
CQD-2130 Terminal Board: The setting about the sensor which connected with
CQD-2130 option terminal board.
Configuration Set
To Next Page
