6.1.6 Confirmation after Installation
1) After having checked connections, turn on the switchboard breaker.
2) Turn on the power to the radar display unit, and make sure that the interswitch button is display
unit, and make sure that the interswitch button is displayed on the screen and pressing the button
will switch antennas.
3) When a system conststs of three devices, make sure that the CH number and the display unit
position are arranged as intended.
6.1.7 Inter-board Connection Diagram
1) NQE-3141-2A(in case of connecting to JMA-9100)
VD OUT
VD OUT E
TRIG OUT
TRIG OUT E
BP OUT
BP OUT E
BZ OUT
BZ OUT E
PWR OUT
PWR OUT E
VD IN
VD IN E
TRIG IN
TRIG IN E
BP IN
BP IN E
BZ IN
BZ IN E
PWR IN
PWR IN E
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
ORG
BLK
TB602 TB603
JMA-900B
NCD-2096
JMA-9100/7100
NCD-4990
VD IN1
VD IN1 E
TRIG IN1
TRIG IN1 E
BP IN1
BP IN1 E
BZ IN1
BZ IN1 E
MTR IN1 +
MTR IN1 -
MTR IN1 E
PWR IN1
PWR IN1 E
PWR OUT1
PWR OUT1 E
VD OUT1
VD OUT1 E
TRIG OUT1
TRIG OUT1 E
BP OUT1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
BP OUT1 E
BZ OUT1
BZ OUT1 E
MTR OUT1 +
MTR OUT1 -
MTR OUT1 E
21
22
23
24
25
26
TB4201 (ISW IN/OUT)
VD +
VD -
TRIG +
TRIG -
BP +
BP -
BZ +
BZ -
MTR +
MTR -
MTR E
RBVD
RBVDE
RBTRIG
MTR IN +
MTR IN -
MTR IN E
MTR OUT +
MTR OUT -
MTR OUT E
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
H-2695111153*
(JRC SUPPLY)
YEL
GRN
BLU
1
PNK
BRN
PUR
WHT
RED
2
1
BLU
BLU
WHT
WHT
YEL
2
RED
YEL
GRN
BLU
WHT
PUR
WHT
YEL
WHT
ORG
BLK
PNK
BRN
CQD-2128
“*” means revision, such as A, B and so on.
*はA, Bのようにリビジョンを示す。

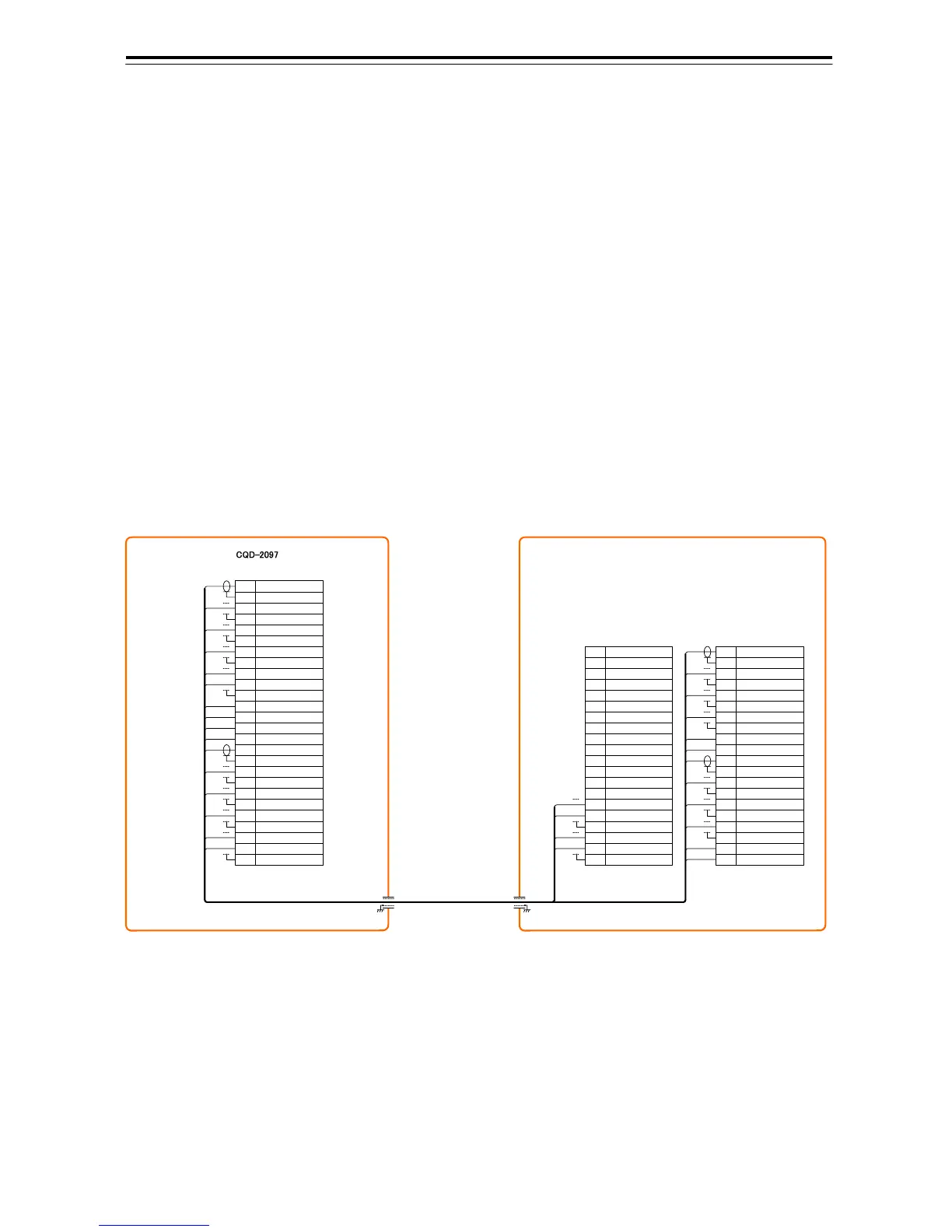

Fig 6-12: NQE-3141-2A Inter-board connection diagram
