JRC JMA-933B User Manual

6-10

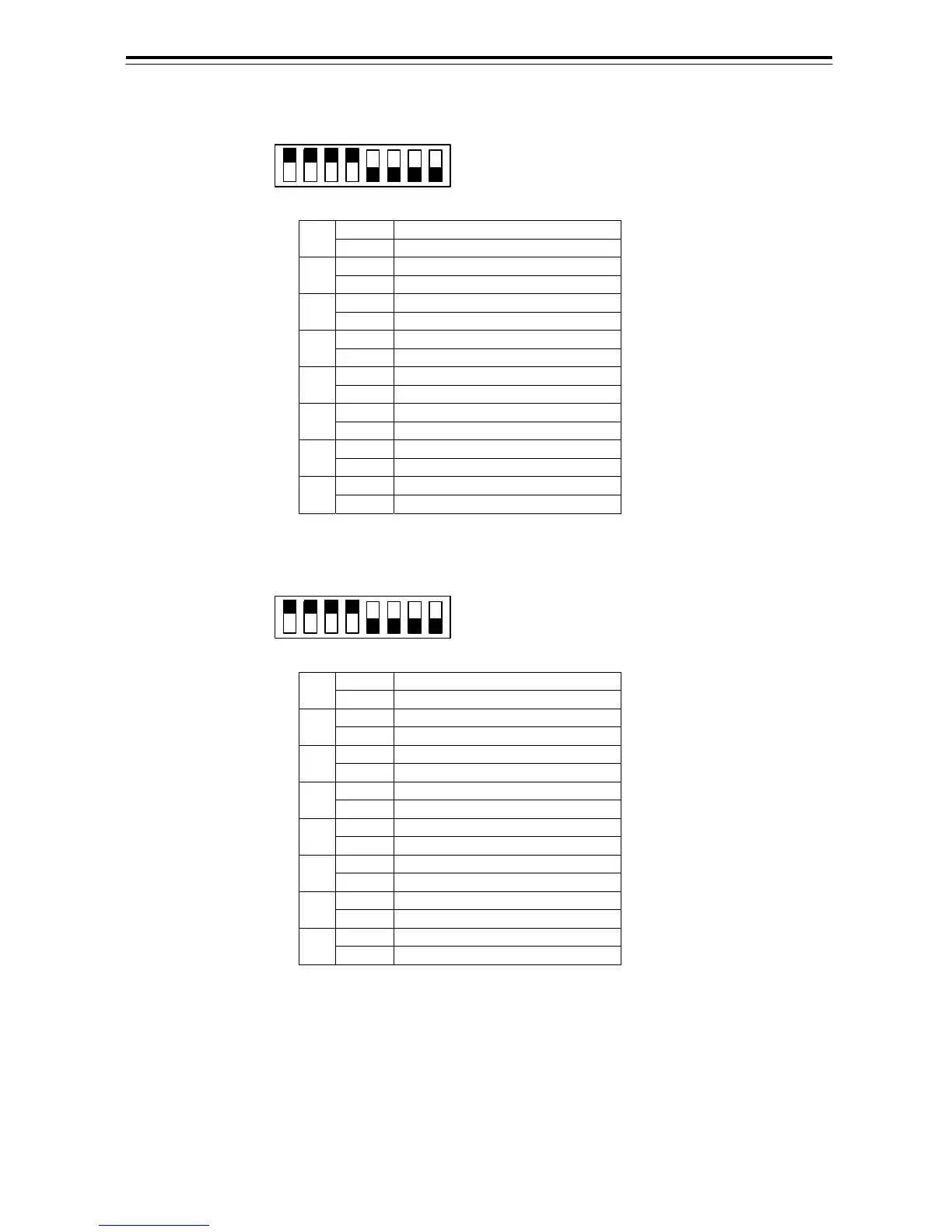

・Setting of upper CCL-304R, SW12 (radar connection setting)
1 234
ON
OFF
5768
Radar Connection Setting
ON No.1 display unit connected
1
OFF No.1 display unit not conncted
ON No.1 antenna connected 2
OFF No.1 antenna not conncted
ON No.2 display unit conncted 3
OFF No.2 display unit not connected
ON No.2 antenna connected 4
OFF No.2 antenna not connected
ON No.3 display unit connected 5
OFF No.3 display unit not connected
ON No.3 antenna connected 6
OFF No.3 antenna not connected
ON No.4 display unit conncted 7
OFF No.4 display unit not conncted
ON No.4 scanner connected 8
OFF No.4 scanner not connceted
・Setting of lower CCL-304R, SW12 (rada connection setting)
1 234
ON
OFF
5768
Radar Connection Setting
ON No.5 display unit connected
1
OFF No.5 display unit not conncted
ON No.5 antenna connected 2
OFF No.5 antenna not conncted
ON No.6 display unit conncted 3
OFF No.6 display unit not connected
ON No.6 antenna connected 4
OFF No.6 antenna not connected
ON No.7 display unit connected 5
OFF No.7 display unit not connected
ON No.7 antenna connected 6
OFF No.7 antenna not connected
ON No.8 display unit conncted 7
OFF No.8 display unit not conncted
ON No.8 scanner connected 8
OFF No.8 scanner not connceted
