JRC JMA-933B User Manual

1-8
1.3 System Diagram
NCD-2096
DISPLAY UNIT
NJU-84
PERFORMANCE
MONITOR
250V-MPYCYS-7
250V-TTYCS-1
KB-CHD152K
250V-TTYCS-1
18 CORES COMPOSITE CABLE
H-2695111153
MAX 18.0φ (JRC SUPPLY)
250V-TTYCS-4
H-2695110006 (JRC SUPPLY)
H-2668510019 (JRC SUPPLY) SPARE
250V-MPYC-4
250V-TTYCS-4
250V-TTYCS-4
GYRO
LOG
(NMEA 0183)
DGPS
VDR
RADAR
(INTER SWITCH)
ECDIS(JAN-901M)
ALERM MONITORING SYSTEM
(NEAREST APPROACH)
(POWER FAIL)
CONNING DISPLAY(JAN-701-CON)
AIS
0.6/1kV-DPYCY-6
0.6/1kV-DPYCYS-1.5
SHIP’S MAIN
AC100/220V,
50/60Hz,1φ,800VA
SHIP’S MAIN
for POWER FAIL ALARM
DC24V(BATTERY),1W
(5A)
NBL-175
SHIP’S MAIN
for HEATER
AC220V,50/60Hz,1φ
AC100V,50/60Hz
1φ,200W
CIRCUIT BREAKER
(SHIP YARD SUPPLY)
(WITH MON)
NKE-1139-1/2
SCANNER UNIT
14 CORES COMPOSITE CABLE
H-2695110056
MAX 23φ (JRC SUPPLY) 35m MAX
STEPDOWN
TRANSFORMER
NTG-3230
TRANSCEIVER-RECEIVER UNIT
14 CORES COMPOSITE CABLE
H-2695110056
MAX 23φ (JRC SUPPLY) 30m MAX
COAXIAL CABLE
HF-20D (JRC SUPPLY)
0.6/1kV-DPYCYS-1.5
HEATER OPTION

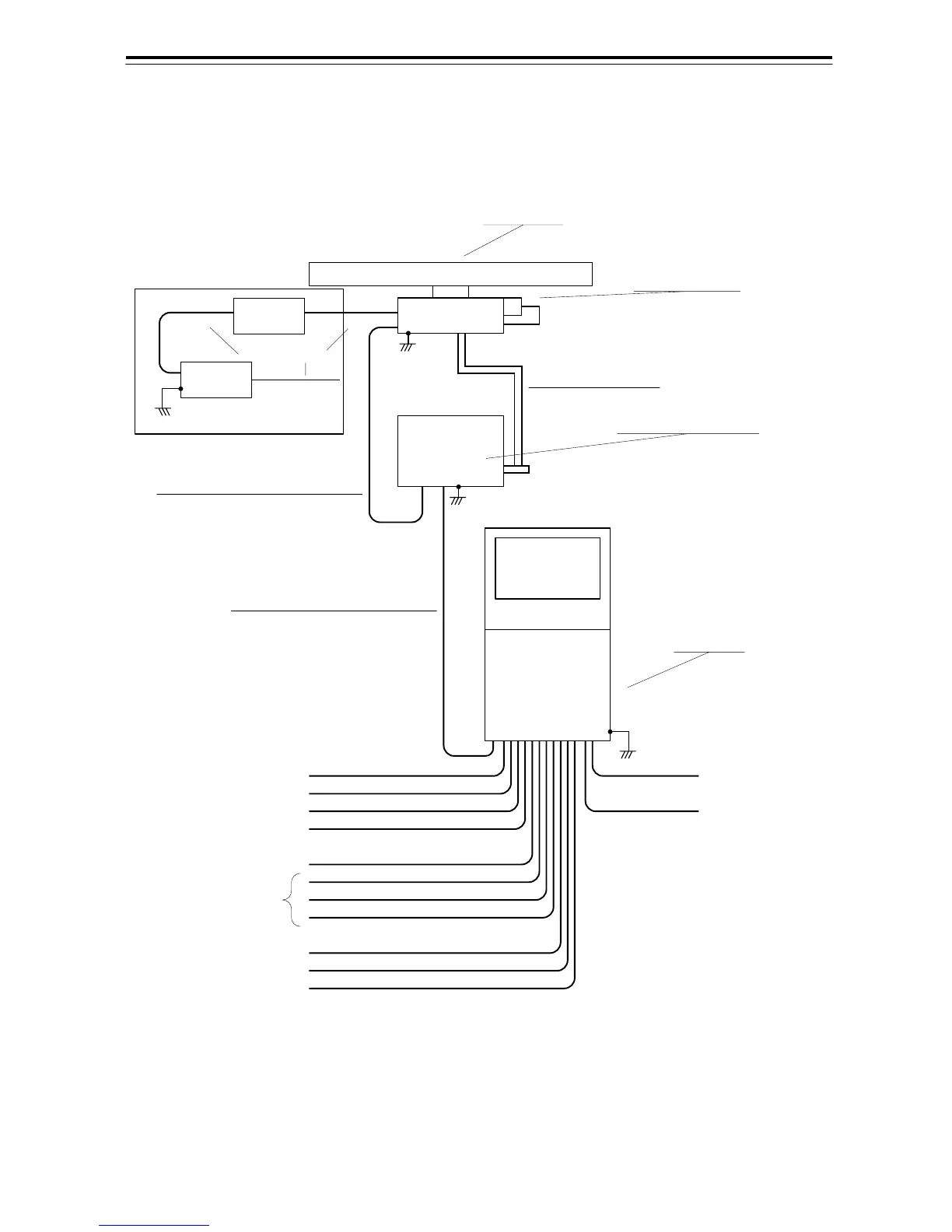

Fig 1-1 JMA-933B-SA System Diagram
