2-21
2.1.4 Connection to Terminals
A Terminal board circuit of a Display unit is no need for compressed terminal.
(Except Power Supply Cables of Scanner unit’s Motor.)
1) Turn the screw counterclockwise by Slotted screwdriver so as open the
cable inlet.
2) Insert strepped part of wire into cable inlet up to the dead end.
3) Turn the screw clockwise by Slotted serewdriver so as to tighten the cable.
4) After wiring, pull the cable lightly and confirm the cable is surelytightened.

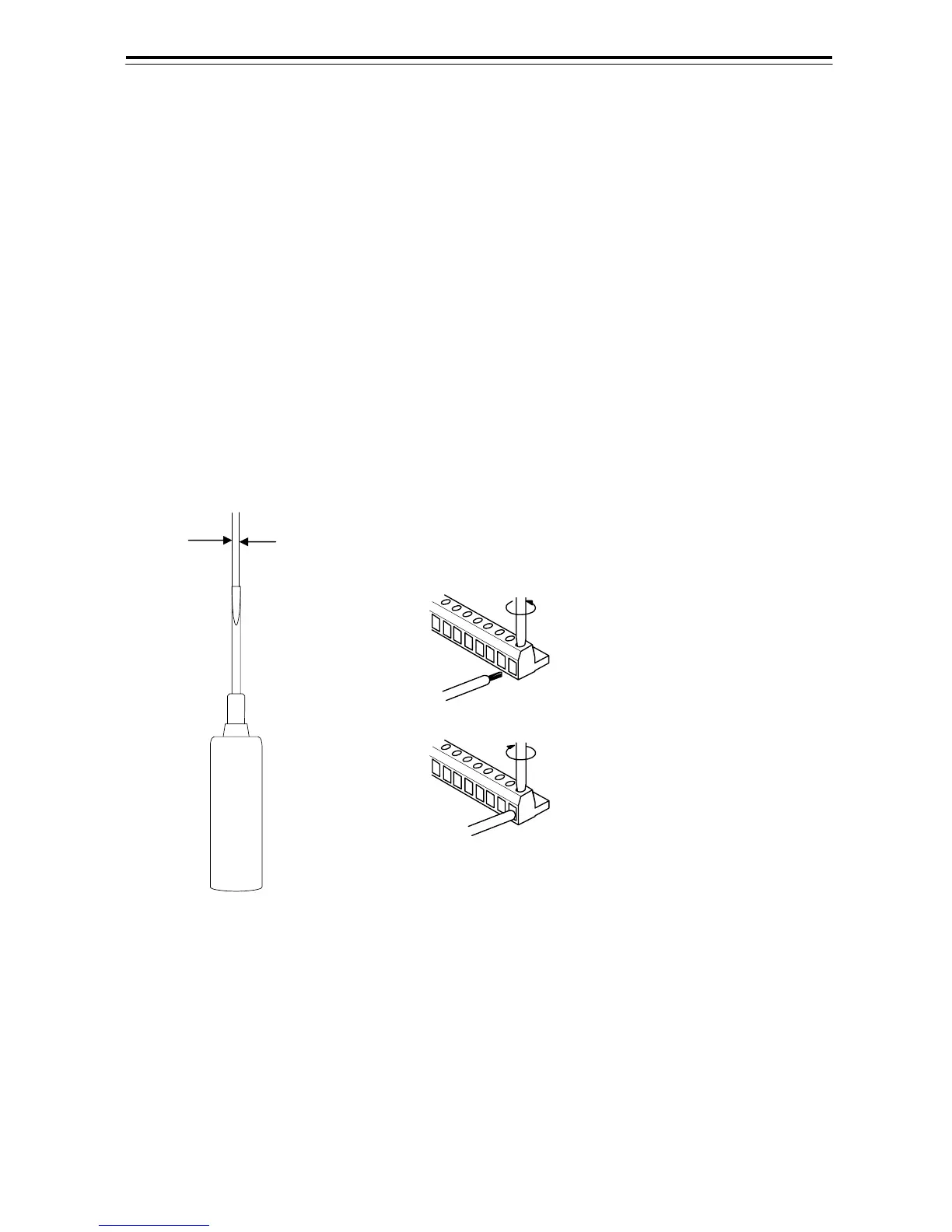

2.5mm
Proper Slotted Screwdriver
Insert the cable until bumping.
Pull the cable lighty and confirm the
cable is surely tightened.
Turn the screw counterclockwise by a Slottec
screwdriver so as to open the cable inlet
Turn the screw clockwise by the Soltted
screwdriver so as to tighten the cable.
To Next Page
