5-7

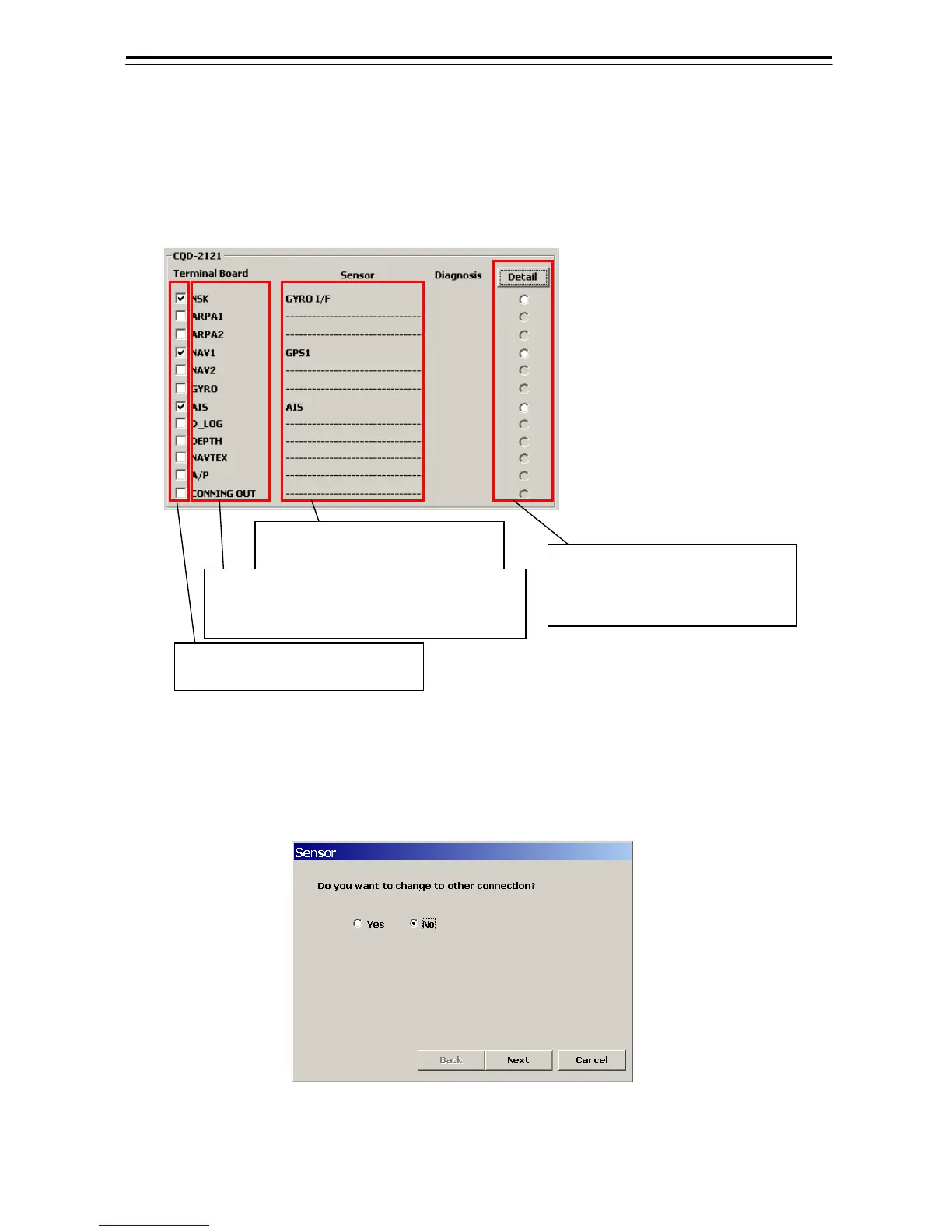

Of the terminal name of the terminal board specified in the column of "Terminal board" in the end of each
terminal board and the sensor name which is set, connecting is displayed in the column of "Sensor".
The one where a check is included in the check box on the terminal name left is set to connection on.
Also, when doing the confirmation and the setting change of the details about each terminal, Left-click
the [Detail] button after making the radio button of Detail on the right on.
ex)
When a sensor is already set, when left-clicking the [Detail] button of the above screen, the following
dialog is displayed.
・When changing setting: Make the radio button of Yes on and Left-click the [Next] button.
・When confirming setting: Make the radio button of No on and Left-click the [Next] button.
The terminal name to have been specified at
the terminal board in the CQD-2121 standard
terminal board.
The name of the sensor which was
connected with terminal board.
The one which a check is included
in sets to connection on.
Left-click the [Detail] button after
making a check on in the radio
button when confirmation/changing
for the details of the setting.
To Next Page
