NOTE: ELIMINATING THE INTERFERENCE ON FREQUENCIES USED FOR MARINE COMMUNICATIONS AND
NAVIGATION DUE TO OPERATION OF THE RADAR.
ALL CABLES OF THE RADAR ARE TO BE RUN AWAY FROM THE CABLES OF RADIO EQUIPMENT.
(ex. RADIOTELEPHONE, COMMUNICATIONS RECEIVER and DIRECTION FINDER. etc..)
ESPECIALLY INTER-WIRING CABLES BETWEEN SCANNER UNIT AND DISPLAY UNIT OF THE RADAR
SHOULD NOT BE RUN PARALLEL WITH THE CABLES OF RADIO EQUIPMENT.
(X-BAND 25kW RADAR)
NJU-85
PERFORMANCE
MONITOR
250V-MPYCYS-7
250V-TTYCS-1
KB-CHD152K
250V-TTYCS-1
18 CORES COMPOSITE CABLE
H-2695111153
MAX 18.0φ (JRC SUPPLY)
250V-TTYCS-4
H-2695110006 (JRC SUPPLY)
H-2668510019 (JRC SUPPLY) SPARE
250V-MPYC-4
250V-TTYCS-4
250V-TTYCS-4
GYRO
LOG
(NMEA 0183)
DGPS
VDR
RADAR
(INTER SWITCH)
ECDIS(JAN-901M)
ALERM MONITORING SYSTEM
(NEAREST APPROACH)
(POWER FAIL)
CONNING DISPLAY(JAN-701-CON)
AIS
0.6/1kV-DPYCY-6
0.6/1kV-DPYCYS-1.5
SHIP’S MAIN
AC100/220V,
50/60Hz,1φ,800VA
SHIP’S MAIN
for POWER FAIL ALARM
DC24V(BATTERY),1W
(5A)
NBL-175
0.6/1kV-DPYCYS-1.5
SHIP’S MAIN
for HEATER
AC220V,60Hz,1φ
AC100V,50/60Hz
1φ,100W
CIRCUIT BREAKER
(SHIP YARD SUPPLY)
0.6/1kV-DPYCYS-1.5
(WITH MON)
NKE-1129-91/92
SCANNER UNIT
STEPDOWN
TRANSFORMER
NTG-3225
TRANSCEIVER-RECEIVER UNIT
14 CORES COMPOSITE CABLE
H-2695110056
MAX 23φ (JRC SUPPLY)
35m MAX
FLEXIBLE WAVEGUIDE
FR-9 (JRC SUPPLY)
NDC-1444
PROCESS UNIT
NWZ-170-E
MONITOR UNIT
NCE-5163-F
OPERATION UNIT
H-7ZCRD1338
Power & Control Cable
ANALOG CABLE
KC-V5
CONTROL CABLE
7ZCRD1330A
POWER CABLE
5ZCGH00364
(JRC SUPPLY) max 5m
NCD-2096F DISPLAY UNIT
NQE-3167
POWER CONTROL
UNIT
14 CORES COMPOSITE CABLE
H-2695110056
MAX 23φ (JRC SUPPLY)
400m MAX
COAXIAL CABLE for VIDEO
RG-10/UY (JRC SUPPLY)
400m MAX
0.6/1kV-DPYCYS-1.5
0.6/1kV-DPYCY-6
SHIP’S MAIN
AC100/220V,
50/60Hz,1φ,400VA
注） レーダーの動作が他の無線装置に、雑音妨害を与えることを防止するために、レーダーケーブルを他の無線
装置のケーブルから極力離して敷設して下さい。特に、空中線ケーブルを他の無線装置のケーブルと平行に
敷設しないで下さい。
OPTION
14 CORES COMPOSITE CABLE
H-2695110056
MAX 23φ (JRC SUPPLY)
30m MAX

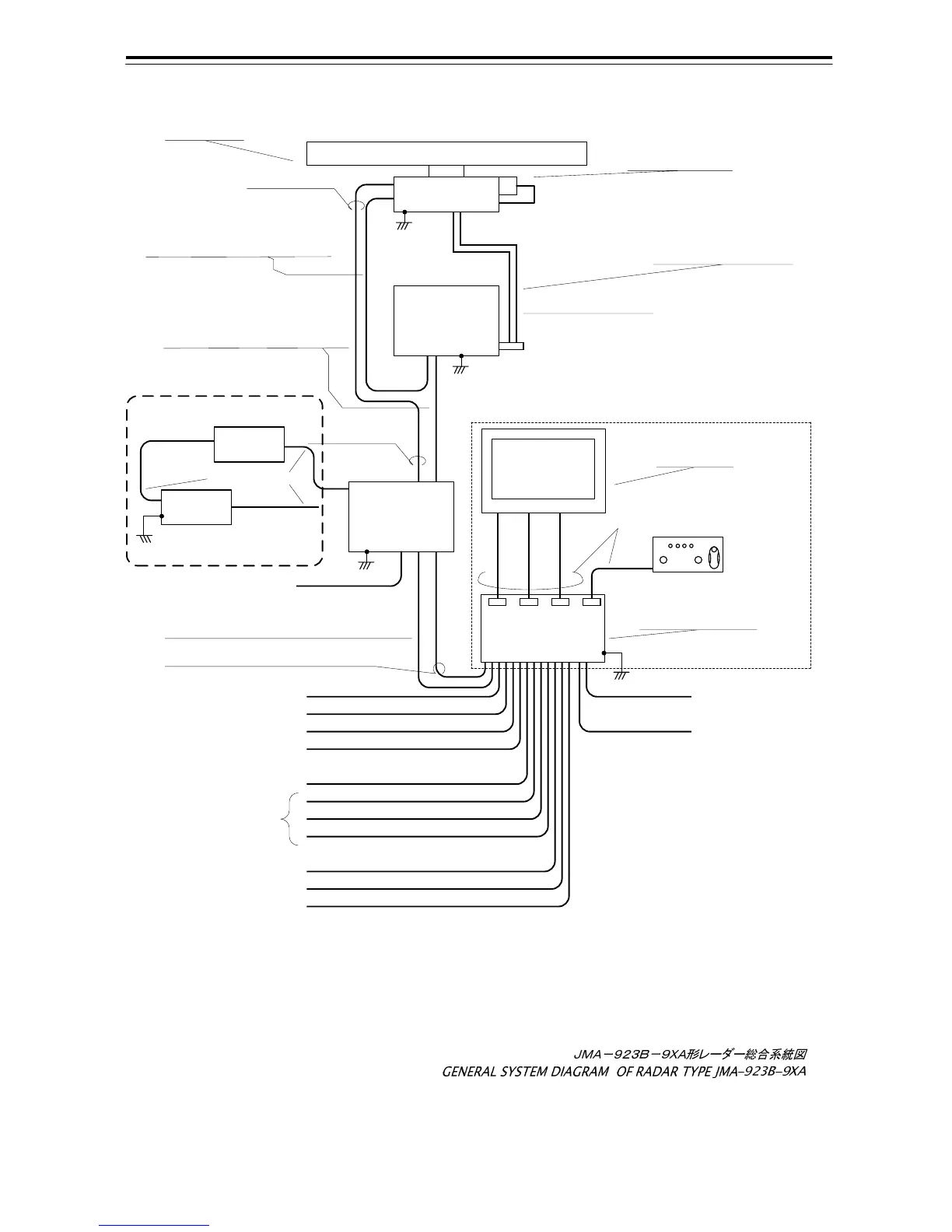

Fig 6-27: JMA-923B-9XA (NQE-3167) desktop
