3-7

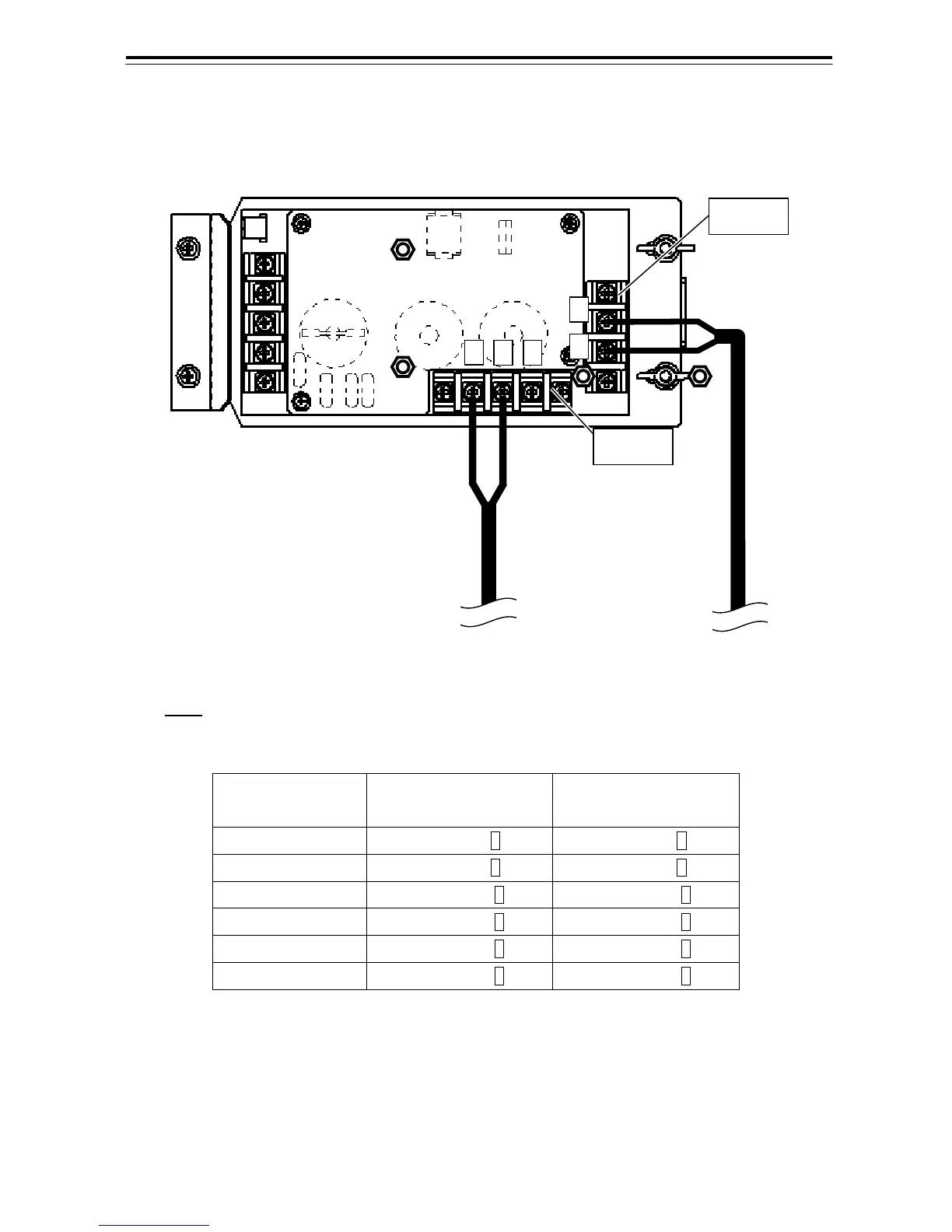

2) Confirm that the braker of the main power is turned off, and then connect the power cable to TB801 U
and V on the Filter Unit.
Note:
The input powr supply of Display Unit changes by Model of connected Scanner Unit.
Confirm the Model of Scanner Unit and input power supply of Display Unit.
Radar Model
Scanner Unit Model of
AC100-115V
Scanner Unit Model of
AC220-240V
JMA-933B-SA NKE-1139-1 NKE-1139-2
JMA-932B-SA NKE-1130-1 NKE-1130-2
JMA-923B-7XA NKE-1129-71 NKE-1129-72
JMA-923B-9XA NKE-1129-91 NKE-1129-92
JMA-922B-6XA NKE-1125-61 NKE-1125-62
JMA-922B-9XA NKE-1125-91 NKE-1125-92
WV
U
YCBD-1832 Filter Unit
TB801
AC Power Line
－
＋
TB802
DC Power Line
To Next Page
