FX-1/FX-1R Maintenance Manual
12-3-3. Replacing the LCD back light

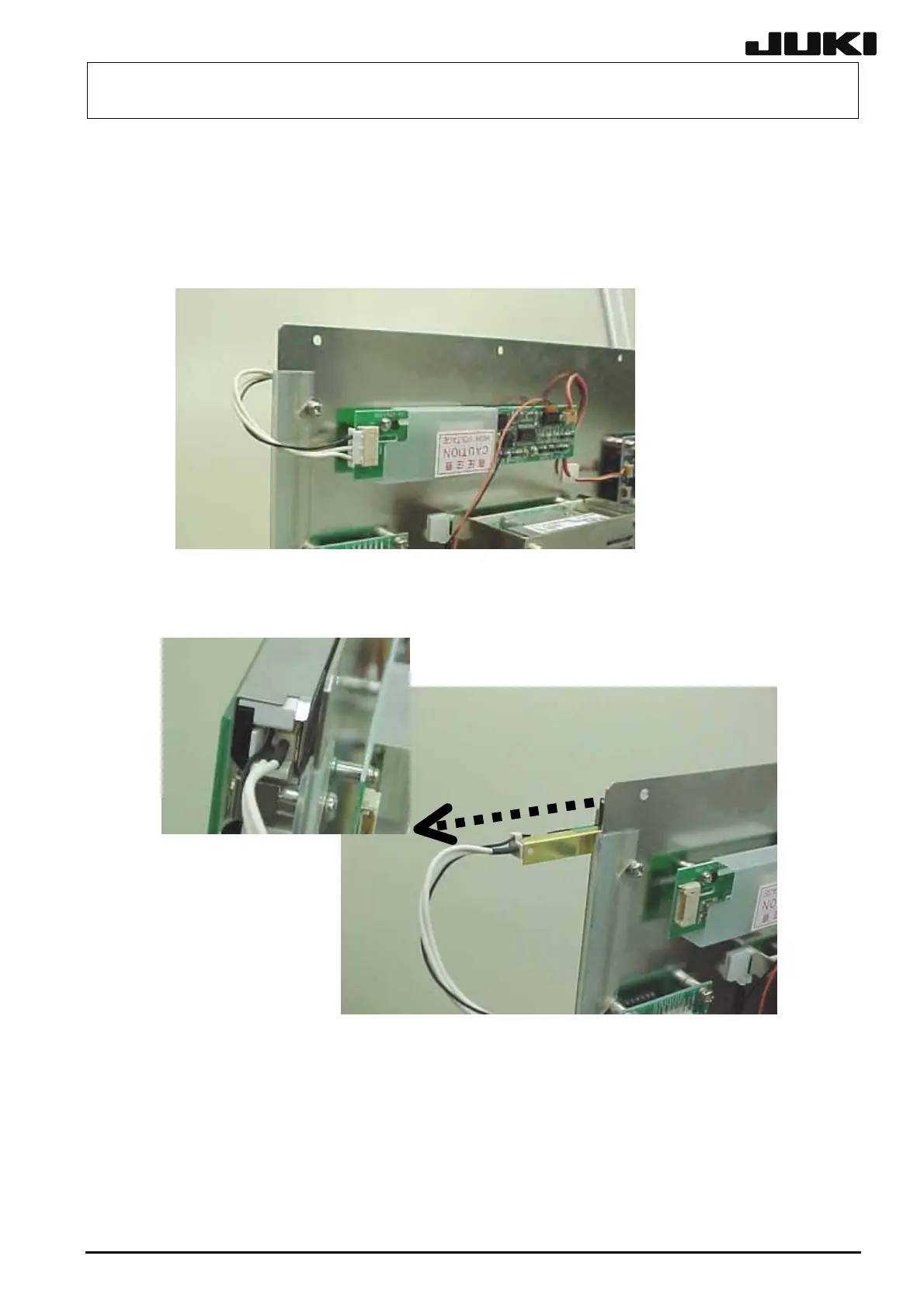

Follow the steps below to replace the LCD back light.
L877E321000 LCD back light
(1) Disconnect the connector.
(2) Hold the claw fixing the back light to pull out the back light.
At this time, pay special attention so that the cold-cathode tube is not touched by bare hand.
(3) Reassemble the components in the reverse order of disassembly.
12-5
Rev. 2.00
