FX-1/FX-1R Maintenance Manual

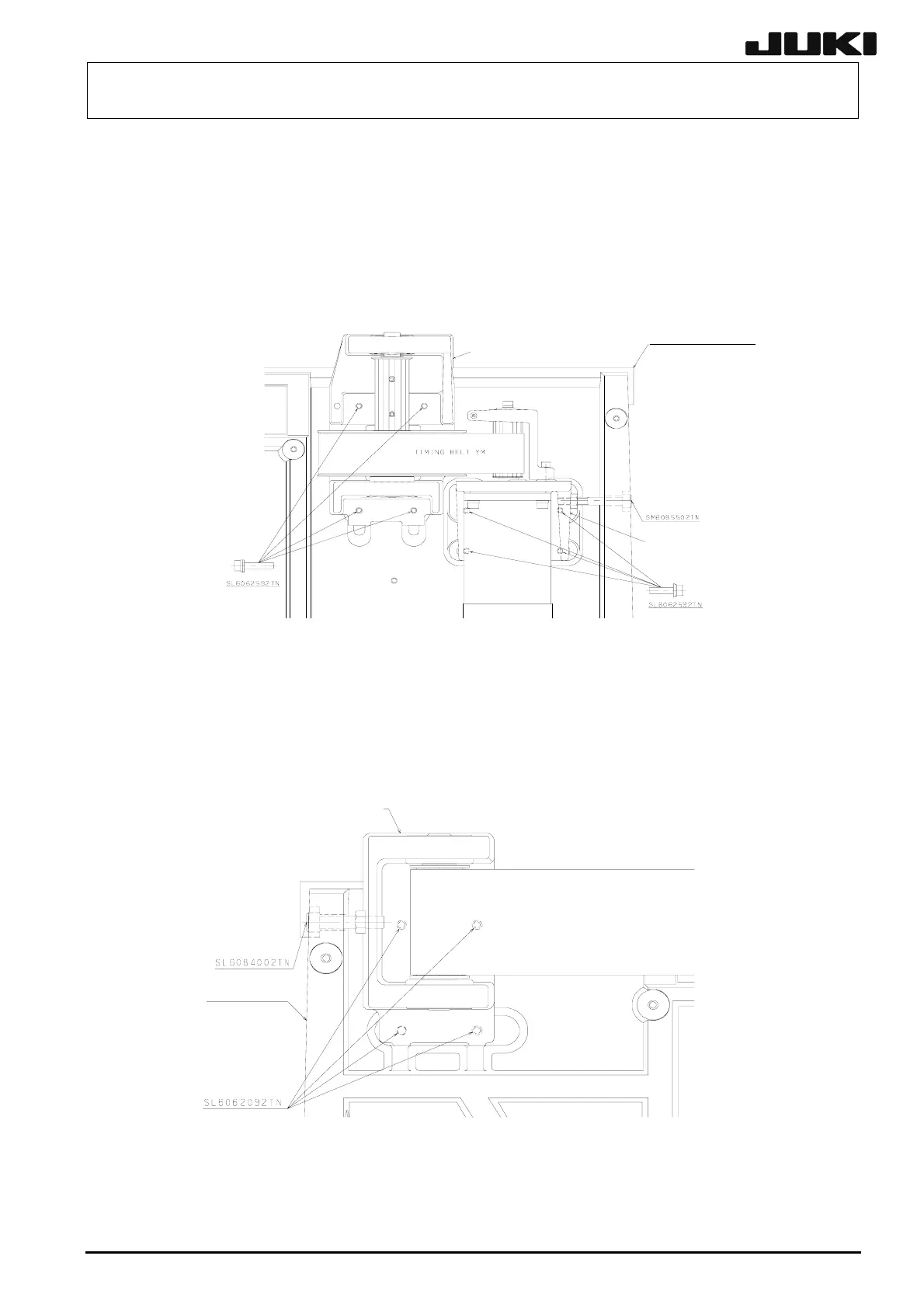

1-1-5. Adjusting Method
(1) Timing belt YM
1. Loosen the SL6062592TN fixing the YB-motor bracket.
2. Adjust the tension using the SM6085502TN.
3. Tighten the SL6062592TN firmly
YBL-MOTOR ASM: L808E3210A0
YBR-MOTOR ASM: L808E2210A0
YA-PULLEY BRACKET L ASM:
L142E0210A0
YA-PULLEY BRACKET R ASM:
L142E1210A0
Chassis, Y-axis frame
Figure 1-1-5-1
(2) YB belt
1. Loosen the SL6062092TN fixing the YB-pulley bracket.
2. Adjust the tension using the SM6084002TN.
3. Tighten the SL6062092TN firmly
YB-BELT: 40000732
YB-PULLEY BRACKET L ASM: L140E4210A0
YB-PULLEY BRACKET L ASM: L140E5210A0
Chassis, Y-axis frame
Figure 1-1-5-2
1-4
Rev. 2.00
