FX-1/FX-1R Maintenance Manual
 DANGER
To prevent any trouble caused by accidental machine start, always
shut-down the power before starting the maintenance and
adjustment work.
[1] X-Y UNIT
1-1. Replacing the Timing Belt and Adjusting the Belt Tension
1-1-1. Timing Belt YM
(1) Remove the pulley cover.
(2) Remove the timing belt YB. (See section 1-1-2.)
(3) Loosen the SL6062592TN.
(4) Loosen the tension of the timing belt YM using the SM6085502TS.
(5) Loosen the SL6062592TN and replace the YA-pulley bracket assembly.
(It is impossible to replace only the timing belt YM. Always replace the YA-pulley bracket
assembly.)
∗
Apply Loctite 277 to the SL6062092TN fixing the YB-belt joint and tighten it firmly.
(6) Reassemble the components in the reverse order of disassembly. Adjust the tension levels of
the timing belt YM and YB-belt.
(See the adjustment procedure on page 1-3.)
YBL-MOTOR ASM: L808E3210A0
YBR-MOTOR ASM: L808E2210A0
Chassis, Y-axis frame
YA-pulley bracket
bly assem
YA-PULLEY BRACKET L ASM:
L142E0210A0
YA-PULLEY BRACKET R ASM:
L142E1210A0

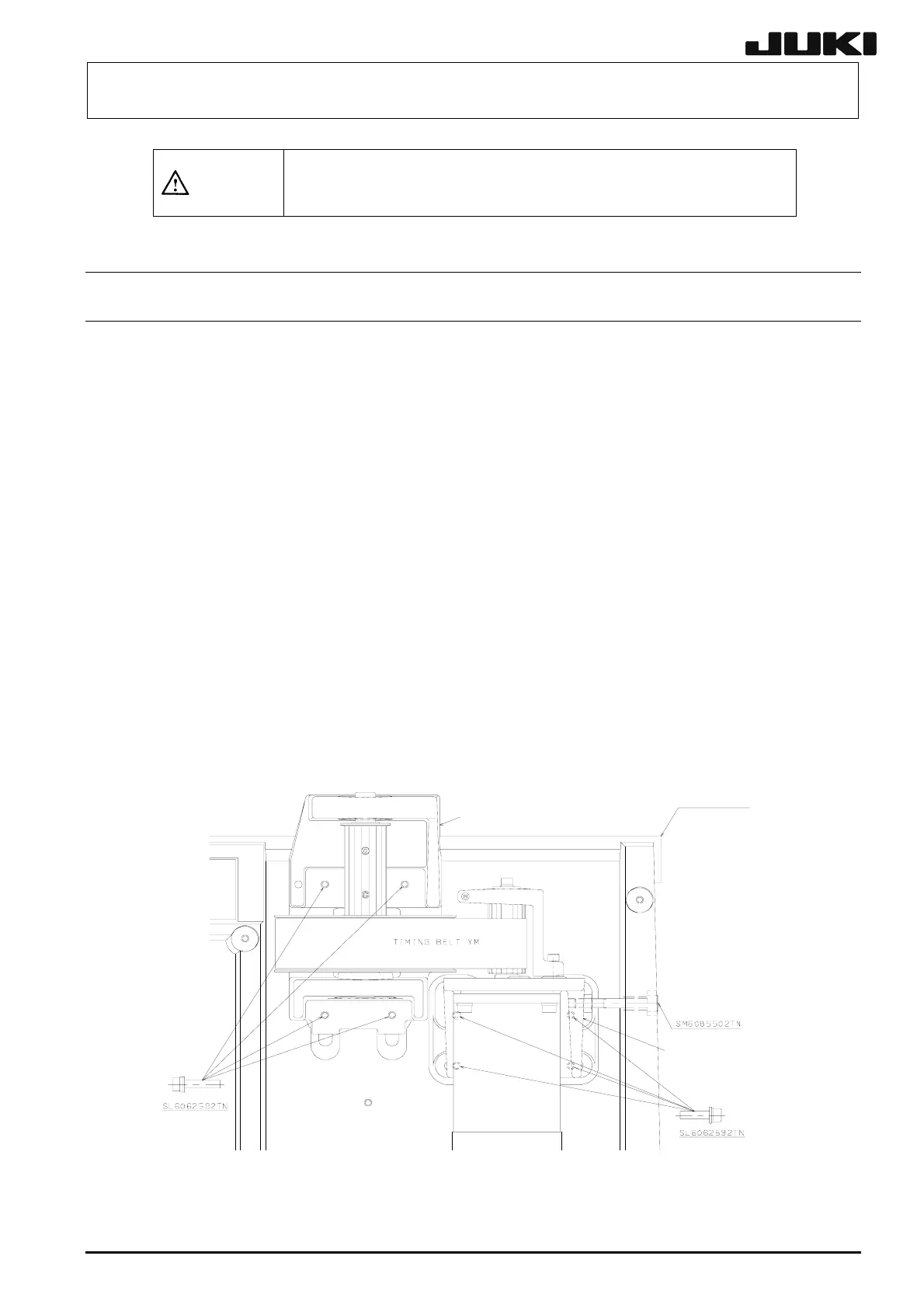

Figure 1-1-1-1
1-1
Rev. 2.00
