FX-1/FX-1R Maintenance Manual

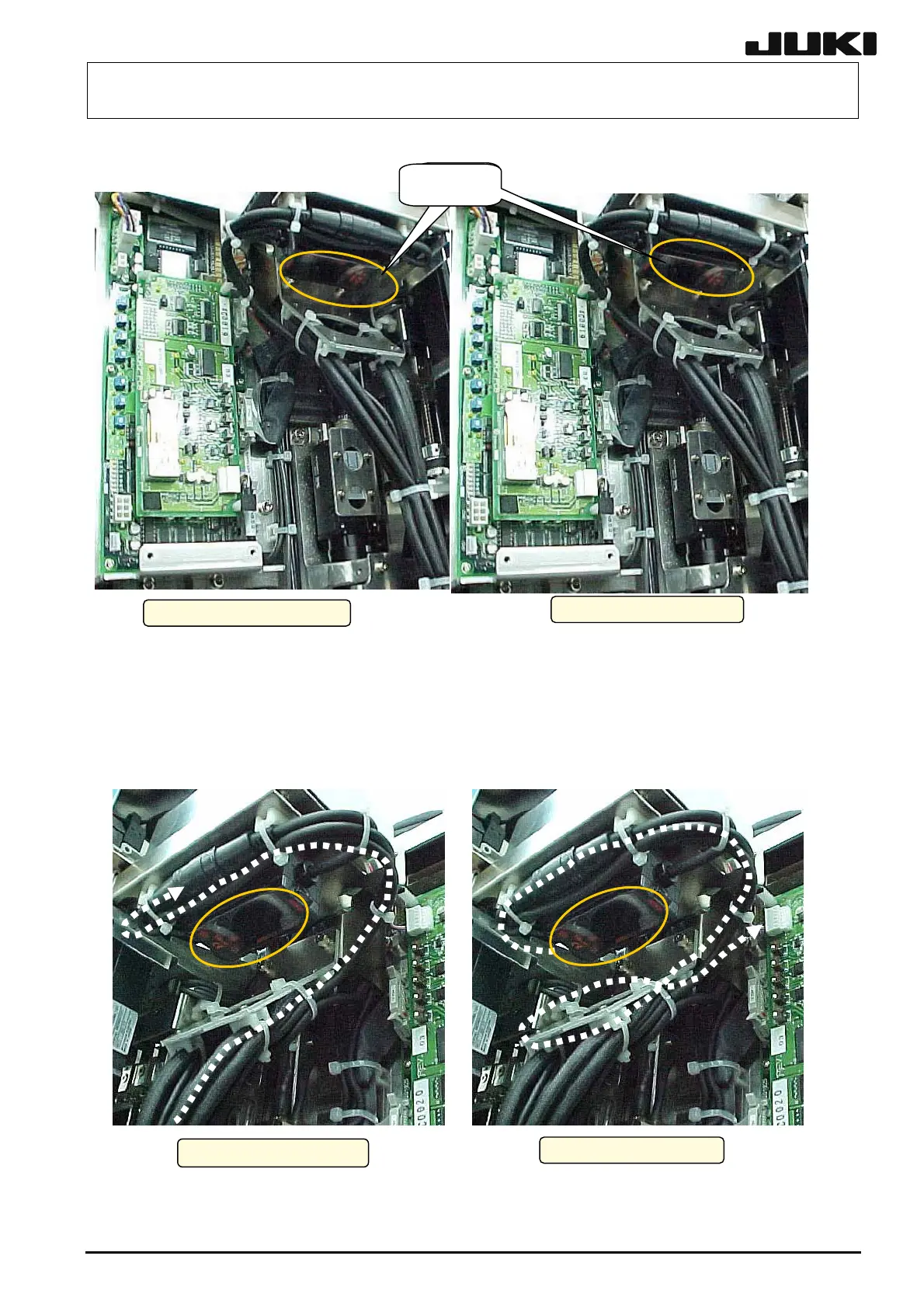

{ Left head
アンプ
A
mplifie
r
From amplifier to board
From sensor to amplifier
 Since the cable from the amplifier is long, round it appropriately as shown in the Photo above to
run it.
Carefully run the cables so that any excessive stress is not applied to the cables.
{ Right head
3-8
From sensor to amplifier
From amplifier to board
 Run the cables in the same manner as described for the left head.
Rev. 2.00
