FX-1/FX-1R Maintenance Manual
(5) Adjust the sensor dog position
When opened. → The OPEN sensor is turned ON at a position where is 1 mm before the slide
plate is opened.
When closed. → The CLOSE sensor is turned ON at a position where is 1 mm before the
slide plate is closed.
Note 1) After the position has been adjusted, fix the sensor dog with the SEMS cap bolt.
Note 2) The nut must be tightened with a torque of 1.3 N
⋅
m.
Sensor detection
position
1mm
SEMS cap bolt
Sensor
Sensor dog

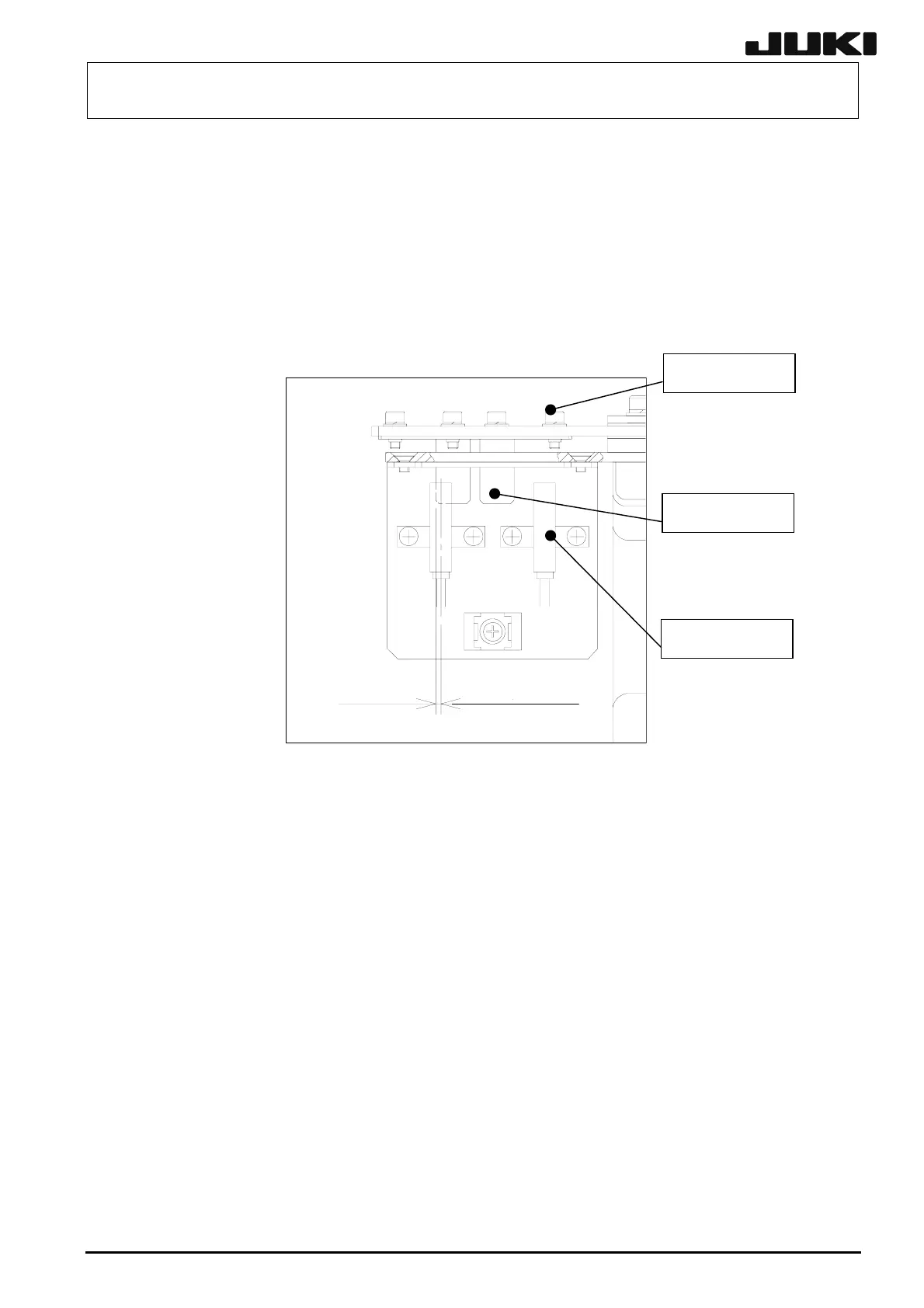

Figure 7-1-3 Adjustment of the Sensor Dog
7-3
Rev. 2.00
