FX-1/FX-1R Maintenance Manual

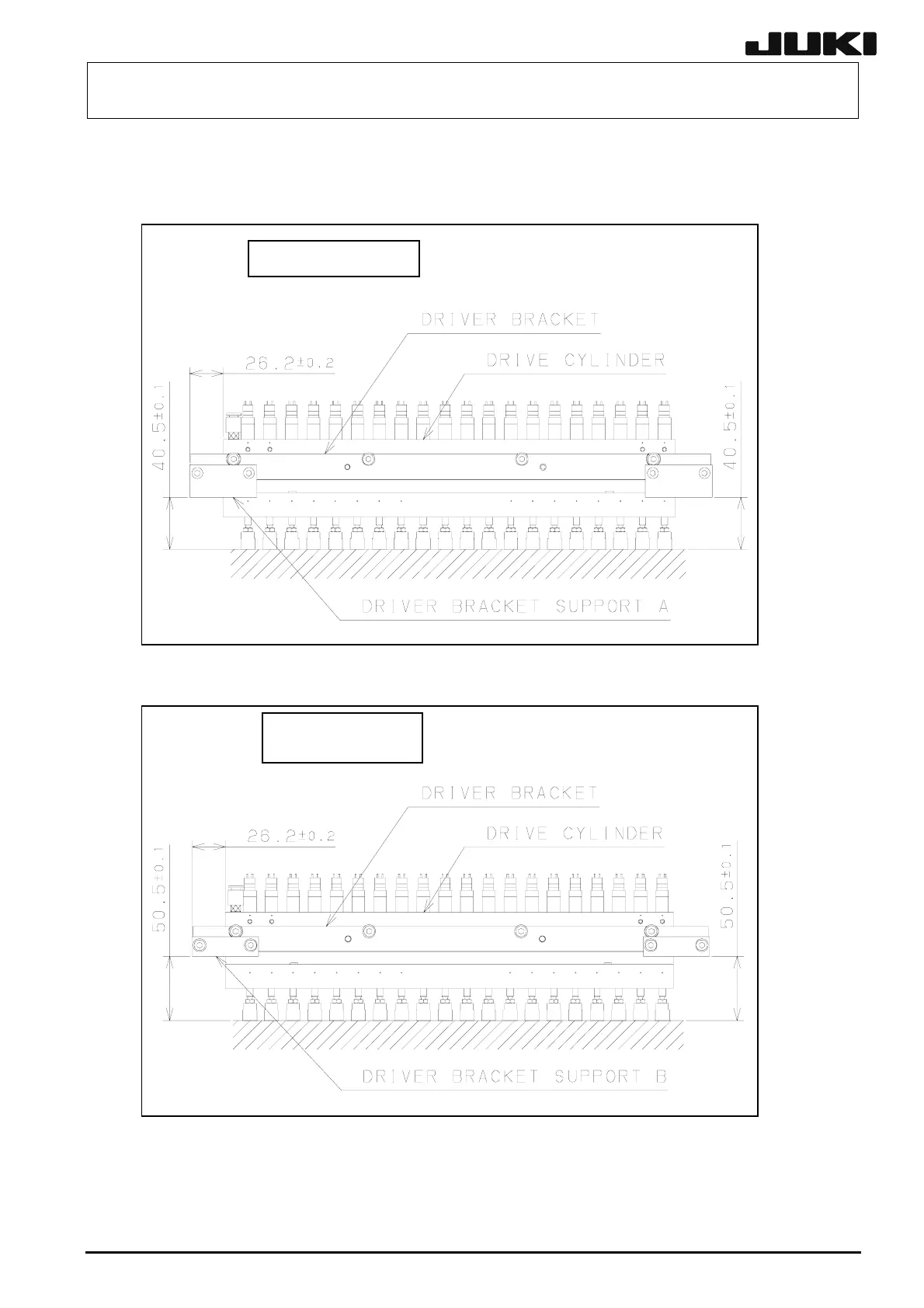

(5) Replace the drive cylinders with new ones and put them upside down as shown in Figure 8-2-3.
<CAUTION> Carry out this work on the leveled table or the top surface of the bank.
Standard specification
Figure 8-2-3
Replacement table
trolley specification
Fi
g
ure 8-2-4
8-3
