5.6 Shifting the setpoint
Shifting the
profile

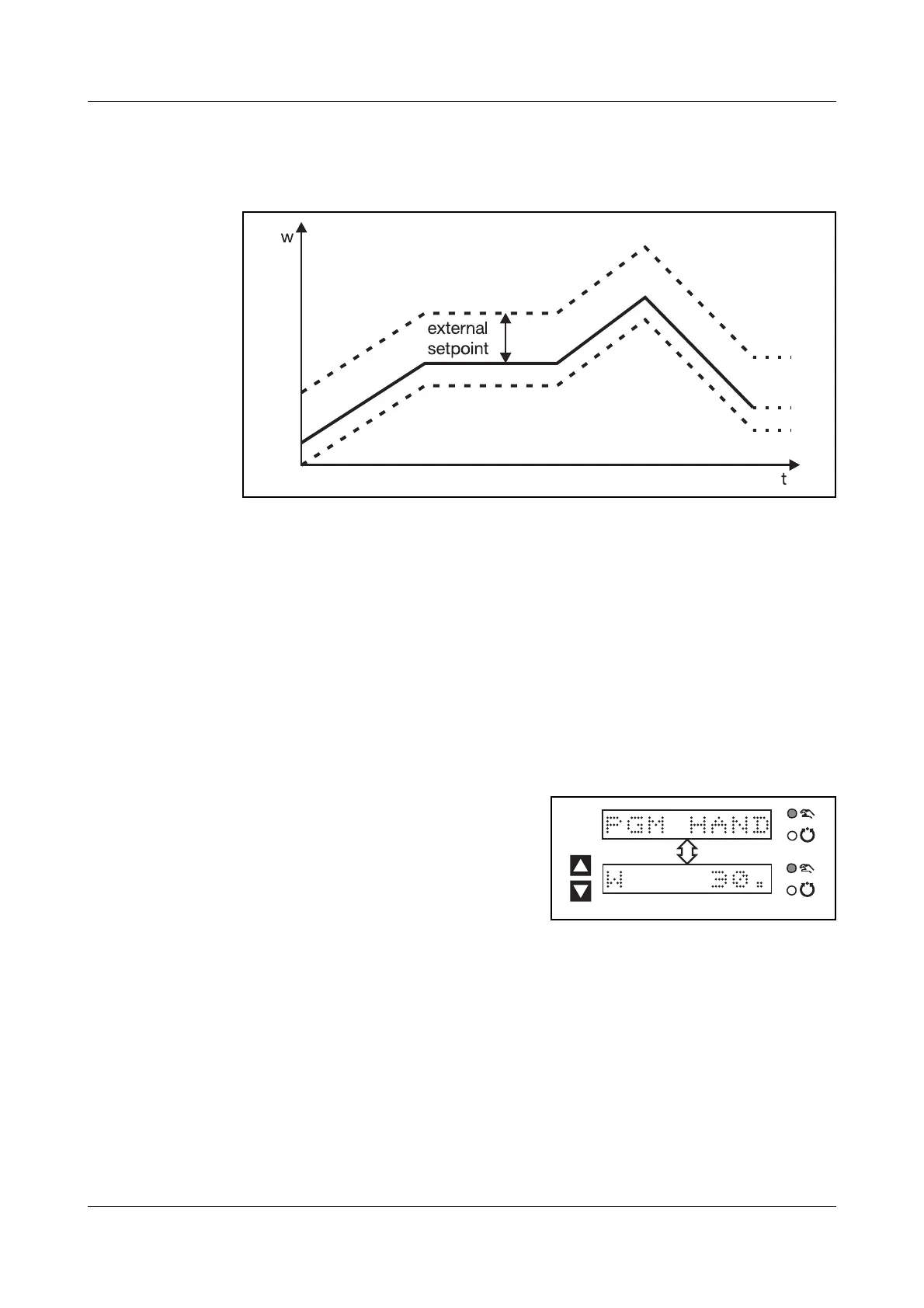

Using the “external setpoint with correction” function, the profile can be shift-
ed upwards or downwards by the amount of the analogue input.
The external setpoint is provided via one analogue input or through mathemat-
ics.
Relevant
settings
Configuration level 1 r Controller r Controller inputs
Configuration level 1 r Inputs r Analogue input 1—4
Configuration level 1 r Maths/Logic r Mathematics 1+2
5.7 Altering setpoints
In each operating mode, the setpoint can also be altered directly from the
keys.
Example:
h Alter setpoint in the manual mode
with I and D ;
shift decimal point with
E + I und E + D
(The entry is documented in the
matrix display)
