14.2 Setup program with commissioning software
Setup program A setup program for Windows
®
NT4.0/2000/XP/Vista/7 (32/64 bit) is available
for easy configuration of the profile controller.
Hardware requirements:
- 512 Mbyte RAM - CD-ROM drive
- 50 Mbyte available on hard disk - 1 free serial interface or USB interface

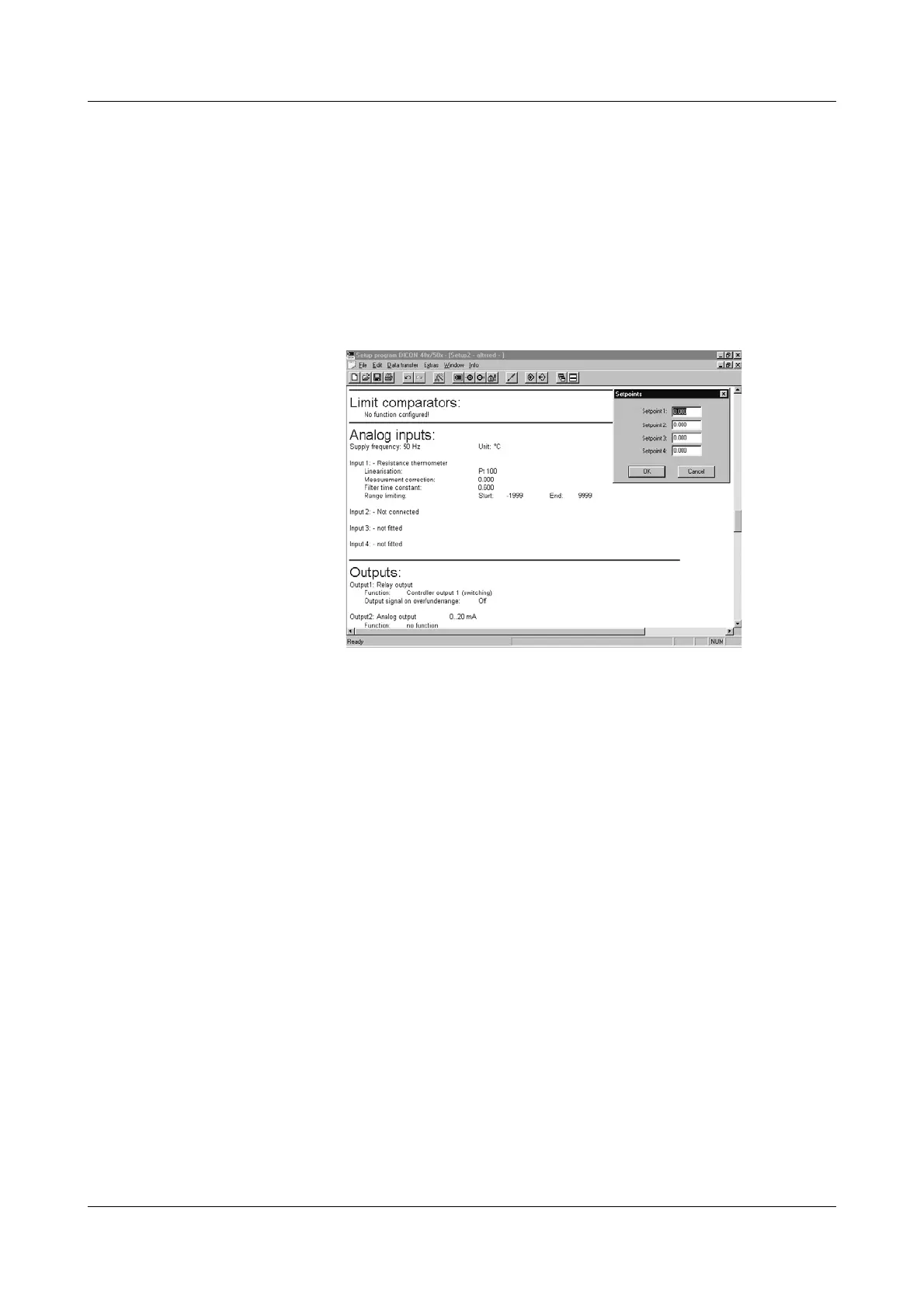

The program shows the current configuration as a list in the background. The
corresponding entry template is called up by double-clicking on the list, or via
the menus.
Some functions of the profile controller can only be configured via the setup
program:
-Customized linearisation (input of a linearisation table)
-Display brightness of display 3
- Switching off code request (expanded configuration)
-Configuring relay module
-Modifying passwords
-Profile program selection only via one logic input
-Profile program table (any profile program with corresponding start times
and conditions can be allocated to 10 program positions, and can then be
run through in sequence).
-System states
-Controller active in basic status
Commissioning
software
The commissioning software is a part of the setup program and is available for
adapting the controller to the control loop, optimally and conveniently.
Different process variables (e.g. setpoint, process value, control deviation, si-
gnals from the controller outputs) can be displayed graphically. The controller
parameters can be altered and transferred to the profile controller via the
setup/RS422/485 interfaces.
Data recording is limited to 48 hours.
