35
7 Profile program editor
7.1 General
10 profile programs with up to 100 segments can be programmed; a total of
100 segments can be implemented.
Profile programs are defined by programming setpoints and segment times or
gradients segment by segment.
The type of instrument programming (setpoint/segment time or setpoint/gradi-
ent) can be configured and applies to the entire programming procedure.
When creating profile programs via the setup program, the programming type
can be selected for each segment.
In addition, the states of the operating contacts 1 — 8 and the active parame-
ter set can be defined for each segment.

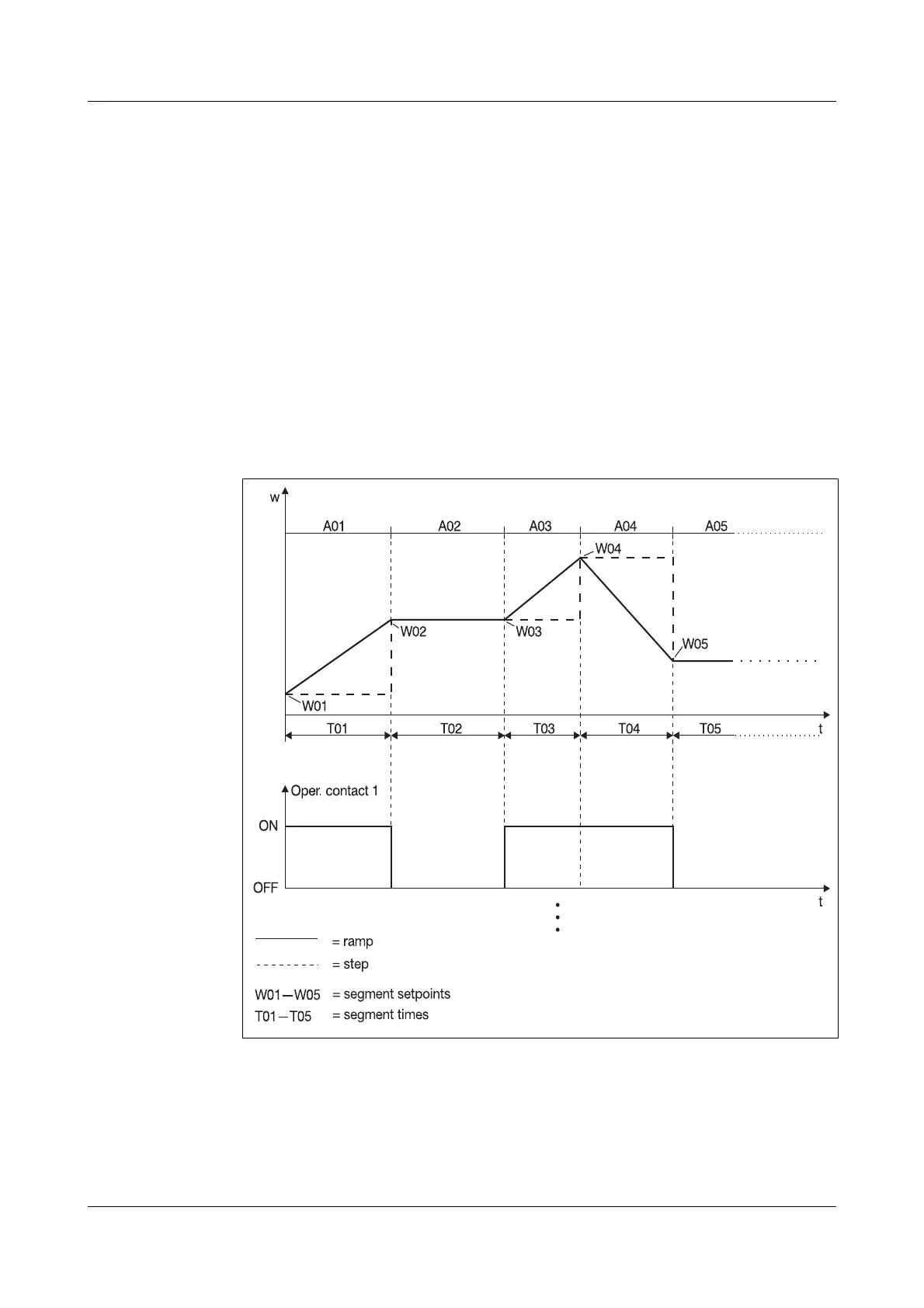

The setpoint profiles can be output as ramps or steps (configurable).
The following diagrams show the output in the form of ramps.
Section 10.5 “Profile controller”
