1 Introduction
1.1 Description
This series of universal, freely configurable profile controllers/profile genera-
tors is available in the formats 96mm x 96mm and 96mm x 48mm (portrait
and landscape format). The instruments feature two 4-digit 7-segment dis-
plays, five or eight LEDs for indicating the switching status and the operating
modes, an 8-digit matrix display, as well as six keys for operation and configu-
ration.
The user has flexibility in assigning the instrument slots, in accordance with
the block structure.
10 profile programs with up to 100 segments can be programmed; a total of
100 segments can be implemented.
Additional functions include self-optimisation, parameter set switching, a real-
time clock, up to eight limit comparators and a maximum of eight operating
contacts. Linearisation for the usual transducers are stored in the memory,
and a customized linearisation table can be programmed. The instruments can
be adapted to the most diverse tasks with the aid of a maths module. The in-
struments can be integrated into a data network via a serial interface, or they
can be expanded through an external relay module. A setup program with a
program editor is available for easy configuration from a PC.
The electrical connection is at the rear by screw terminals.

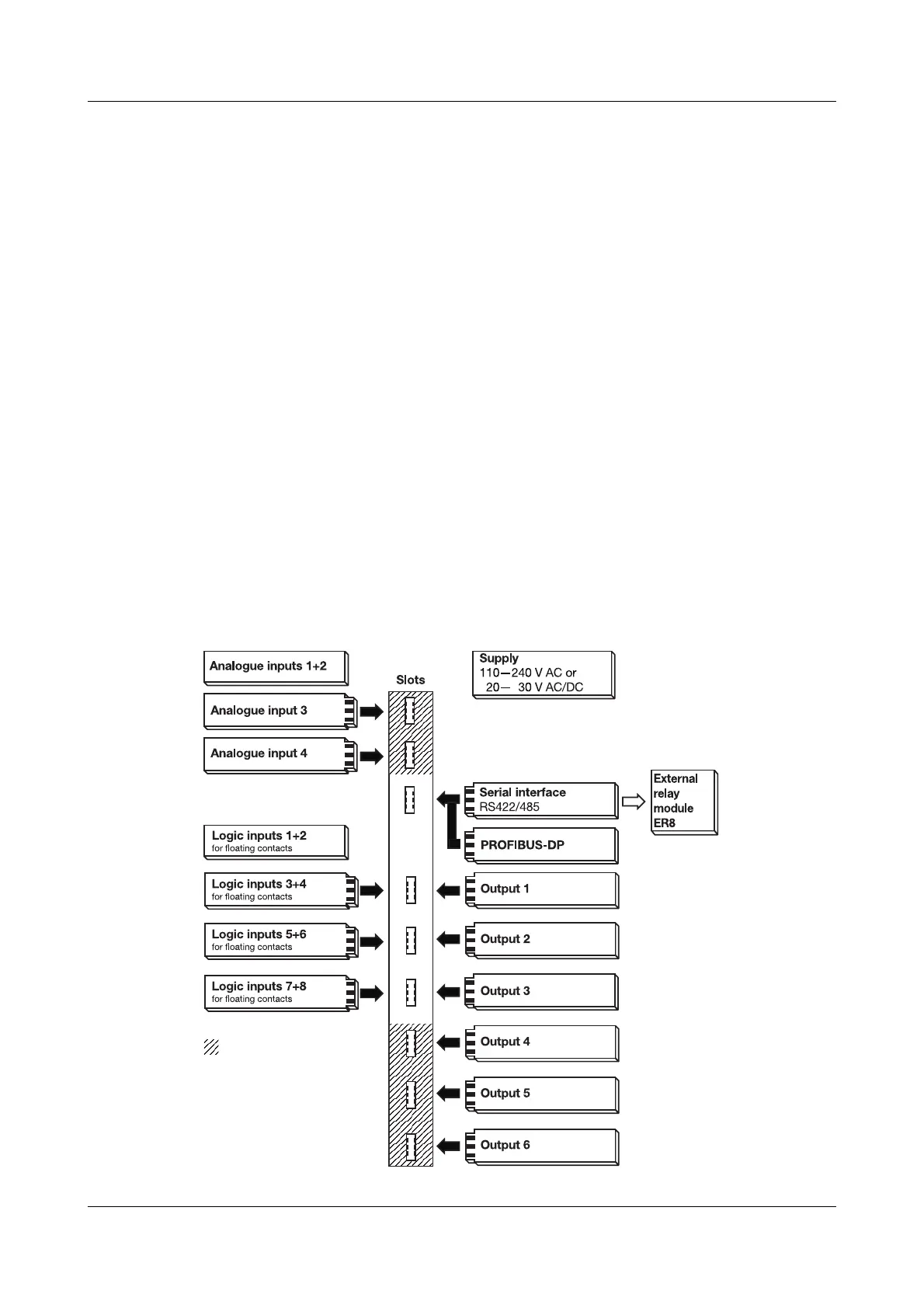

1.2 Block structure
Type 703580 only
Analogue inputs:
- Resistance thermometer
- Thermocouples
- Standard signals
- Potentiometer
Outputs:
- Relay
- Solid-state relay
- Logic output 5V
- Logic output 22V
- Analogue output
- Supply for
2-wire transmitter
