63
10 Configuration level 1

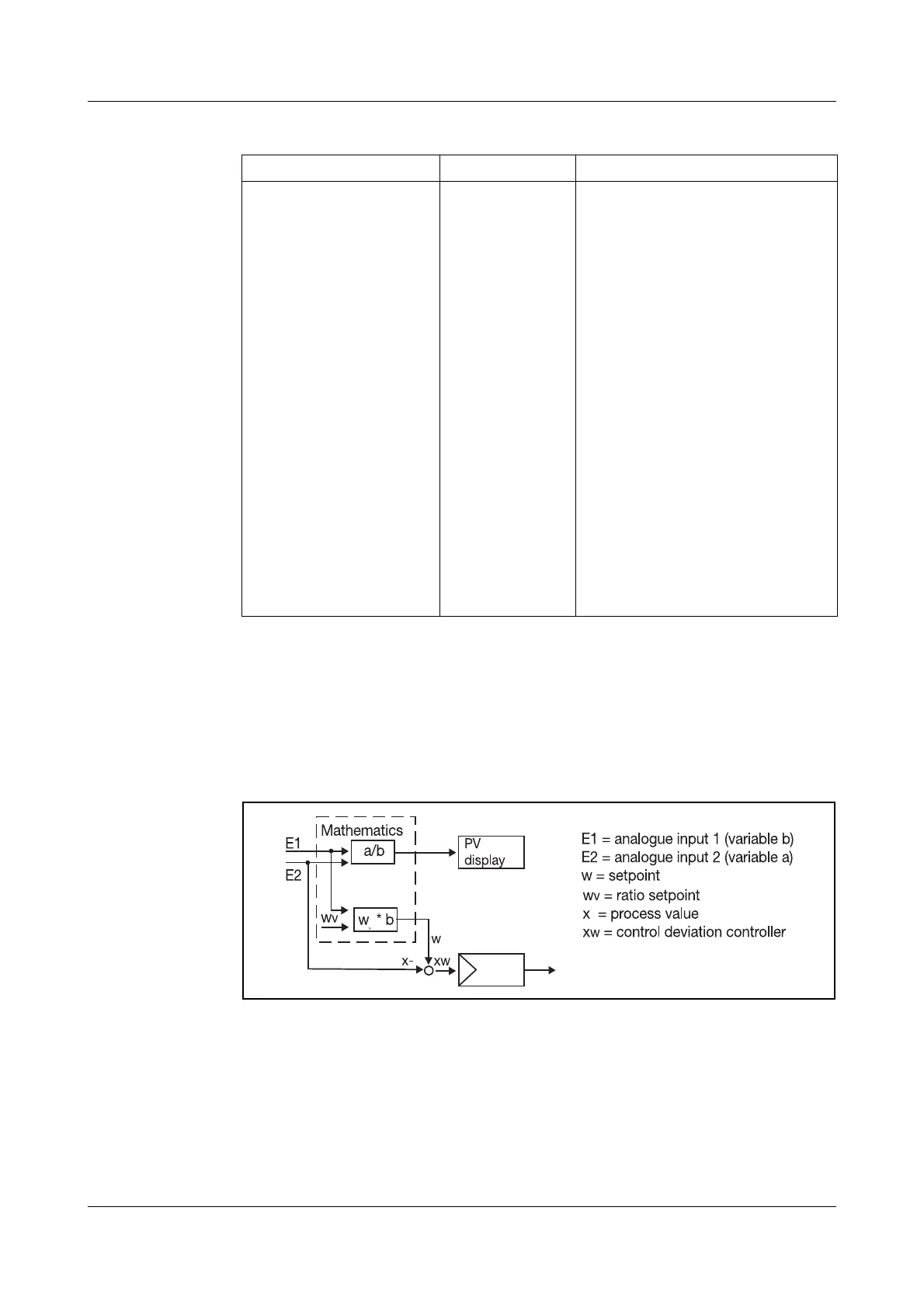

Ratio control The control is always based on variable a.
The maths module forms the ratio of the measurements a and b (a/b) and pro-
vides the setpoint for the controller. The ratio of the measured values a and b
can be called up and displayed via the functions “Maths 1” or “Maths 2”.
The required ratio a/b is programmed in the setpoint input as setpoint (ratio
setpoint).
Humidity
control
The humidity controller receives the process value from a psychrometric hu-
midity probe through the mathematical linkage of wet bulb and dry bulb tem-
peratures.
Variable a - dry bulb temperature
Variable b - wet bulb temperature
Linearisation ➔ LINTAB LINEAR
PT100
PT1000
PT500
PT50
CU50
KTY
PTK9
NI100
TC TPE J
TC TPE E
TC TPE K
TC TPE N
TC TPE T
TC TPE B
TC TPE R
TC TPE S
TC TPE U
TC TPE L
CUST LIN
W5RE W26
W3RE W25
W3RE W26
linear
Pt 100
Pt 1000
Pt 500
Pt 50
Cu 50
KTY21-6
Pt K9
Ni 100
Fe-Con J
NiCr-Con E
NiCr-Ni K
NiCrSi-NiSi N
Cu-Con T
Pt30Rh-Pt6Rh B
Pt13Rh-Pt R
Pt10Rh-Pt S
Cu-Con U
Fe-Con L
customized linearisation
W5Re-W26Re
W3Re-W25Re
W3Re-W26Re
CONFIG 1 ➔ MATHSLOG ➔ MATHS 1
Parameter Value/selection Description
Factory settings are shown bold.
