10 Configuration level 1
68

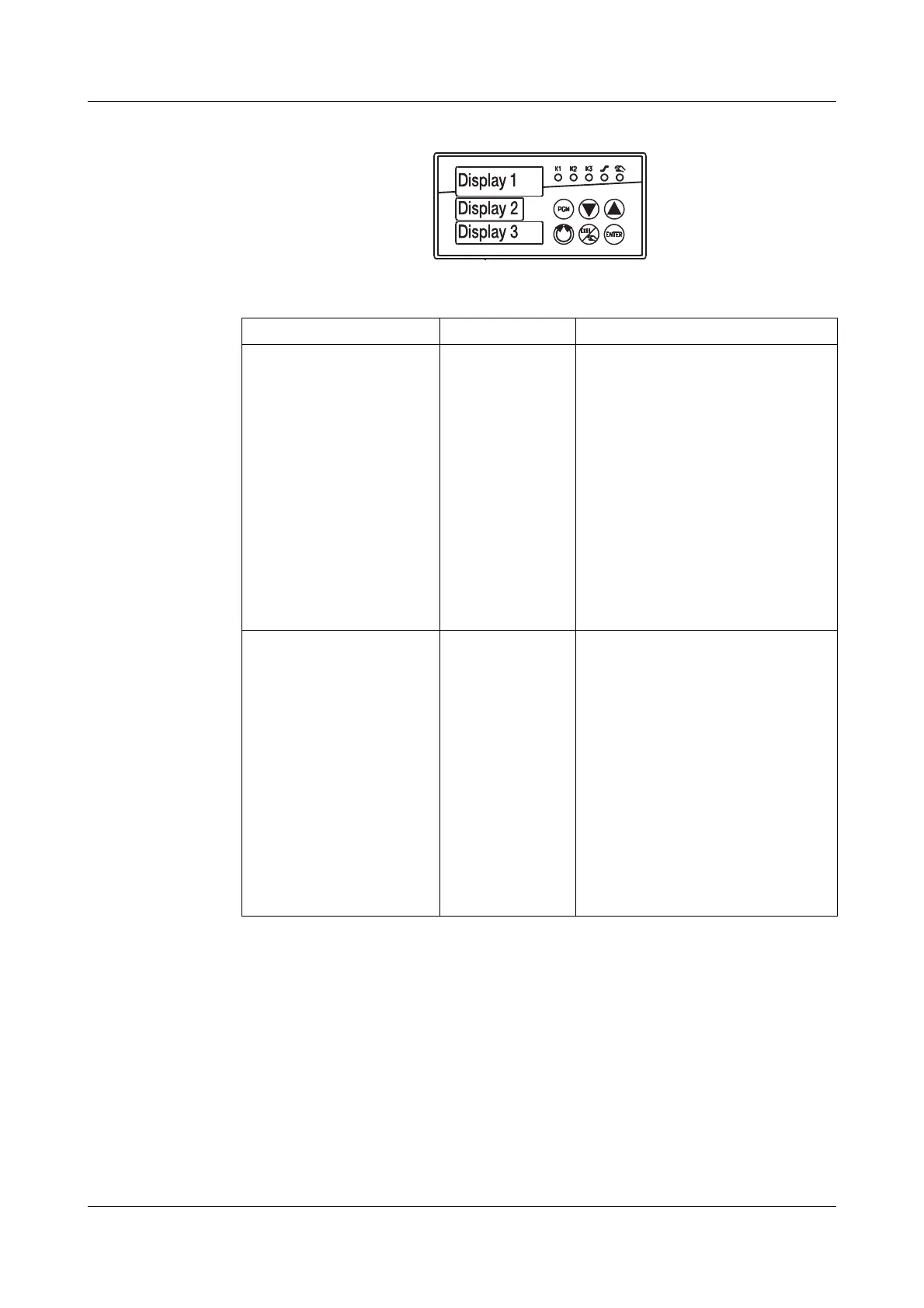

Arrangement of
the displays
CONFIG 1 ➔ DISPLAY ➔ DSPCONF1
Parameter Value/selection Description
Display 1
Display value
Decimal point
➔ DISPLAY1
➔ DISPLVAL
➔ DECPOINT
NO FUNCT
ANALOG 1
...
ANALOG 4
MATHS 1
MATHS 2
PV
SETPOINT
RAMPENDV
CNTRLDEV
OUTPUT
VALDISPL
XXXX.
no function
analogue input 1
...
analogue input 4
mathematics 1
mathematics 2
process value
setpoint (present)
ramp end value
control deviation
output
display of a storage address value
XXXX.— X.XXX
Display 2
Display value
Decimal point
➔ DISPLAY2
➔ DISPLVAL
➔ DECPOINT
NO FUNCT
ANALOG 1
...
ANALOG 4
MATHS 1
MATHS 2
PV
SETPOINT
RAMPENDV
CNTRLDEV
OUTPUT
VALDISPL
XXXX.
no function
analogue input 1
...
analogue input 4
mathematics 1
mathematics 2
process value
setpoint (present)
ramp end value
control deviation
output
display of a storage address value
XXXX.—X.XXX
Factory settings are shown bold.
