10 Configuration level 1
72

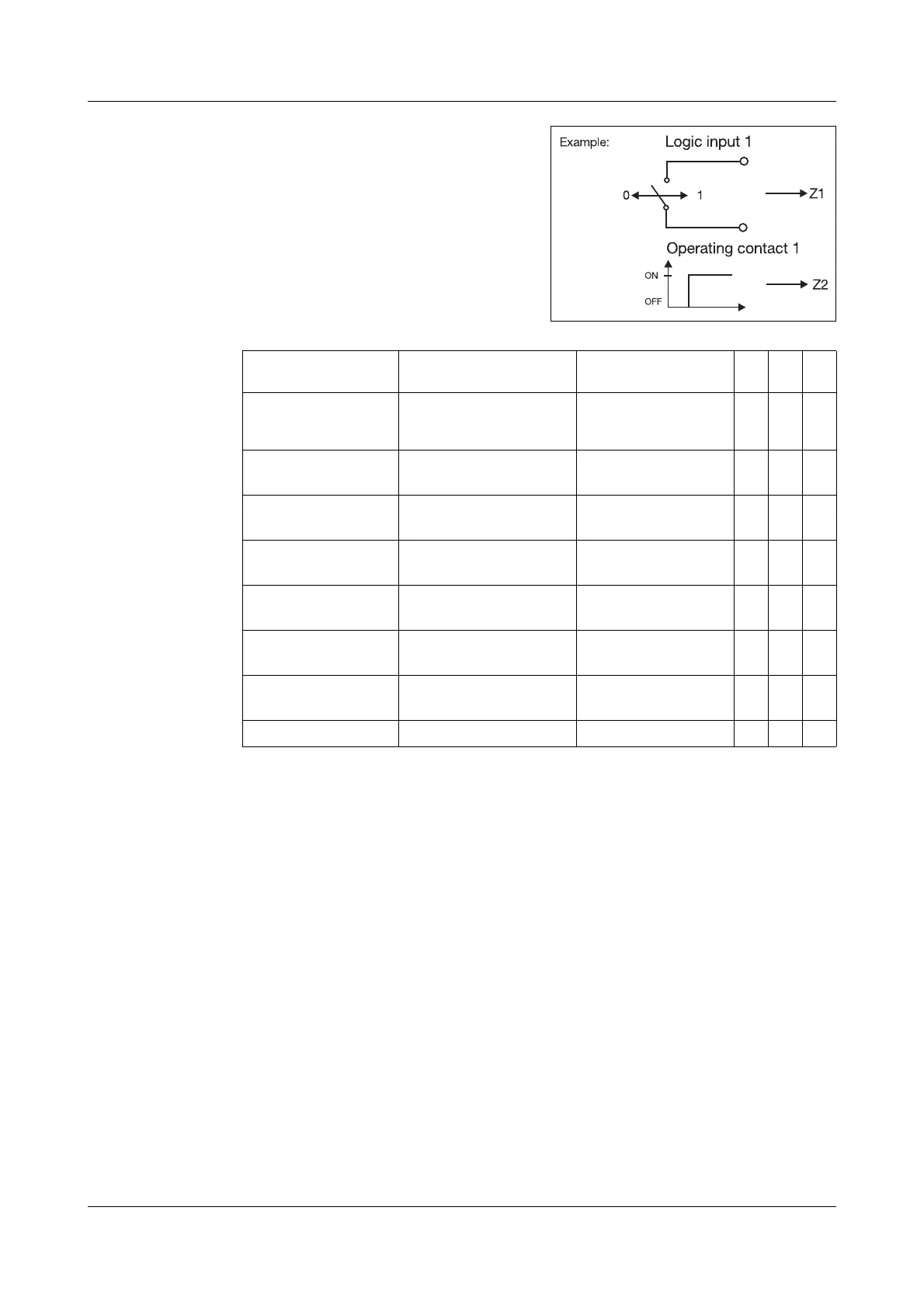

Example:
The process value is to be selected via
one logic input and the state of one op-
erating contact.
This results in the following assignment:
Z1 - logic input 1
Z2 - operating contact 1
0 = contact open /OFF 1 = contact closed /ON
Setpoint switchingProcess value
switching
Profile program
selection
Z3 Z2 Z1
Setpoint of
system state/
external setpoint
Configured controller
process value
Program 1 0 0 0
Setpoint 2 Analogue input 2 Program 2 0 0 1
Setpoint 3 Analogue input 3 Program 3 0 1 0
Setpoint 4 Analogue input 4 Program 4 0 1 1
-- Program 5100
-- Program 6101
-- Program 7110
-- Program 8111
If switching between two setpoints or process values only is re-
quired, then only one logic function has to be configured.
If more than two logic functions are configured to setpoint switch-
ing (process value switching), then only the first two (see list “oper-
ating variable - state”) are significant.
