12 Retrofitting of cards
80
Configuring the
analogue
input
The retrofitable analogue inputs 3 and 4 are supplied ex-factory as universal
input. They can be reconfigured as voltage input for certain measuring ranges
(-10/0/2—10V and -1V—1V).

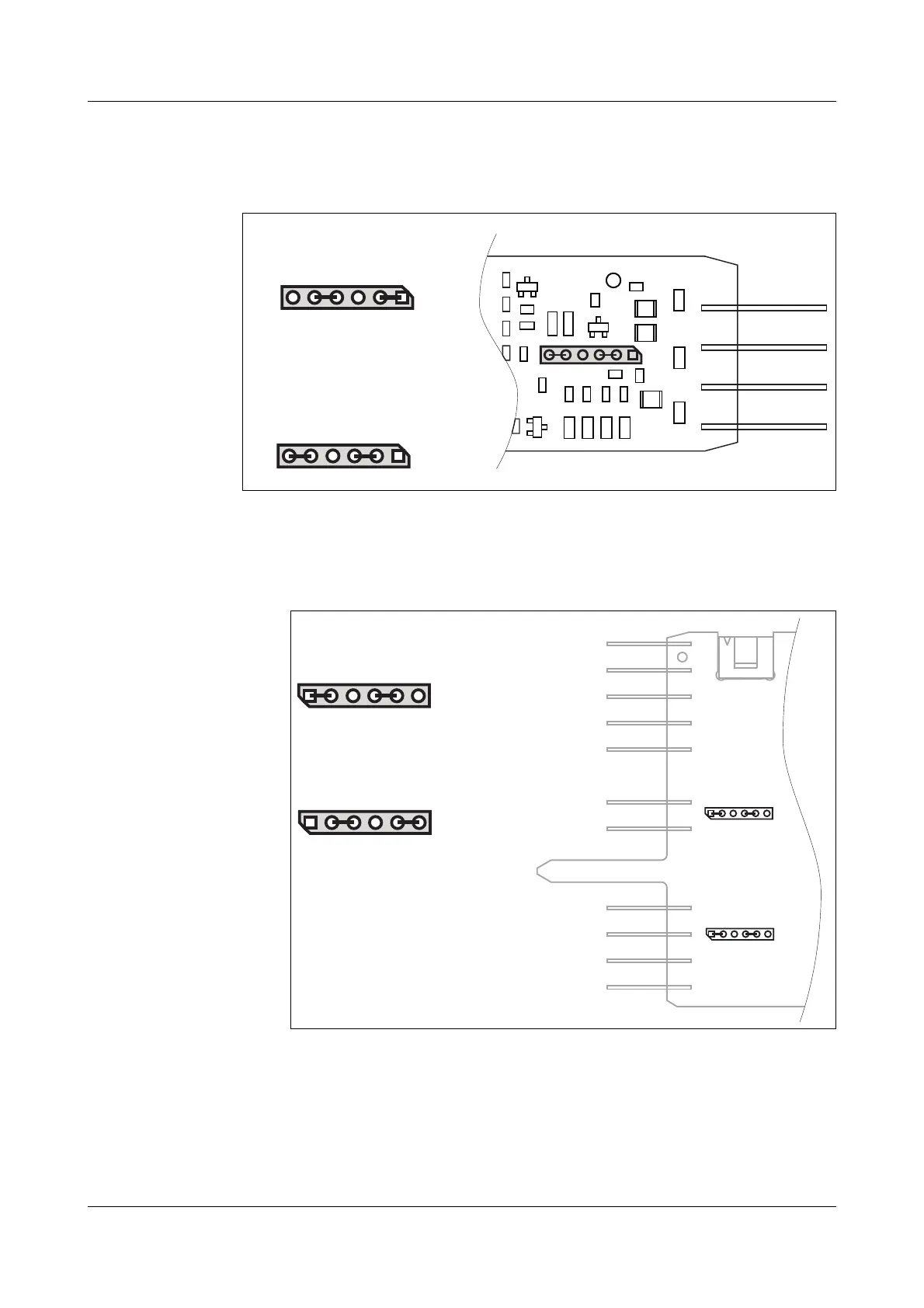

h Re-arrange push-on jumpers as in the diagram
The standard analogue inputs 1 and 2 are configured ex-factory as uni-
versal input or as voltage input for certain measuring ranges (see type
designation or order details). They can also be reconfigured:
Universal input
(remaining ranges)
Voltage 10/0/2 — 10V
-1 — 1V
Universal input
(remaining ranges)
Voltage -10/0/2 —10V
-1 — 1V
1 = Analogue input 1
2 = Analogue input 2
