Locating the Chassis Serial Number ID Label on an ACX5000 Router
The location for the chassis serial number ID label is product SKU-dependent. On the ACX5000 router
product SKUs, the serial number ID label is located on the left side of the port panel. See
Figure 55 on page 153 and Figure 56 on page 153 for examples of where to find the serial number ID.

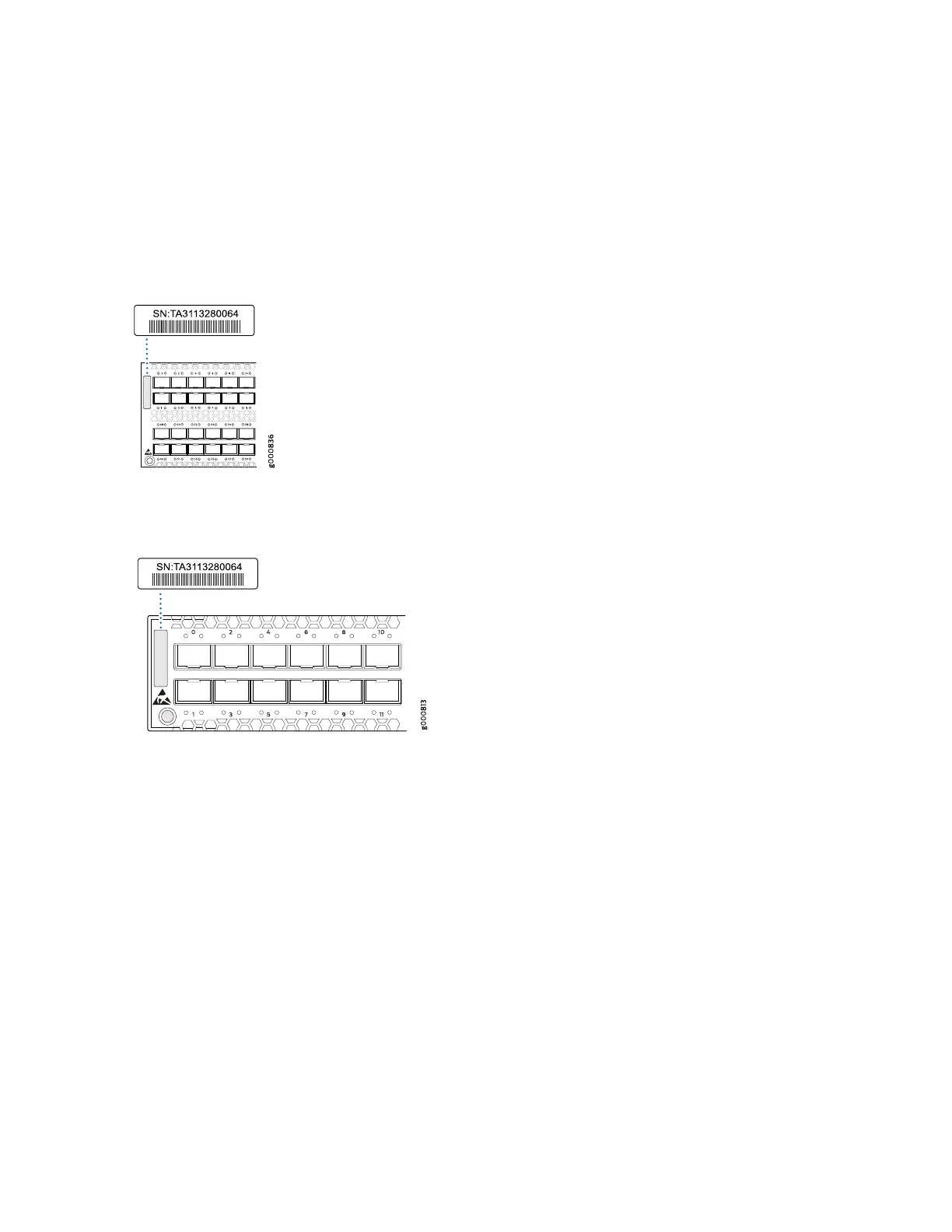

Figure 55: Location of the Serial Number ID Label on a ACX5096
Figure 56: Location of the Serial Number ID Label on a ACX5048
Locating the Serial Number ID Labels on FRU Components
The power supplies, fan module, and expansion modules installed in ACX5000 routers are field-replaceable
units (FRUs). For each FRU, you must remove the FRU from the router chassis to see the FRU serial number
ID label.
•
AC power supply—The serial number ID label is on the top of the AC power supply.
•
Fan module—The serial number ID label is on the top of the fan module.
•
Expansion module–The serial number ID label is in the middle of the printed circuit board (PCB).
