CAUTION: If you are mounting multiple routers on a rack, mount the router in the
lowest position of the rack first. Proceed to mount the rest of the routers from the
bottom to the top of the rack to minimize the risk of the rack toppling.
Four Post Procedure
To mount the router on four posts in a rack using the provided mounting kit:
1. Attach the ESD grounding strap to your bare wrist and to a site ESD point.
2. Decide whether the Field Replaceable Unit (FRU) end of the router or the port end is to be placed at
the front of the rack. Position the router in such a manner that the AIR OUT labels on components are
next to the hot aisle.
3. Align the holes in the mounting rail with the holes on the side of the chassis. See Figure 29 on page 106
for the alignment for the ACX5048, and Figure 30 on page 106 for the ACX5096 router.

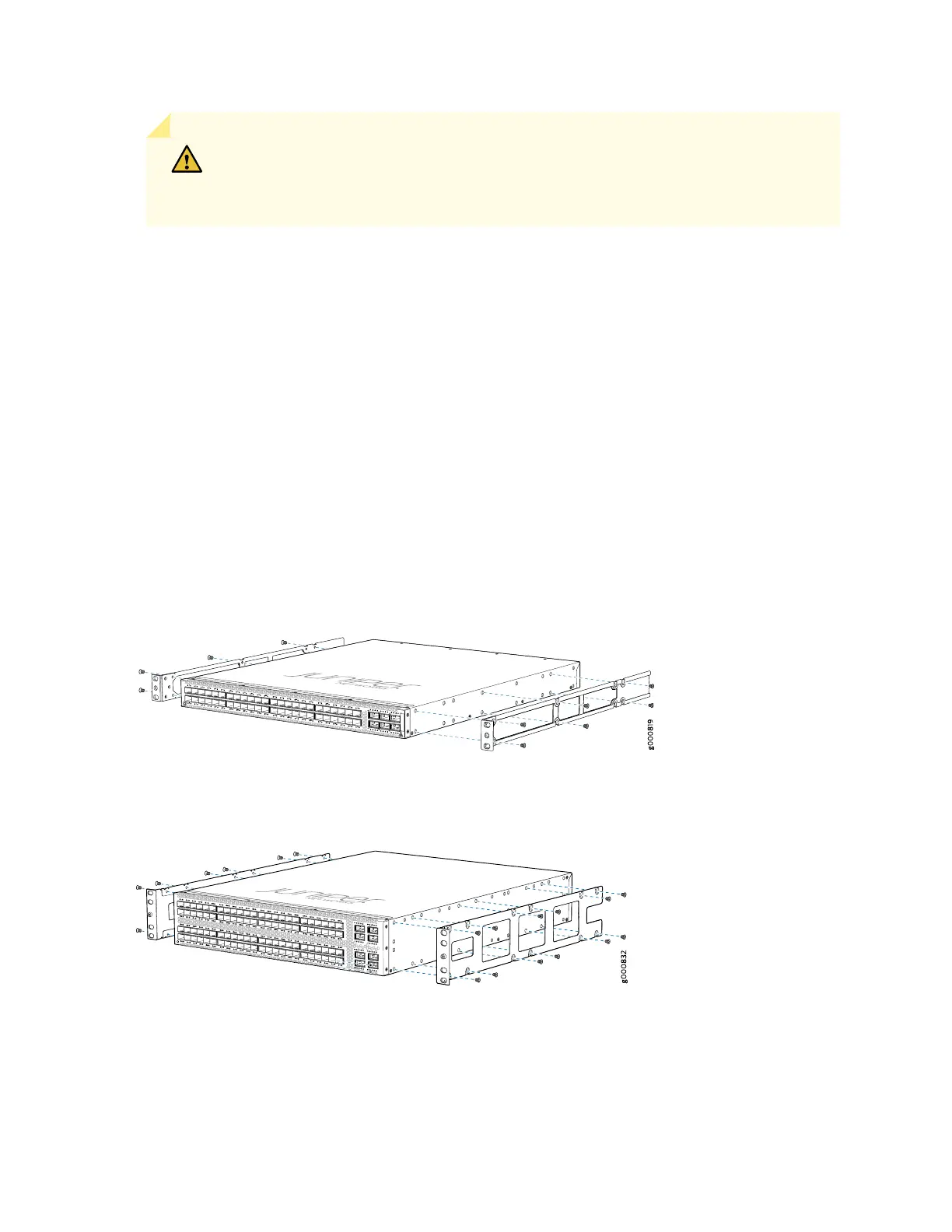

Figure 29: Attaching Mounting Rails to the ACX5048 Router
Figure 30: Attaching Mounting Rails to the ACX5096 Router
4. Attach the mounting rail to the router using the mounting screws (and cage nuts and washers if your
rack requires them). Tighten the screws.
106
