Juniper ACX5048 - Port Panel of an ACX5096 Router

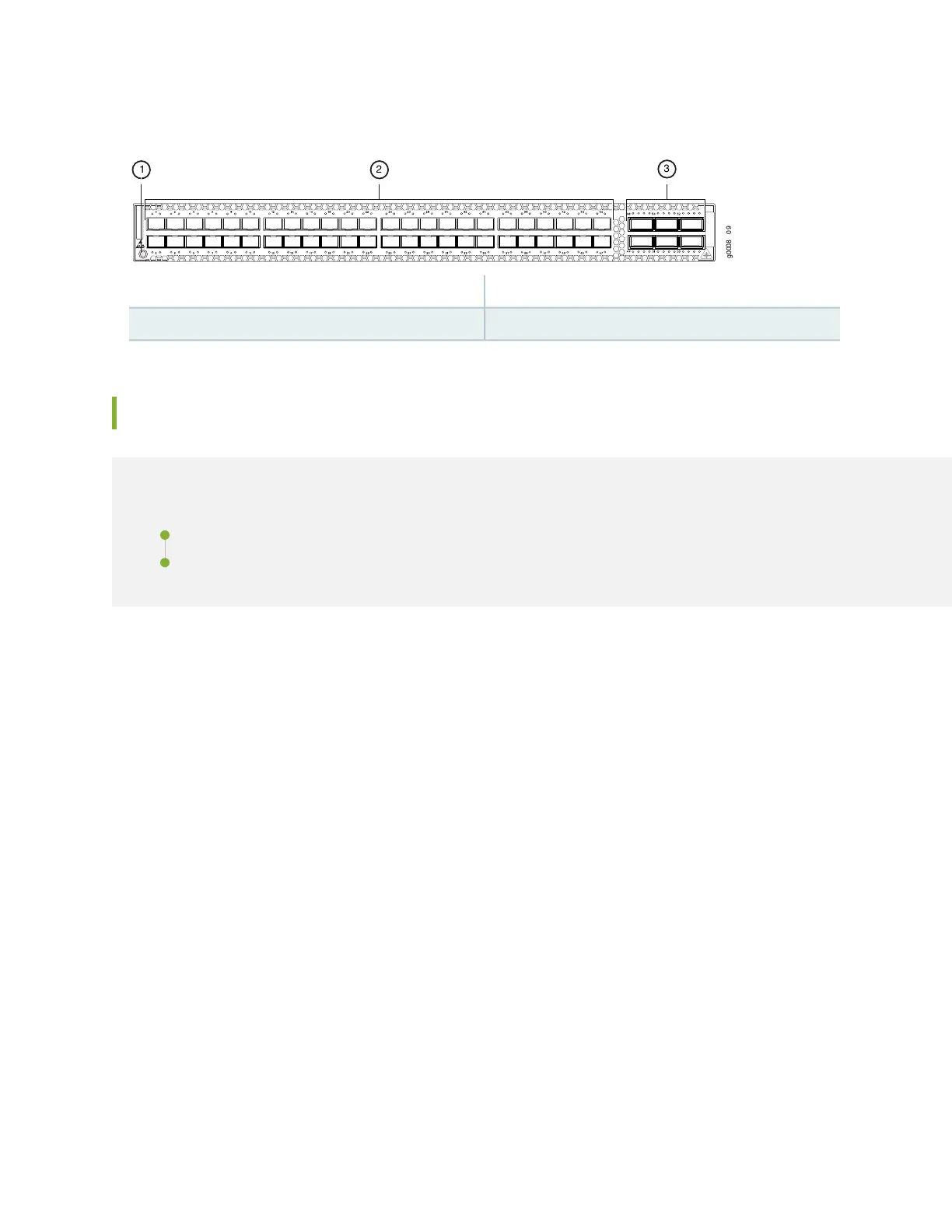

Figure 9: ACX5048 Router Port Panel
g0008 0 9
1 2
3
3—1— 40 Gigabit Ethernet ports (6)Electrostatic Discharge (ESD) terminal
2—10 Gigabit Ethernet ports (48)
Port Panel of an ACX5096 Router
IN THIS SECTION
Router Ports | 52
Channelizing Interfaces | 53
The port panel of the ACX5096 router consists of 96 small form-factor pluggable plus (SFP+) and 8 quad
small-form factor pluggable plus (QSFP+) ports. Physical ports(0 through 95) support 10 Gbps SFP+
transceivers and normally are configured as access ports. The eight 40-Gigabit ports (96 through 103)
support QSFP+ transceivers and are normally configured as uplinks or Virtual Chassis ports (VCPs). Although
the 104 physical ports of the ACX5096 would map to 128 logical ports using channelization, only 104
logical ports are supported.
