For the list and specifications of transceivers supported on EX8200 switches, see
Pluggable Transceivers Supported on EX8200 Switches.
•
For the list and specifications of transceivers supported on EX9200 switches, see
Pluggable Transceivers Supported on EX9200 Switches.
Related
Documentation
Installing a Transceiver on page 193•
• Removing a Transceiver on page 195
• Connecting a Fiber-Optic Cable on page 159
SFP+ Direct Attach Copper Cables for EX Series Switches
Small form-factor pluggable plus transceiver (SFP+) direct attach copper (DAC) cables,
also known as Twinax cables, are suitable for in-rack connections between servers and
switches. They are suitable for short distances, making them ideal for highly cost-effective
networking connectivity within a rack and between adjacent racks. See
Figure 23 on page 81.

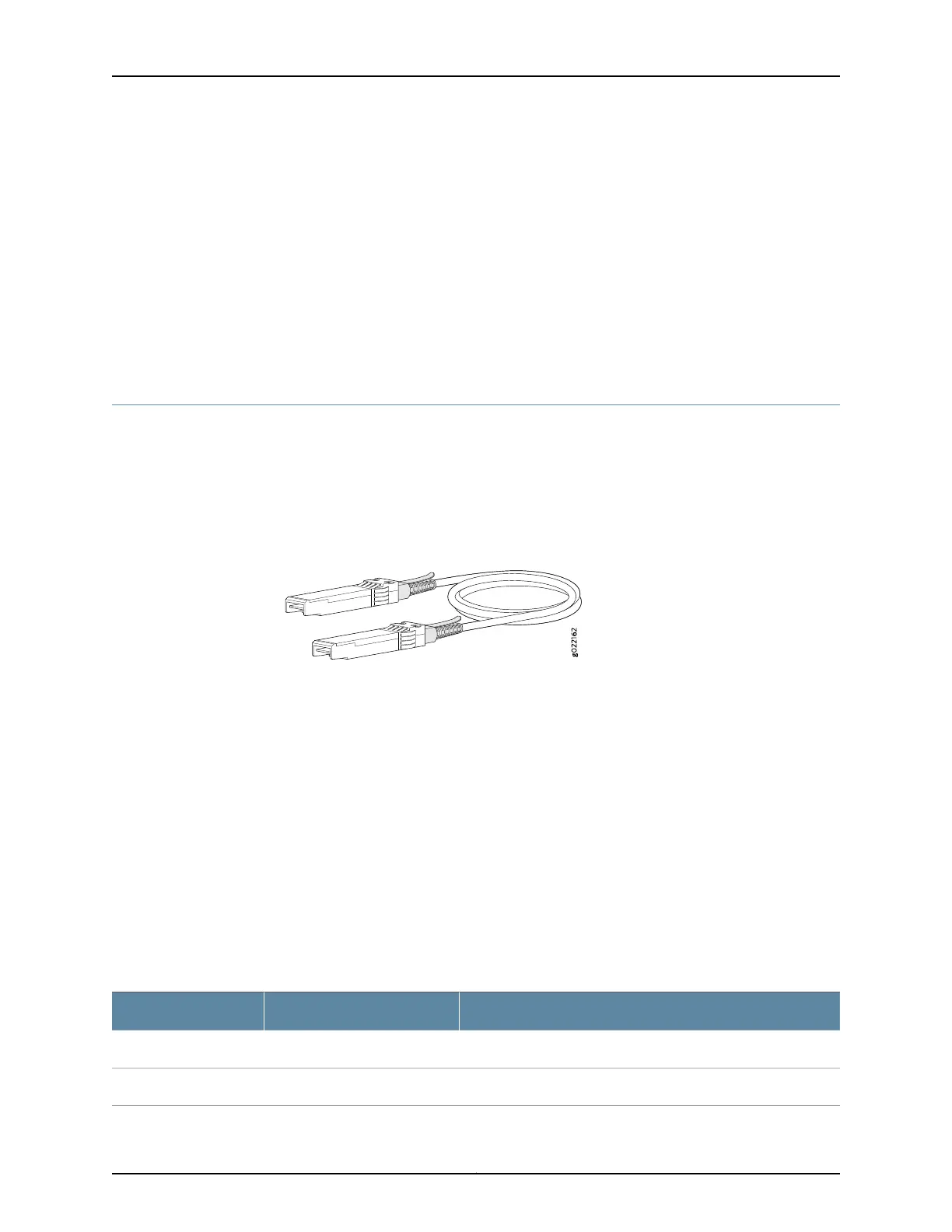

Figure 23: SFP+ Direct Attach Copper Cables for EX Series Switches
This topic describes:
•
Cable Specifications on page 81
•
Standards Supported by These Cables on page 87
Cable Specifications
EX Series switches support SFP+ passive DAC cables. The passive Twinax cable is a
straight cable with no active electronic components. EX Series switches support 1 m,
3 m, 5 m, and 7 m long SFP+ passive DAC cables. For the full specifications of these
cables, see The Hardware Compatibility Tool.
Table 40 on page 81 describes the support for SFP+ passive DAC cable lengths on
EX Series switches for Junos OS releases.
Table 40: Software Support for SFP+ Passive Direct Attach Copper Cables for EX Series
Switches
Cable LengthSoftware Support AddedSwitch
3 ft (1 m), 10 ft (3 m), and 16 ft (5 m)Junos OS Release 15.1X53-D50EX2300 switches
3 ft (1 m), 10 ft (3 m), 16 ft (5 m), and 23 ft (7 m)Junos OS Release 10.3EX3200 switches
81Copyright © 2017, Juniper Networks, Inc.
Chapter 8: Transceiver and Cable Specifications
