3. Gently pull the release pull tab on the Virtual Chassis cable connector to release the
lock holding the Virtual Chassis cable connector in the Virtual Chassis port.
4. Gently pull the Virtual Chassis cable connector out of the Virtual Chassis port.

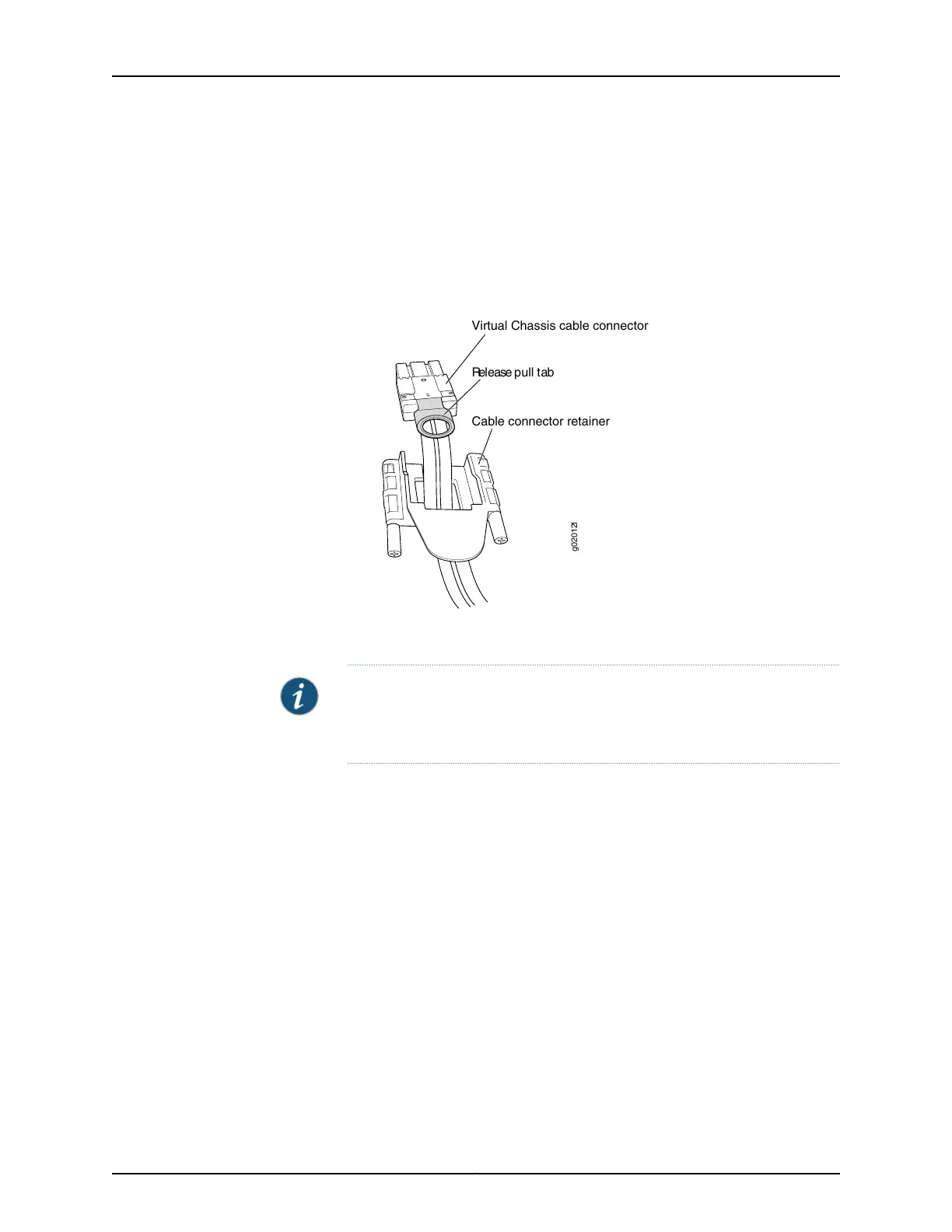

Figure 65: Virtual Chassis Cable Connector in an EX4200 Switch
g020121
Virtual Chassis cable connector
Release pull tab
Cable connector retainer
NOTE: If you order Virtual Chassis cables separately, you must reuse the
cable connector retainers provided with the original cable or order Virtual
Chassis cable connector retainers also separately.
Related
Documentation
• Connecting a Virtual Chassis Cable to an EX4200 Switch on page 213
• Understanding EX4200,EX4500, and EX4550 Virtual Chassis Hardware Configurations
on page 111
• Understanding EX Series Virtual Chassis Components
• Planning EX4200, EX4500, and EX4550 Virtual Chassis on page 114
• Virtual Chassis Ports Connector Pinout Information for EX4200 Switches on page 107
215Copyright © 2017, Juniper Networks, Inc.
Chapter 22: Maintaining and Replacing Virtual Chassis Cable
