1. Attach the wall-mount brackets to the sides of the chassis using four of the wall-mount
bracket screws on each side, as shown in Figure 37 on page 139.

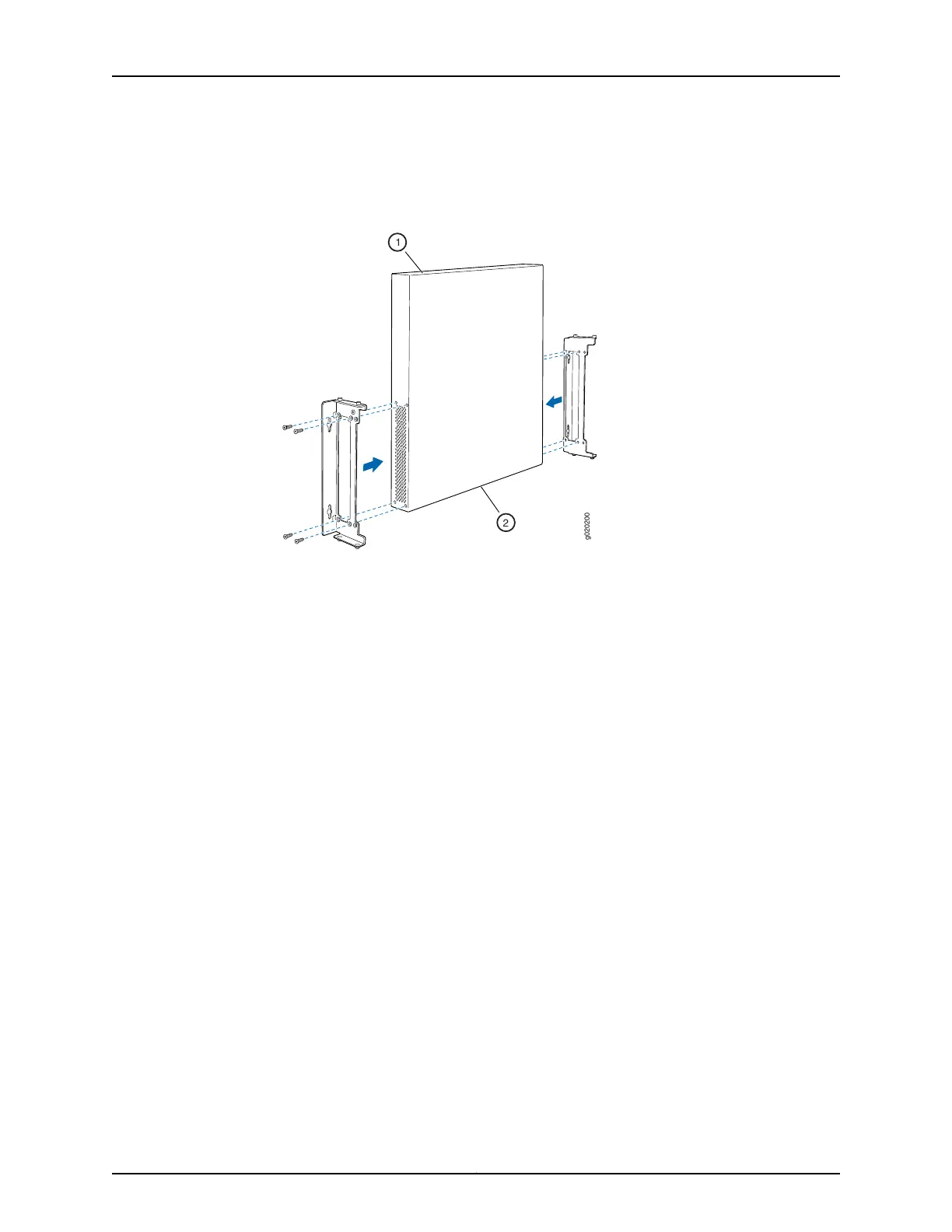

Figure 37: Attaching Wall-Mount Brackets to the Switch Chassis
2. If you are mounting two switches together, line the second switch on top of the first
and attach it to the mounting brackets using two wall-mount bracket screws on each
side (see Figure 38 on page 140).
3. Insert the mounting screws in the wall. Insert the top pair of mounting screws
474.35 mm apart, and insert the second pair of mounting screws 151.81 mm directly
below the first set.
If the mounting screws are inserted in wall board with no stud behind it, you must use
dry wall anchors rated to support 75 lb (34 kg). Insert the screws into wall studs
wherever possible to provide added support for the chassis.
Screw the screws only part way in, leaving about 1/4 in. (6 mm) distance between
the head of the screw and the wall.
4. Grasp each side of the switch or switches, lift the switch or switches, and hang the
brackets from the mounting screws as shown in Figure 38 on page 140.
139Copyright © 2017, Juniper Networks, Inc.
Chapter 12: Installing the Switch
