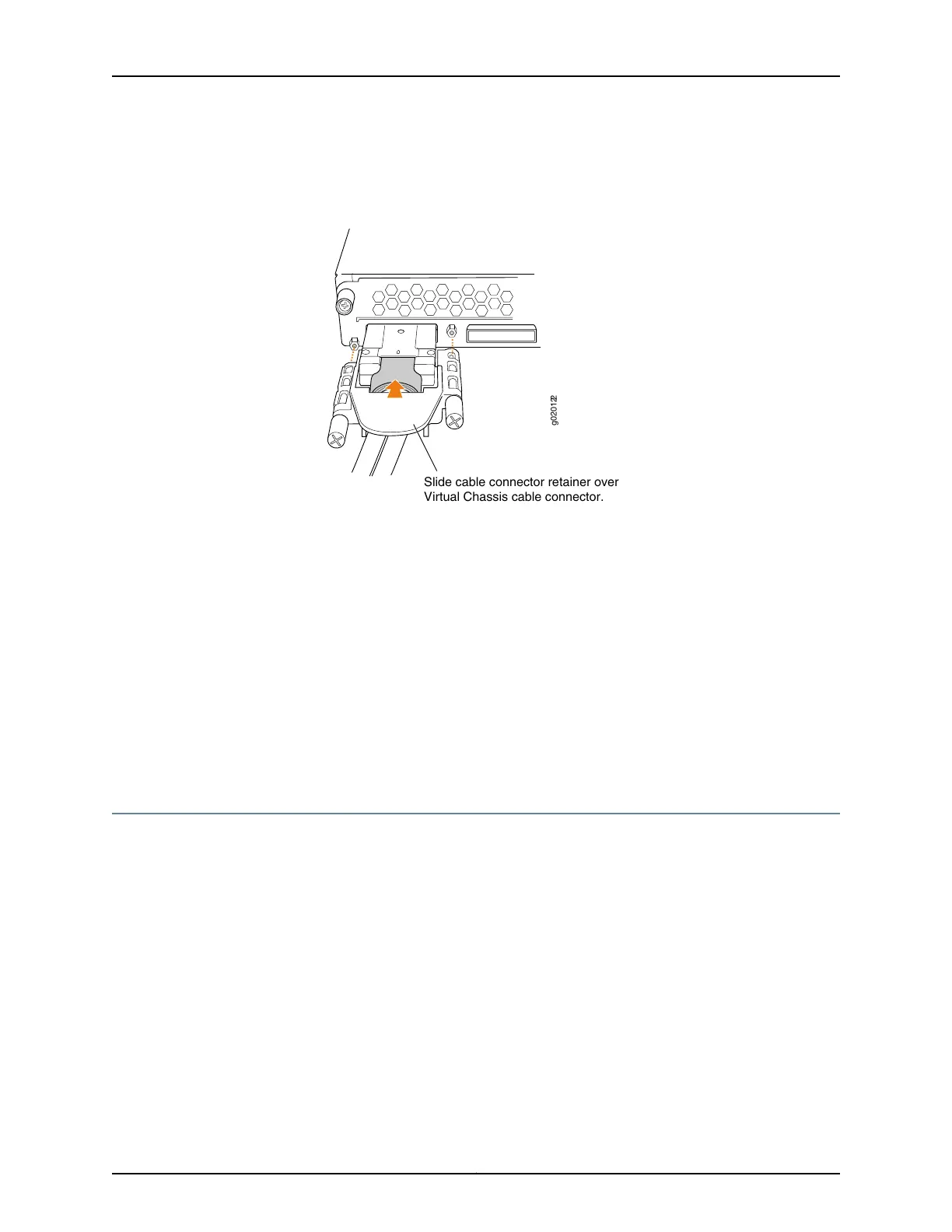

Figure 64: Connecting a Virtual Chassis Cable to an EX4200 Switch
g020122
Slide cable connector retainer over
Virtual Chassis cable connector.
Related
Documentation
Disconnecting a Virtual Chassis Cable from an EX4200 Switch on page 214•
• Understanding EX4200,EX4500, and EX4550 Virtual Chassis Hardware Configurations
on page 111
• Understanding EX Series Virtual Chassis Components
• Planning EX4200, EX4500, and EX4550 Virtual Chassis on page 114
• Virtual Chassis Ports Connector Pinout Information for EX4200 Switches on page 107
Disconnecting a Virtual Chassis Cable from an EX4200 Switch
If you need to disconnect an EX4200 switch from a Virtual Chassis configuration, you
need to disconnect the Virtual Chassis cable from the Virtual Chassis ports (VCPs).
Ensure that you have the following parts and tools available:
•
A cross-head screwdriver (provided in the uplink module kit)
To disconnect a Virtual Chassis cable from an EX4200 switch (see Figure 65 on page 215):
1. Loosen the screws on the cable connector retainer by using the cross-head screwdriver.
2. Slide the cable connector retainer back.
Copyright © 2017, Juniper Networks, Inc.214
EX4200 Switch Hardware Guide
