4. To remove an SFP, SFP+, XFP, or a QSFP+ transceiver:
a. By using your fingers, pull open the ejector lever on the transceiver to unlock the
transceiver.
CAUTION: Before removing the transceiver, make sure that you open
the ejector lever completely until youhear it click. This prevents damage
to the transceiver.
b. Grasp the transceiver ejector lever and gently slide the transceiver approximately
0.5 in. (1.3 cm) straight out of the port.
CAUTION: To prevent electrostatic discharge (ESD) damage to the
transceiver, do not touch the connector pins at the end of the
transceiver.
To remove a CFP transceiver:
a. Loosen the screws on the transceiver by using your fingers.
b. Grasp the screws on the transceiver and gently slide the transceiver approximately
0.5 in. (1.3 cm) straight out of the port.
CAUTION: To prevent electrostatic discharge (ESD) damage to the
transceiver, do not touch the connector pins at the end of the
transceiver.

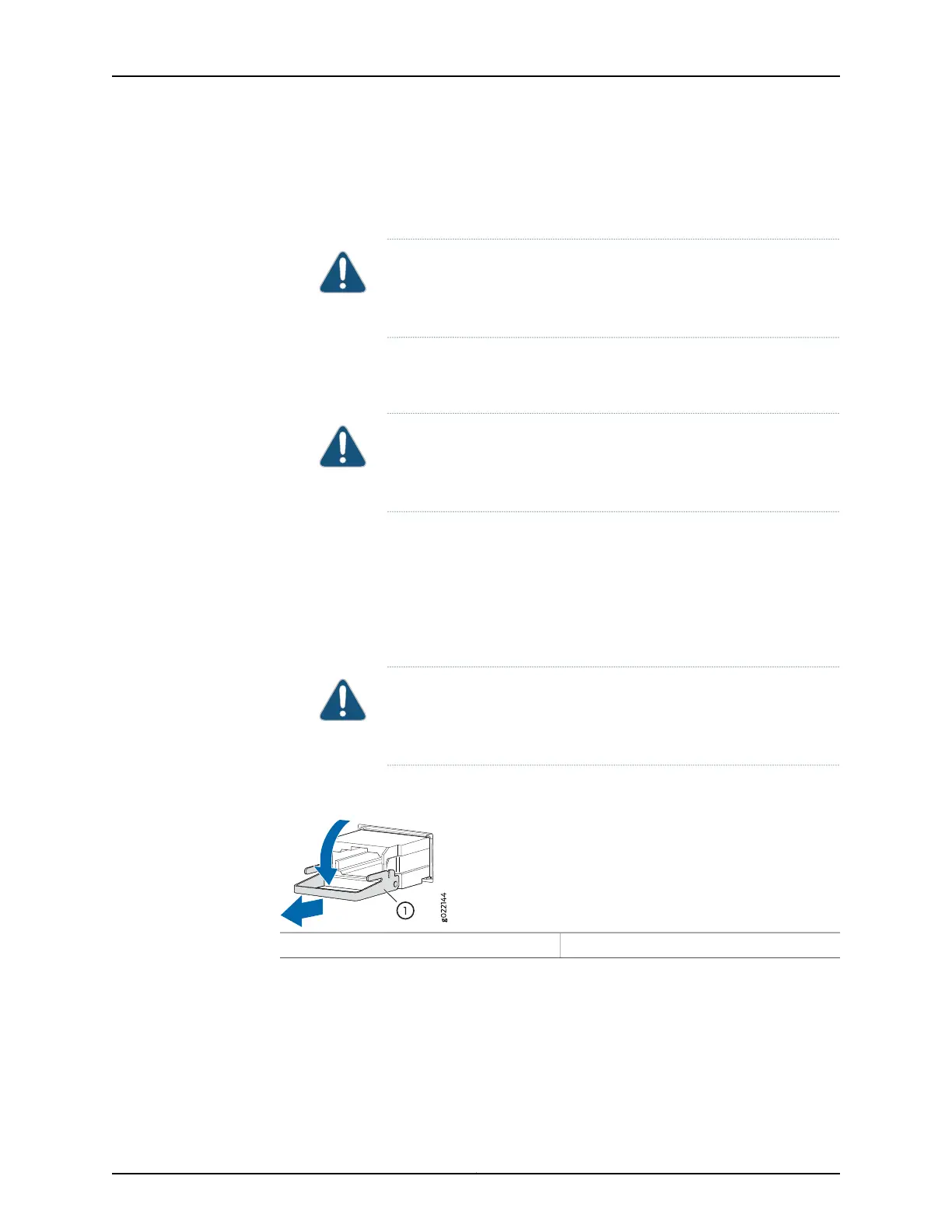

Figure 62: Removing an SFP, SFP+, XFP, or a QSFP+ Transceiver
1— Ejector lever
5. By using your fingers, grasp the body of the transceiver and pull it straight out of the
port.
197Copyright © 2017, Juniper Networks, Inc.
Chapter 19: Replacing Transceiver
