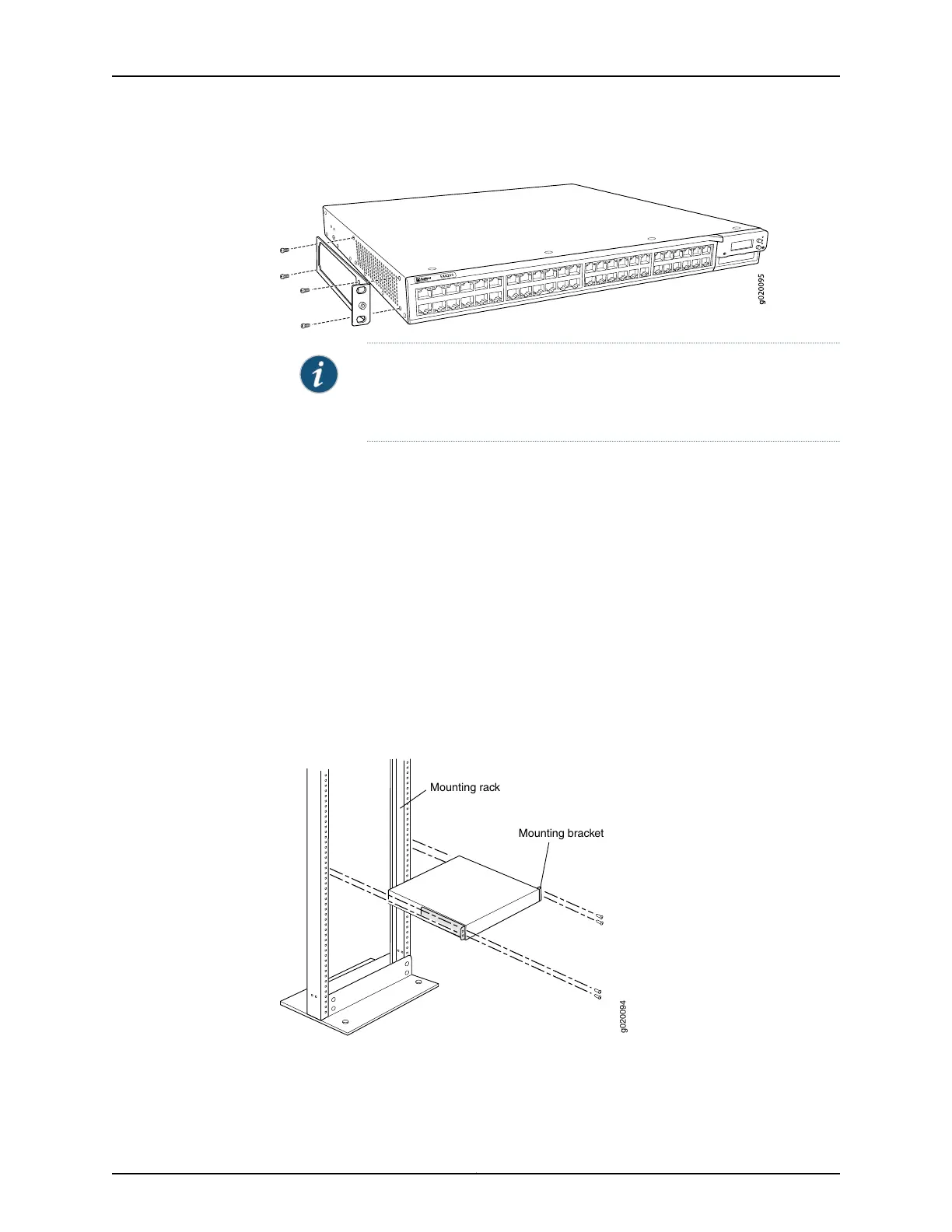

Figure 31: Attaching the Mounting Bracket to the Side Panel of the Switch
NOTE: If you need to mount the switch in a recessed position, use the
2-in.-recess front mount brackets from the separately orderablefour-post
rack-mount kit.
3. Align the bottom holes in the mounting brackets with holes on the side panels of the
switch chassis.
4. Insert mounting screws into the aligned holes. Tighten the screws.
5. Ensure that the other holes in the mounting brackets are aligned with the holes in the
side panels. Insert a screw in each hole and tighten the screws.
6. Have one person grasp both sides of the switch, lift the switch, and position it in the
rack, aligning the mounting bracket holes with the threaded holes in the rack or cabinet
rail. Align the bottom hole in both the mounting brackets with a hole in each rack rail,
making sure the chassis is level. See Figure 32 on page 132.
Figure 32: Mounting the Switch on Two Posts in a Rack
g020094
Mounting rack
Mounting bracket
Copyright © 2017, Juniper Networks, Inc.132
EX4200 Switch Hardware Guide
