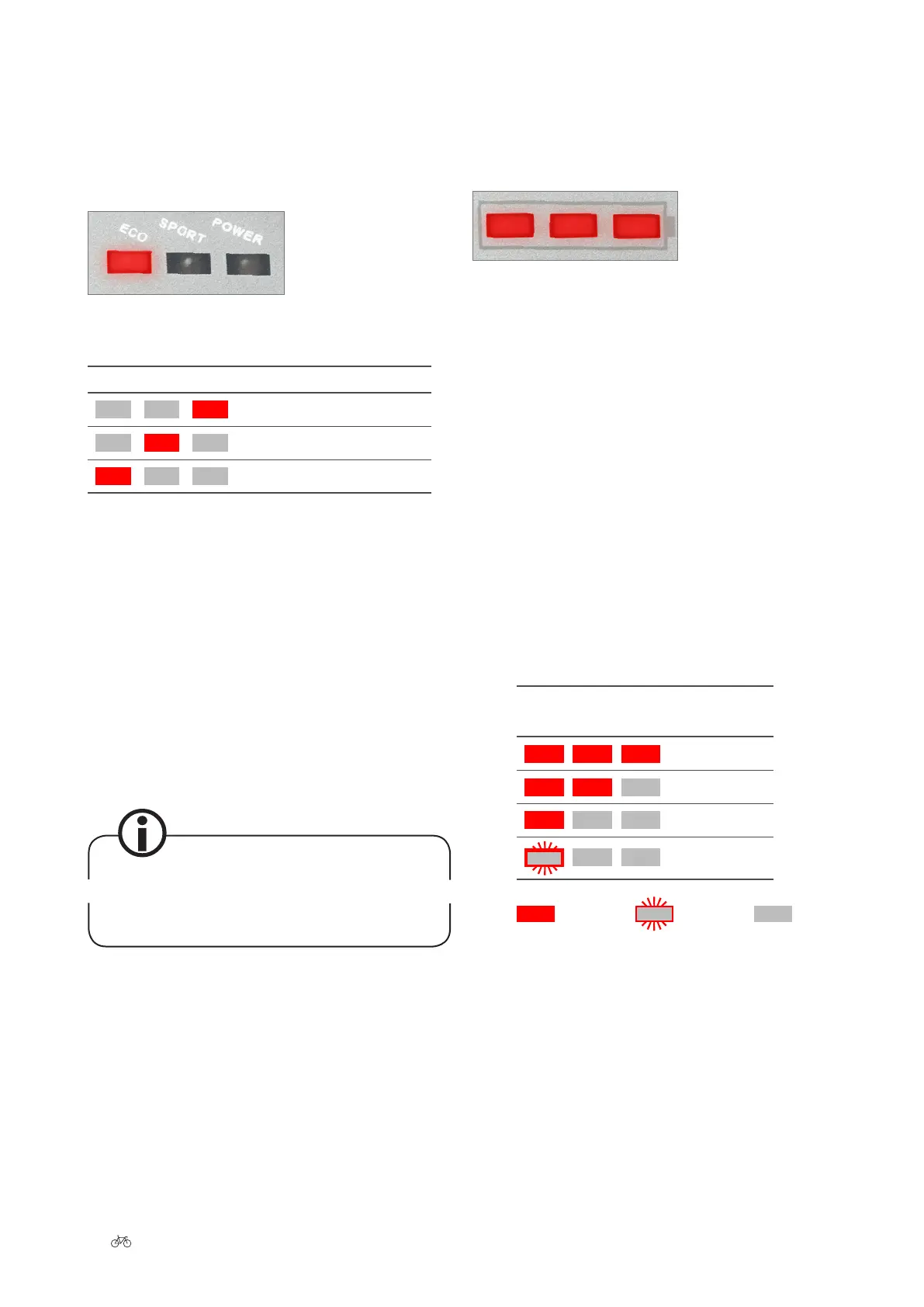

5.3 Display of power-assist mode
The upper row of LED indicators on the right next to the
Mode button shows how much assistance the motor is cur-
rently providing.
Display of power-assist mode
Assist level
DISPLAY ASSIST LEVEL
POWER
SPORT
ECO
• The LED on the right of the display lights up when
the highest level of assistance (POWER) is activat-
ed. This means the assistance is working hard.
• The LED in the centre of the display lights up when
the medium assist level (SPORT) is activated. This
means the assistance is working with a medium
level of eort.
• The LED on the le of the display lights up when
the lowest level (ECO) is activated and the assis-
tance is working only with a low level of eort.
When using the eco mode and pedaling only lightly,
an irregular noise om the motor may be heard.
5.4 Battery charge state indicator
The battery charge state indicator is located below the
row of LED indicators that displays the power-assist mode.
Battery charge state indicator
• If all three battery charge state indicator LEDs
are lit, the battery charge is between 100 and
65%.
• If two LEDs are lit, the battery charge is still be-
tween 65 and 35%.
• If only one LED is lit, the battery charge is be-
tween only 35 and 10%.
• If only one LED is ashing, the battery charge
is less than 10%. At this point you will notice a
slight loss of power.
• If the battery charge state falls below a minimum
level, the system switches o. No LEDs light up
on the control panel.
Battery charge state
DISPLAY
BATTERY
CHARGE STATE
 % –  %
 % –  %
 % –  %
below  %
LED lights up LED ashes
LED o
