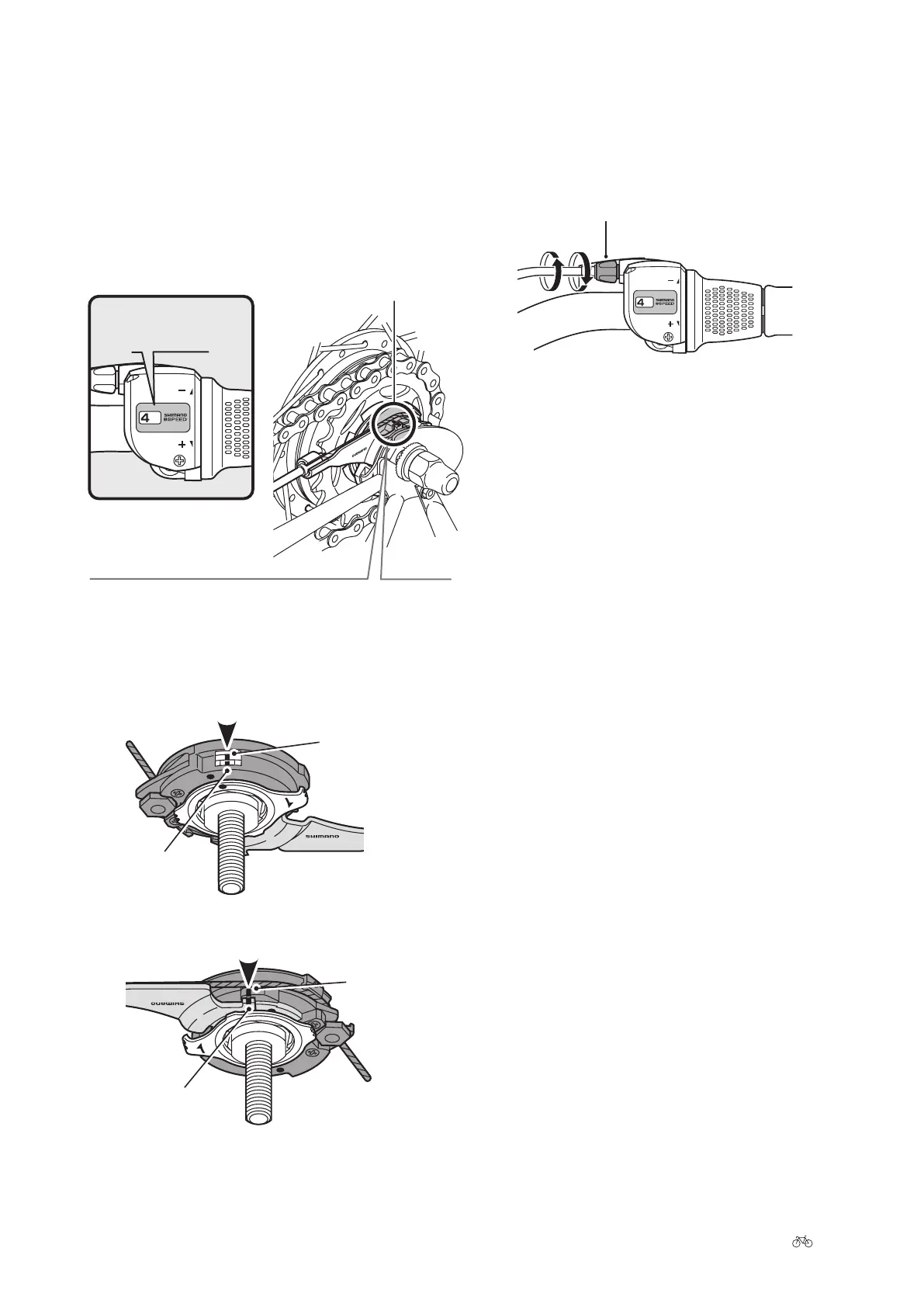

19.2.2 Adjusting gears with Shimano hub
gears
Example shown is a 7/8-speed hub.
› Select shi lever position 4.
› Check whether the yellow marking lines on the
bracket and cassette joint pulley line up.
CJ-8
S20
J
A
P
A
N
LO
CK
yellow marking lines
select position 4
Yellow marking lines appear at two points on the cassette
joint. Use the line which is most clearly visible.
CJ-8S20
JAPAN
LOCK
CJ-8S20
JAPAN
LOCK
Cassette joint
pulley
Cassette joint
pulley
Bike in normal position
Bike in inverted position
line up markings
line up markings
Bracket
Bracket
› Turn the cable adjustment bolt on the shi lever to
align the marking lines. Next, set the Revo-shi
lever om position 4 to position 1 then back to
position 4. Check that the yellow marking lines still
line up.
Cable adjustment bolt
