Sensors
After the sensor calibration, the red lamp
number 6 should turn on, indicating that
the axle area is aligned.
Lambs

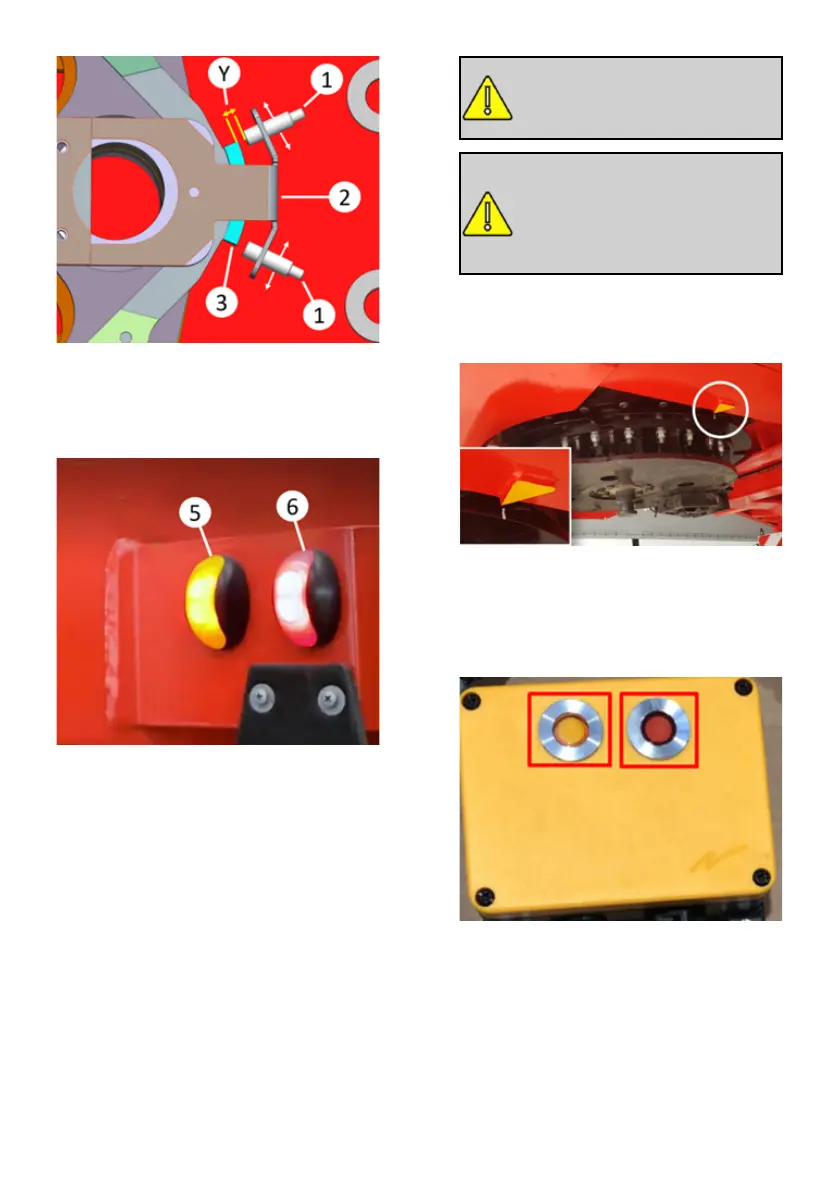

3.6.2.2.2. Fully Automatic Alignment
System Angle Sensor Calibration
In the fully automatic alignment system,
there are angle sensors in the fifth wheel
and steering hub centers. In order for the
steering system to work correctly, the
steering angles and the sensor angles
must be matched.
This process should be done
again after sensor replace-
ment and steering system
faults are eliminated.
In order for the angle sensor
calibration to be correct, the
Mechanical Alignment pro-
cess must first be performed.
Then the following steps
should be done in order.
1. The yellow alignment arrows on the
fifth wheel and steering hub must be
matched.
2. Press and hold the Set (5) button of
the Remote Control for 3 seconds. When
the calibration function starts, the Yellow
and Red Steering Warning Lamps start
to flash slowly (1 Hz) at the same time.
Receiver
To Next Page
