KEB COMBIVERT F4-F Applications Manual

ANTRIEBSTECHNIK
6
27
KEB COMBIVERT F4-F
Name: Basis
17.09.98
Functional DescriptionAnalog In- and Outputs
Chapter Section PageDate
© KEB Antriebstechnik, 1998
All Rights reserved
6
Function REF1 ± REF2 ± Value range Resolution Default value
Gain An.3 An. 9 -20...+20 0,01 1,00
X-Offset An.4 An.10 -100...+100 % 0,1 % 0,0 %
Y-Offset An.5 An.11 -100...+100 % 0,1 % 0,0 %
+100%
+100%
-100%
-100%
An.3
IN
OUT
+100%
+100%
-100%
-100% An.4
+50%
IN
OUT
1.
2.
An.3 = 1, An.4 = 0 %
An.3 = 2, An.4 = 0 %
An.3 = 2, An.4 = 0 %
An.3 = 2, An.4 = +50 %
Parameter assignment
Examples

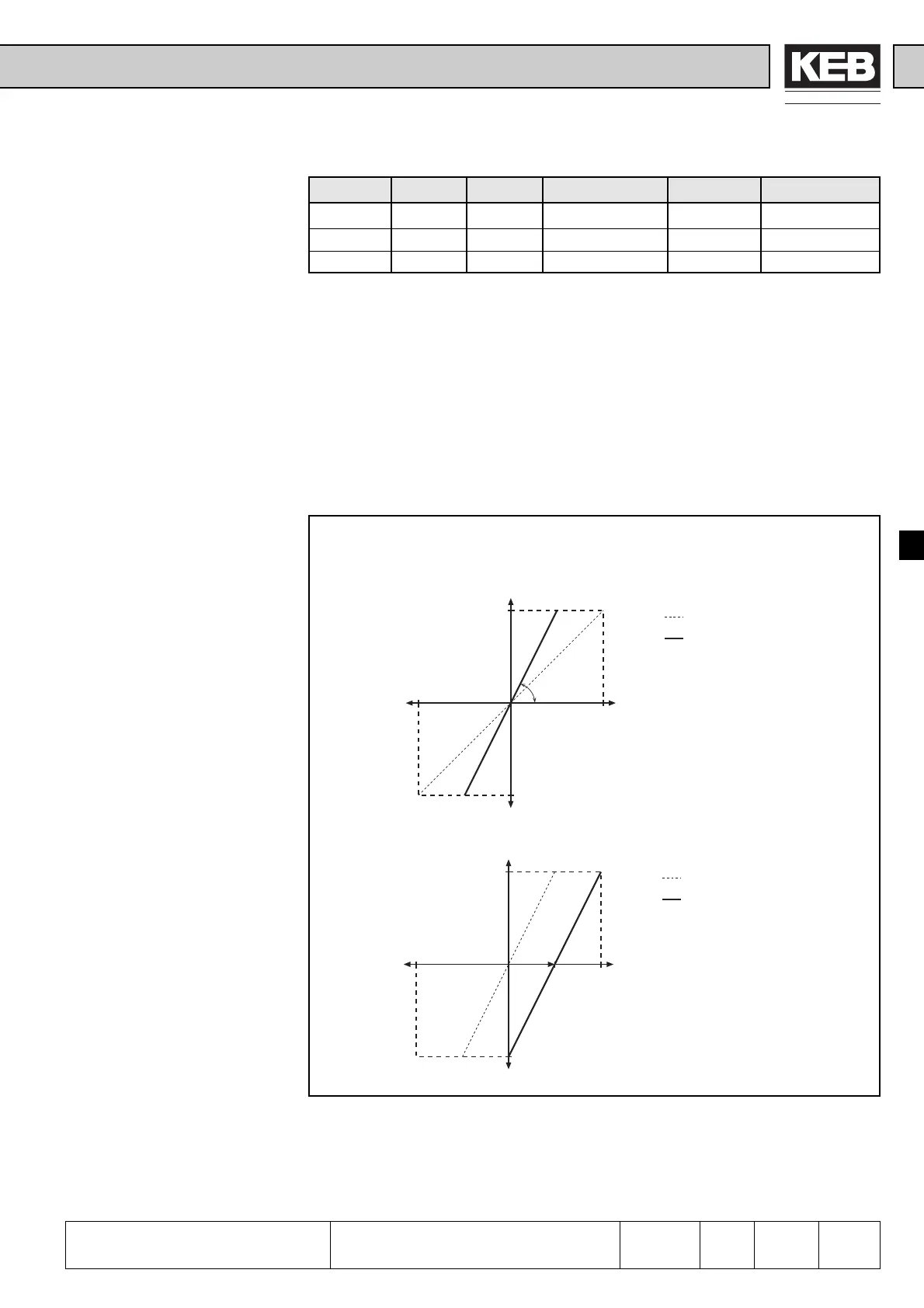

Fig. 6.2.6 Gain (An.3) = 2,00 and X-Offset (An.4) = +50 %,
By means of some examples we want to demonstrate the possibilities of these
functions.
With an voltage (0...10 V) on input REF1 ± the full speed range (-100%...+100%) can
be driven (rotation = ±Analog), that means:
0% IN correspond to -100% OUT
+50% IN correspond to 0% OUT
+100% IN correspond to +100% OUT
Gain adjusted to 2
(double amplification)
X-Offset adjusted to 50 %
