KEB COMBIVERT F4-F Applications Manual

11 1 6
Name: Option
00.F4.Z1A-KB15
05.01.99
Chapter Section
© KEB Antriebstechnik, 1998
All Rights reserved
Page Date
Networks
Network Hardware
Pin assignment 9-pole SUB-D connector (Slave)
PIN Signal Significance
1 - free
2 TxD transmitter signal / RS232
3 RxD receive signal / RS232
4 - free
5 - free
6 - free
7 DGND data reference potential
8 - free
9 - free
AB
5243 1
98 76
B
A
+-
15 ... 30 V DC
75 mm
22,5 mm
105 mm

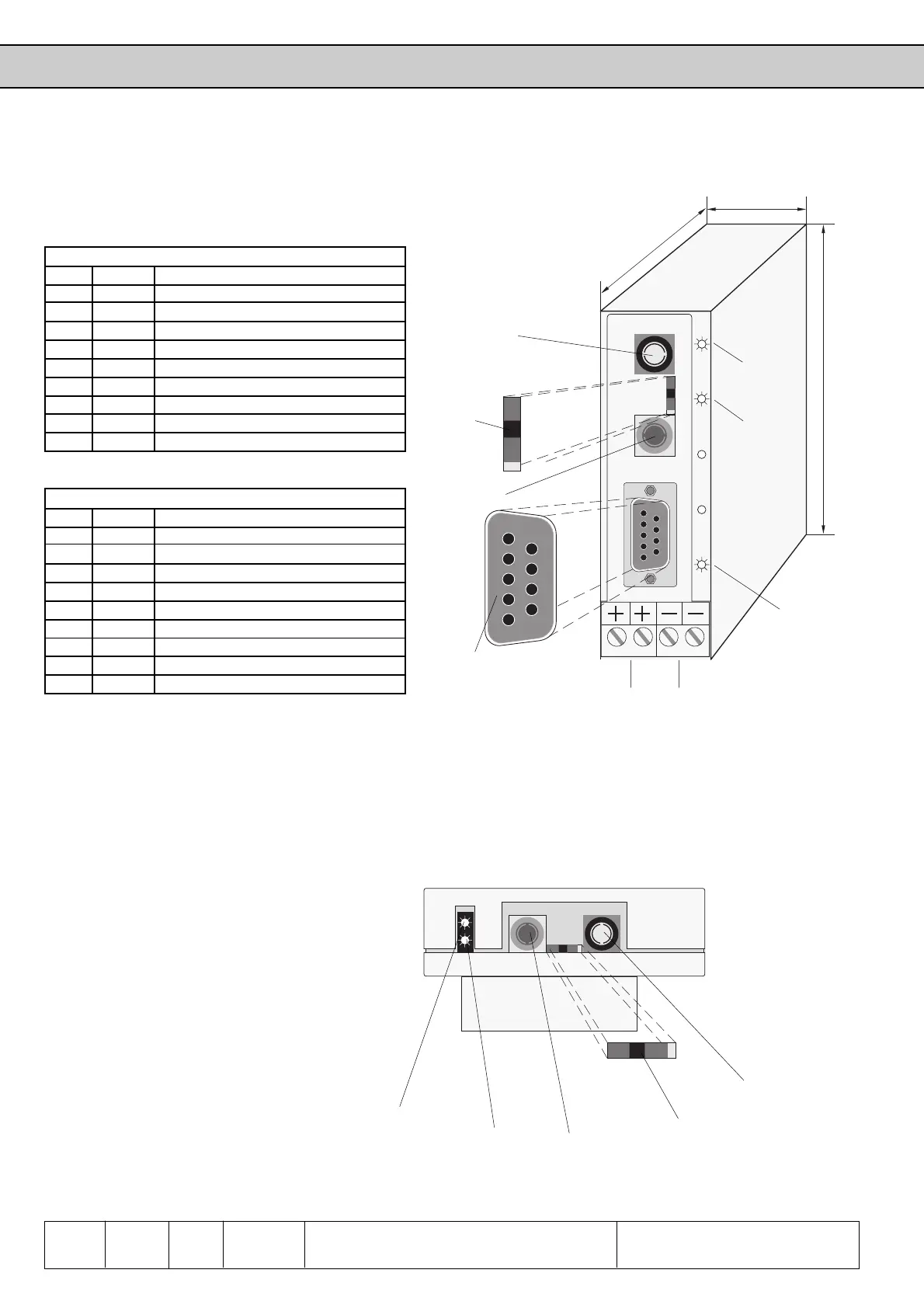

Description
Optical Fibre Operator
Switch
Receiver
Transmitter
Transmitter-
LED
Receiving-
LED
Description
Optical Fibre Interface
Transmitter-
LED
Receiver
Transmitter
Switch
9-pole SUB-D
socket
Receiving-
LED
Operating
voltage-LED
The difference between LWL-Interface Master and Slave is as follows:
The Master has a 9-pole SUB-D socket and the Slave a 9-pole SUB-D connector. It
must be taken into consideration that the PIN’s of the connector must be assigned in
the opposite of the socket in mirror position.
The housing is on all common DIN EN mounting rails mountable.
Pin assignment 9-pole SUB-D socket (Master)
PIN Signal Significance
1 - free
2 TxD transmitter signal / RS232
3 RxD receive signal / RS232
4 - free
5 DGND data reference potential
6 - free
7 - free
8 - free
9 - free
