4 3 KEB COMBIVERT F4-F

Name: Basis

15.12.98

CP - Parameter

Operation

Chapter Section Page Date

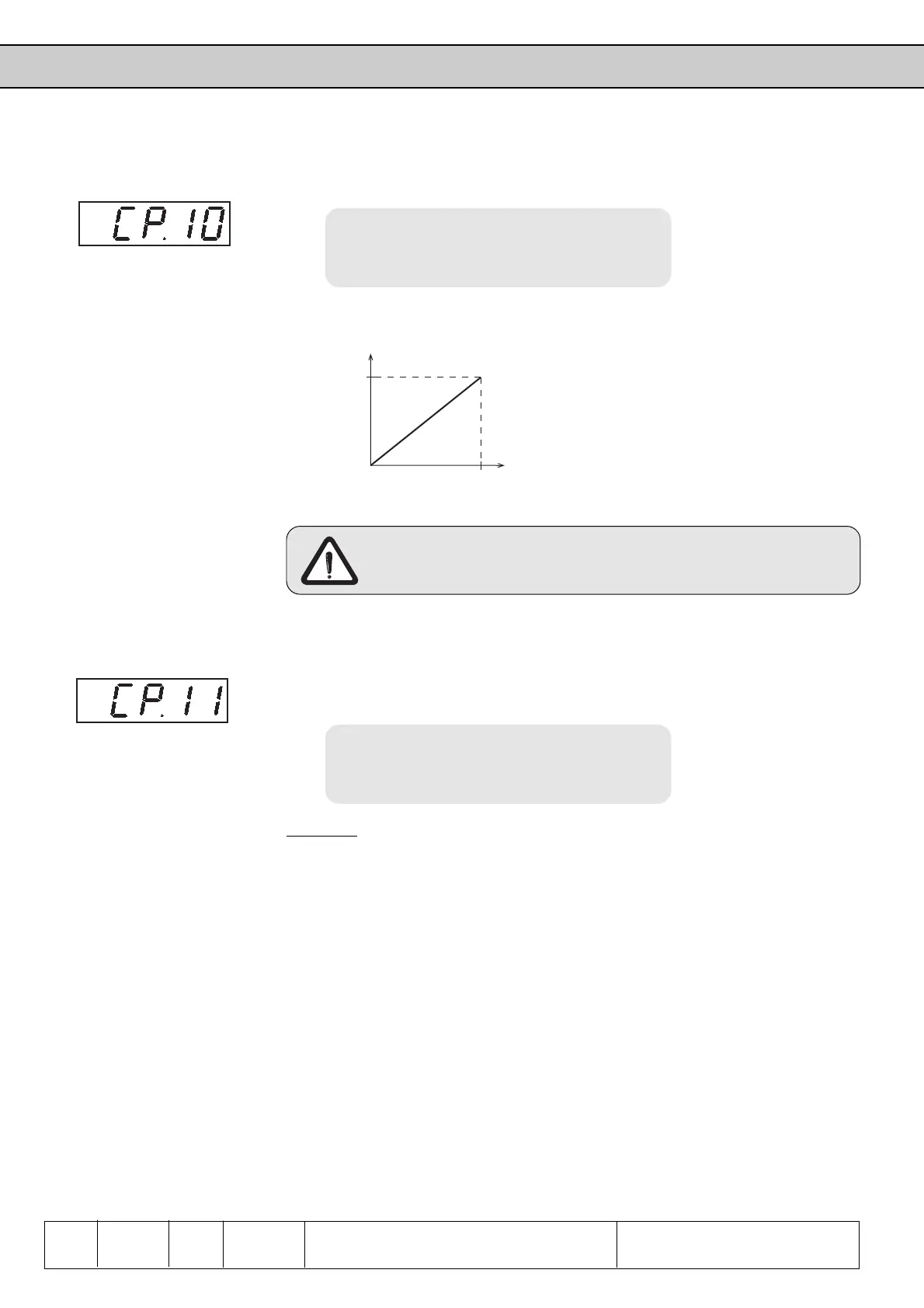

Defines the maximum setpoint speed.

Adjustment Range: 0…9999,5 rpm

Resolution: 0,5 rpm

Factory setting: 2100 rpm

Customer setting: ________ rpm

Only the reference speed is limited by this parameter. The actual

speed can exceed this value because of control oscillations or a

fault in the speed detection.

Maximum Setpoint Speed

Analoge setpoint presetting: REF 1

terminals X2.14 + X2.15

CP.10

+100

Analog setpoint

[rpm]

U [V]

(REF

Specifies a jogging speed (fixed speed), which can be activated by the digital inputs

I1 (forward) or I2 (reverse). If both rotations are simultaneously preset, 'forward' has

priority.

Adjustment Range: 0…9999,5 rpm

Resolution: 0,5 rpm

Factory setting: 100 rpm

Customer setting: ________ rpm

Function:

I1 or I2 active ⇒ The drive runs with an adjusted jogging speed.

- The original direction of rotation, speed, acceleration and decleration times do not

have a function!

- ACC and DEC times only have limited functions (see the following table)!

- If the jogging speed entered is too high, the adjusted value is internally limited onto

the maximum permissible motor speed!

- The software limit switches (see CP.35) remain active!

I1 and I2 not active ⇒ The drive runs with the analog reference speed.

Jog-Speed
