KEB COMBIVERT F4-F Applications Manual

11
ANTRIEBSTECHNIK
4
311
KEB COMBIVERT F4-F
Name: Basis
15.12.98
4
CP - Parameter
© KEB Antriebstechnik, 1998
All Rights reserved
Operation
Chapter Section PageDate

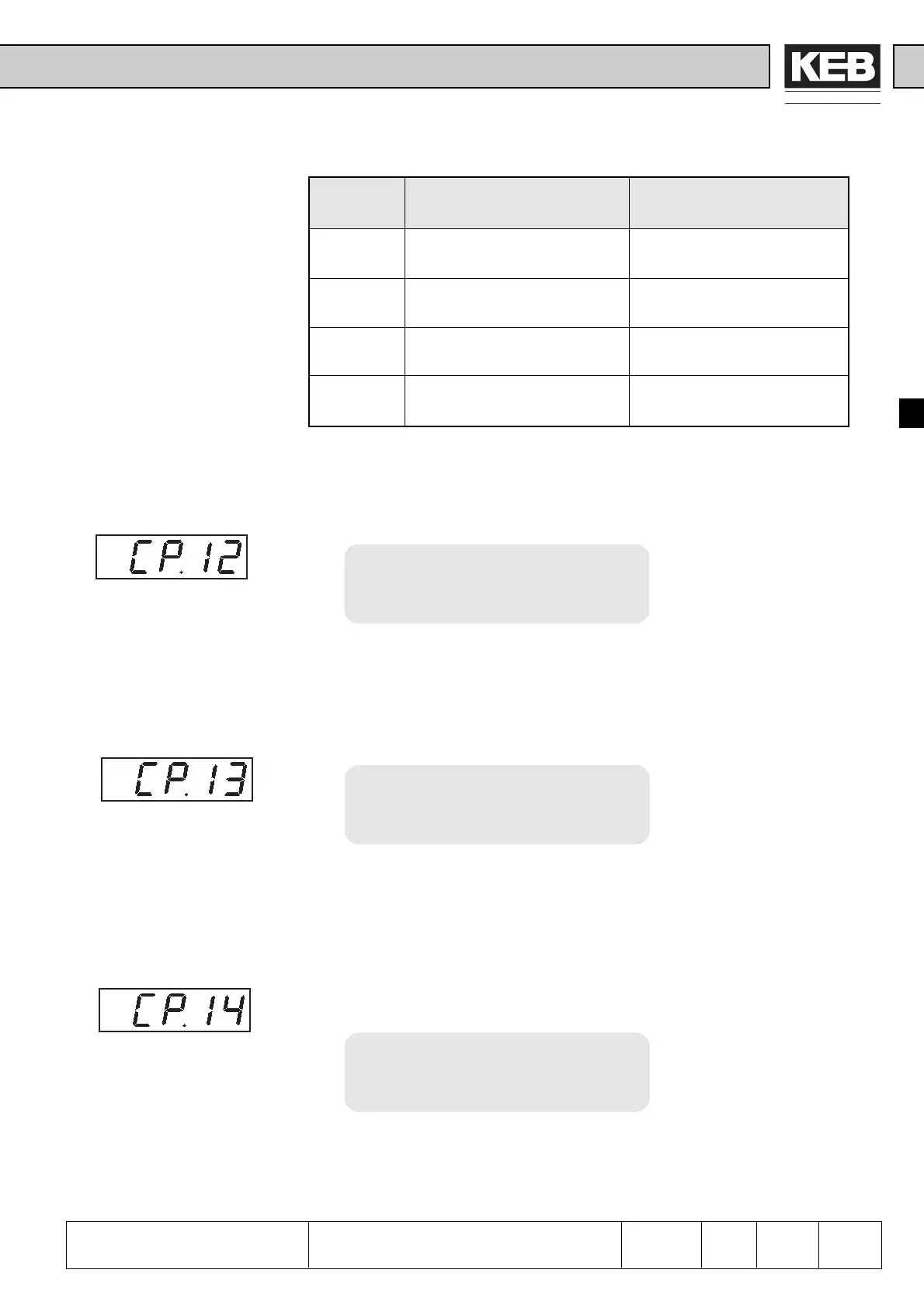

P-Factor Speed Controller
Proportional factor of the speed controller.
Adjustment Range: 0…65535
Resolution: 1
Factory setting: 400
Customer setting: ________
! see also parameter CP.36 !
I-Factor Speed Controller Integral factor of the speed controller.
Adjustment Range: 0…65535
Resolution: 1
Factory setting: 200
Customer setting: ________
! see also parameter CP.36 !
Encoder 1 (inc/r)
Adjusts the increments of the incremental encoder used. Check the set and actual
speed displays during open-loop operation and compare.
The correct setting is: actual speed = set speed - slip
Adjustment Range: 256…10000
Resolution: 1
Factory setting: 2500
Customer setting: ________
Input Speed Ratio Acceleration/
I1 / I2 Deceleration Performance
is Actual speed dis. (CP.1) < drive accelerates on
activated Jogging speed (CP.11) the torque limit
is Actual speed dis. (CP.1) > drive accelerates in accord.
activated Jogging speed (CP.11) with the adjusted ramp
is Speed reference dis. (CP.6) < drive decelerates on
deactivated Jogging speed (CP.11) the torque limit
is Speed reference dis. (CP.6) > drive accelerates in accord.
deactivated Jogging speed (CP.11) with the adjusted ramp
