KEB COMBIVERT F4-F Applications Manual

4 3 KEB COMBIVERT F4-F
18
Name: Basis
15.12.98

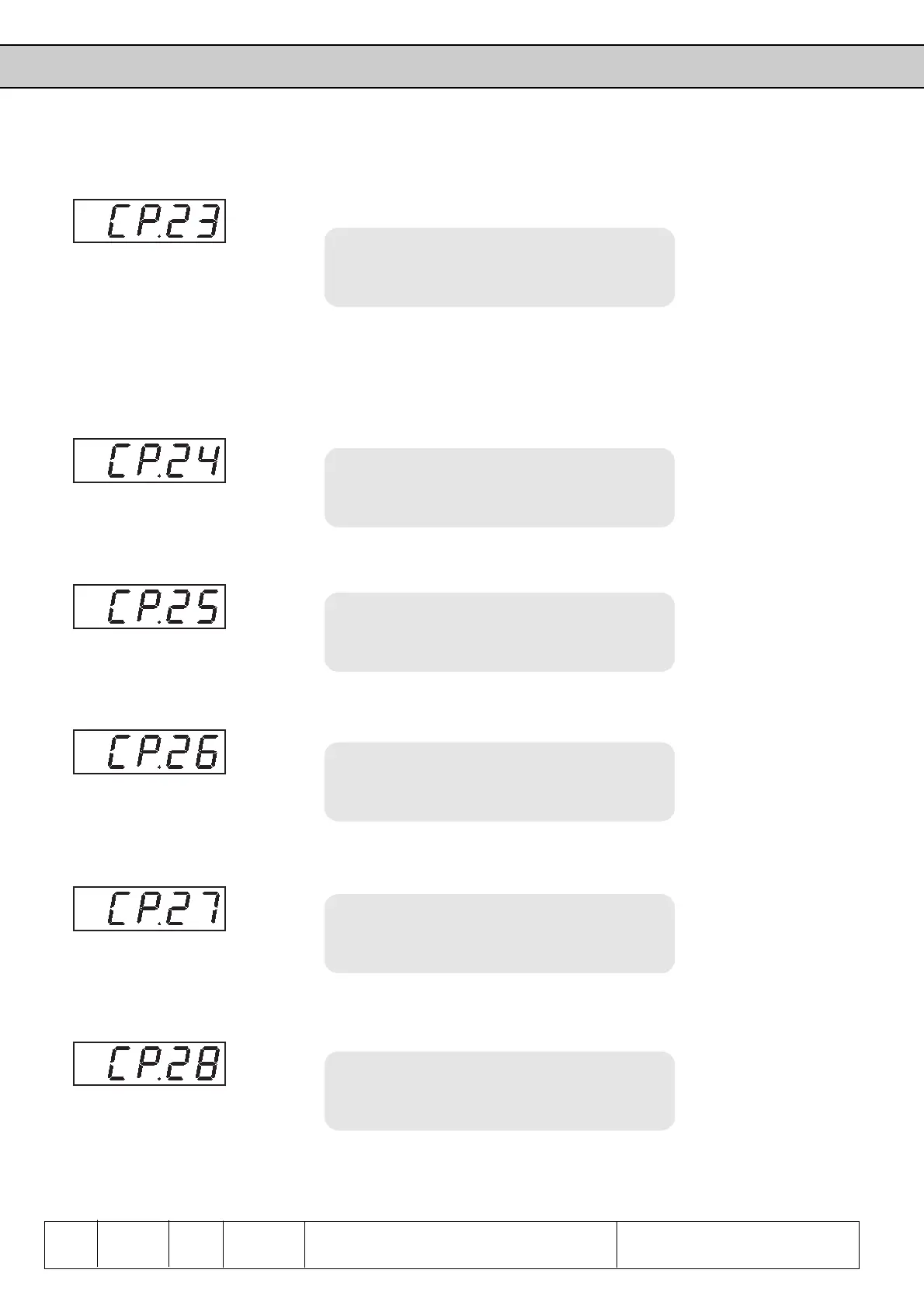

CP - Parameter
© KEB Antriebstechnik, 1998
All Rights reserved
Operation
Chapter Section Page Date
Defines the torque level for the digital output D1. During open-loop operation (CP.32
= 0) the value for the motor torque is set at 0.
Adjustment Range: 0…2000 Nm
Resolution: 0,1 Nm
Factory setting: 0 Nm
Customer setting: ________ Nm
max. Tolerance approx. ±30 % in the base speed range
(In the field weakening range larger tolerances are possible, also see reference on
page 4)
Torque Level output D1
The rated motor speed of the connected motor must be adjusted in CP.26.
Adjustment Range: 100…9999,5 rpm
Resolution: 1 rpm
Factory setting: dependent on size
Customer setting: ________ rpm
The rated current of the connected motor must be adjusted in CP.27.
Adjustment Range: dependent on size
Resolution: 0,1 A
Factory setting: dependent on size
Customer setting: ________ A
Speed Level output D2
Defines the speed level for the digital output D2.
Adjustment Range: 0…9999,5 rpm
Resolution: 0,5 rpm
Factory setting: 0 rpm
Customer setting: ________ rpm
Rated Motor Power The rated motor power of the connected motor must be adjusted in CP.25.
Adjustment Range: 0,01…75 kW
Resolution: 0,01 kW
Factory setting: dependent on size
Customer setting: ________ kW
Rated Motor Speed
Rated Motor Current
The rated frequency of the connected motor must be adjusted in CP.28.
Adjustment Range: 20…300 Hz
Resolution: 1 Hz
Factory setting: dependent on size
Customer setting: ________ Hz
Rated Motor Frequency
