4 3 KEB COMBIVERT F4-F
22
Name: Basis
15.12.98
CP - Parameter
© KEB Antriebstechnik, 1998
All Rights reserved
Operation
Chapter Section Page Date

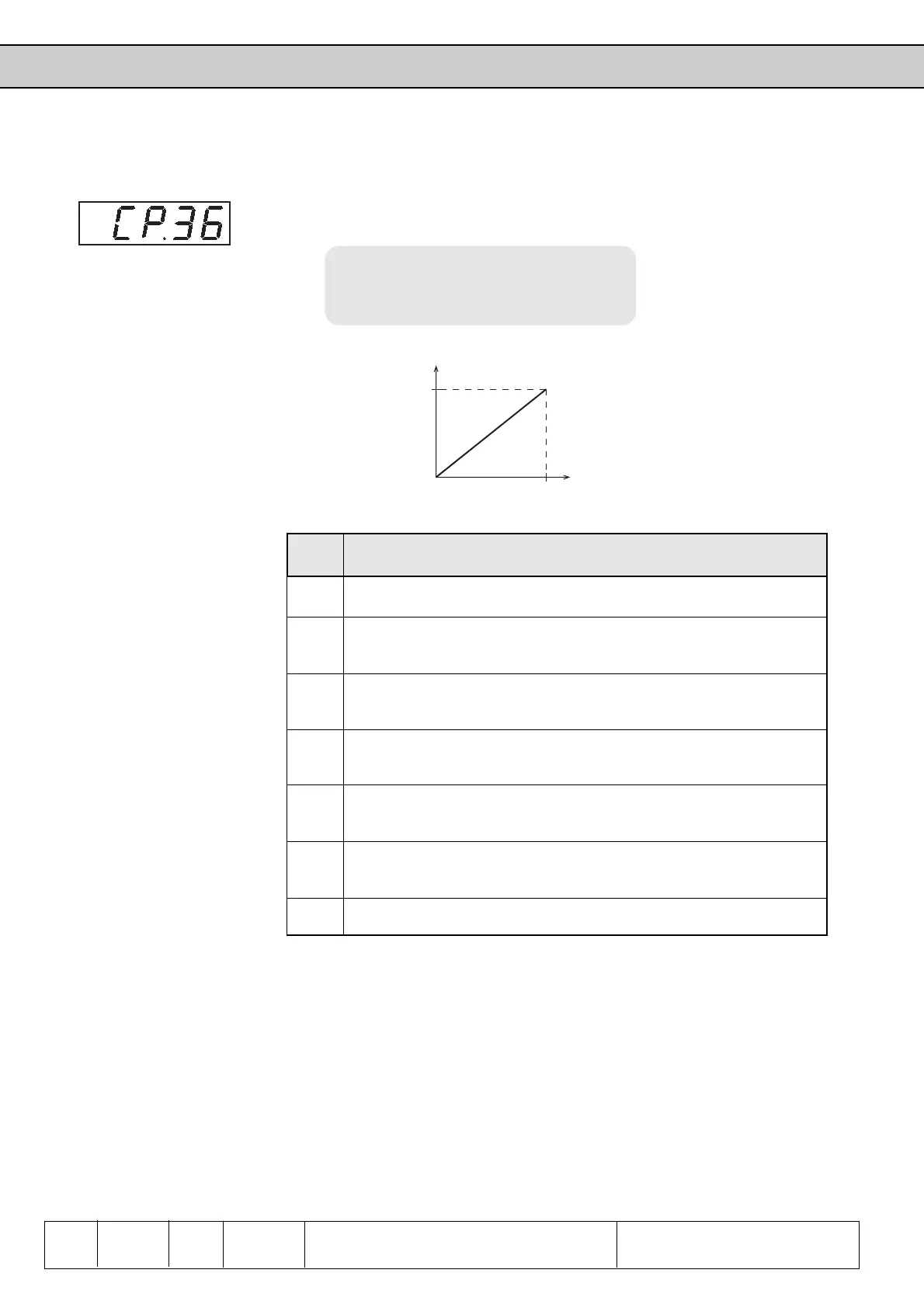

Value Function Analog Input REF2
0 no function
1 adds to the setpoint (has no influence on the Jogging operation) 1 0
V = CP.10
2 works as a multiplier for parameter CP.12 (P-factor of the speed
controller) 10 V = gain 1
3 works as a multiplier for parameter CP.13 (I-factor of the speed
controller) 10 V = gain 1
4 works as a multiplier for parameter CP.12 + CP.13 (total gain of the speed
cotnroller) 10 V = gain 1
5 works as a multiplier for parameter CP.9 (torque limit)
10 V = gain 1
6 torque control; only available in the application mode
In CP.36 you can adjust on which parameter the 2nd analog input REF2 should work
(X2.16 / X2.17). During open-loop operation values 2; 3; 4 and 5 do not have a
function !
Adjustment range: 0…6
Resolution: 1
Factory setting: 0
Customer setting: ________
Aux Function
Factor 1 or CP.10
(see table)
+100
n [rpm]
U [V]
(REF
2)
