Dimensions and weights
5.5.2
Commutation reactor/mains choke
412
266
186
312
388
264
146
10
16
d
PE
Mat.-Number
Inductance
Irated
PV
Frequency
Weight
[mH]
[A]
[W]
[Hz]
[kg]
29Z1B04-1000
0.061
485
530
45…65
45
T
echnical data of the connection terminals
Maximum tightening torque
PE
M12
Stay bolt for ring thimble
25 Nm
200 lb
inch
D
Ø8
Hole for screw M12 for max. two ring thimbles each with 240
mm²

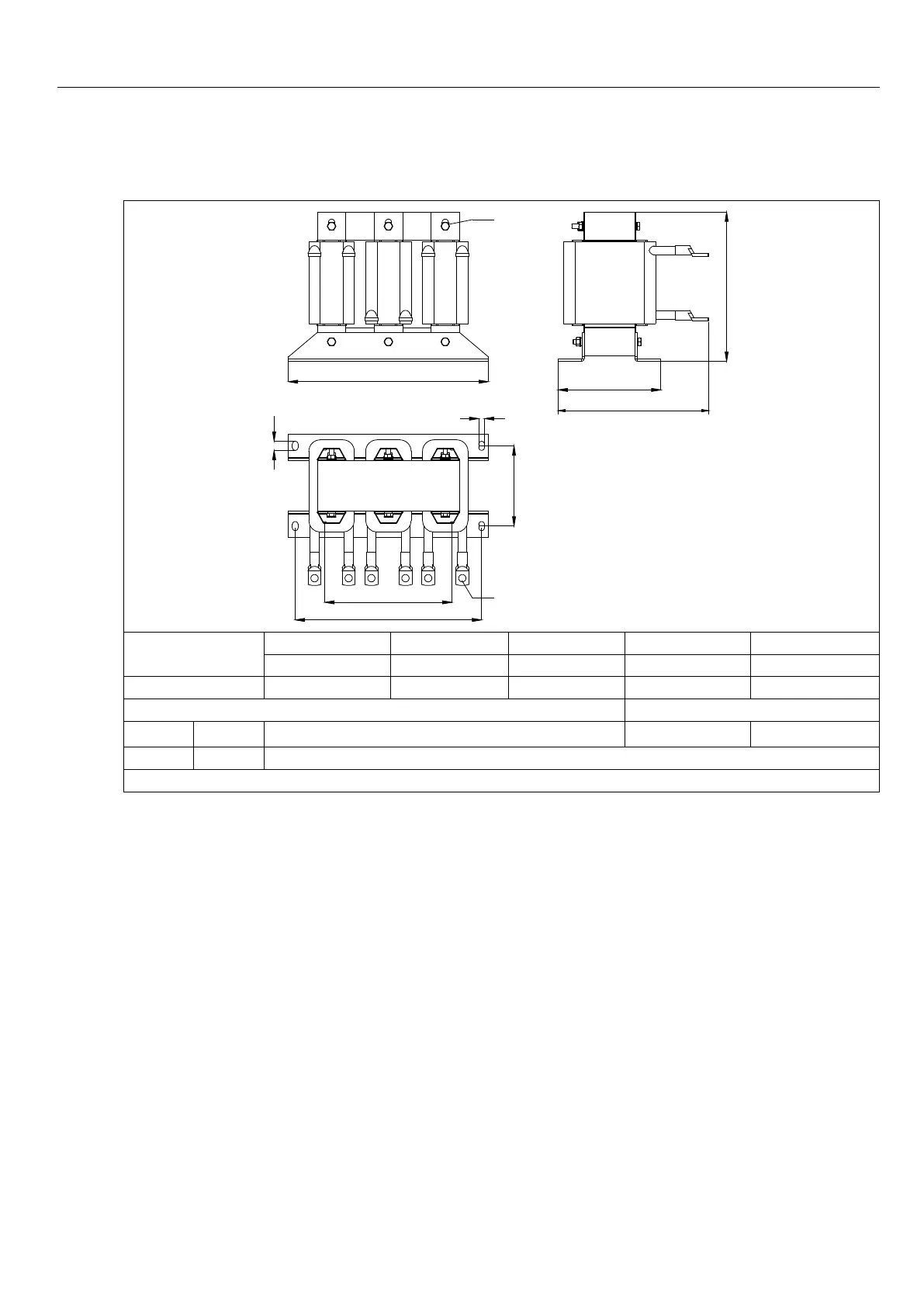

Figure 23:
Commutation reactor / mains choke
19
21
