GB - 104
Appendix A
A.3.2

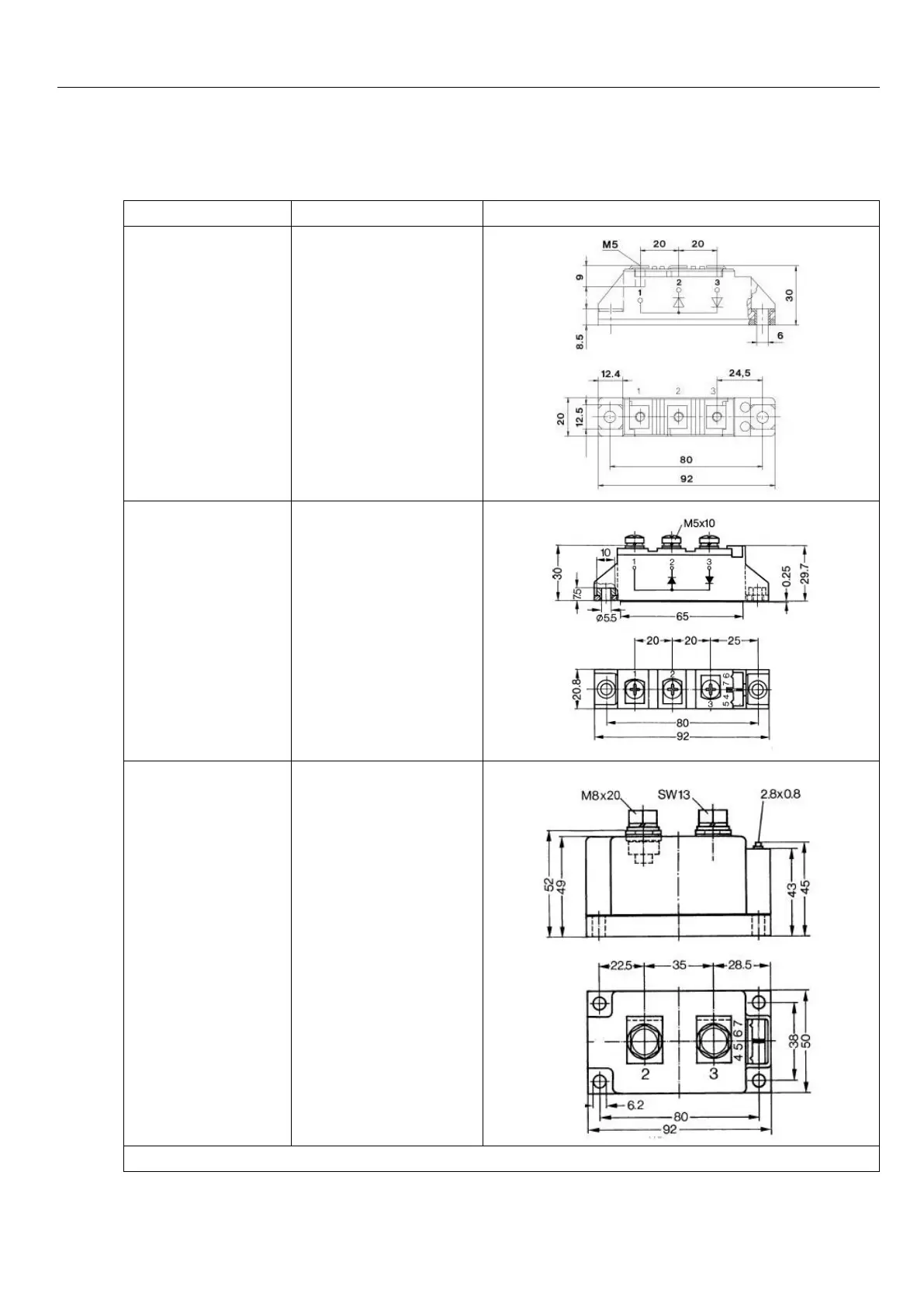

Dimensions of the decoupling diodes
Material number
connection
Dimensions
0090147-3500
1(anode)
2(cathode)
or
3(anode)
1(cathode)
0090147-4101
1(anode)
2(cathode)
or
3(anode)
1(cathode)
0090147-6009
3(anode)
2(cathode)
Figure 40:
Dimensions of the decoupling diodes
51
53
Table of Contents
Table of Contents
3
1 Introduction
5
Preface
5
Product Description
5
Validity and Liability
6
Copyright
6
Specified Application
7
Standard Operation
7
Abnormal Operation
7
Unit Identification
8
2 Safety Instructions
9
General Instructions
9
Transport, Storage and Installation
9
Electrical Connection
10
EMC Instructions
14
EMC Conform Installation
14
3 Technical Data
15
Overload (OL) Function
16
Operating Conditions
16
Accessories
18
Options
18
Ferrite Rings
18
Dimensions and Weights
19
Dimensions Air Cooling System Mounted Version
19
Commutation Reactor/Mains Choke
20
Radio Interference Filter (Side-Mounted)
21
Synchronization Unit
21
4 Installation
22
EMC-Compatible Control Cabinet Installation
22
Installation Instructions
22
Connection of the COMBIVERT R6
23
General Description of Inverter Input Terminals
23
Connection Terminals of the Power Circuit
25
External Fan Power Supply
26
Connections of the Control Board
27
Connection of the Synchronization Unit
27
Connection Power Unit R6-S
28
Power Supply And Regenerative Operation At Inverter Current ≤ Current Of One
28
Combivert R6-S
28
Power Supply And Regenerative Operation At Inverter Currents ≤ Current Of One
29
Combivert R6-S
29
Power Supply and Regenerative Operation at Parallel Operation of up to Three R6-S
30
Regenerative Operation at Parallel Operation of up to Three R6-S with Decoupling Diodes
33
Connection of the Control Board Version S
35
Assignment of the Control Terminal Strip X2A
35
Assignment of the Socket X2B
36
Assignment of the Terminal Block X2C
36
Wiring Example
37
Operator
38
5 Operation of the Unit
39
Operation with PC und System Software COMBIVIS
39
Switch-On Procedure
39
Parameter Summary
40
Default Chapter
41
Monitoring and Analysis Parameters
41
AC Current L1
42
AC Current L2
42
AC Current L3
42
CP.01 Status Display
42
CP.02 Actual Line Frequency - 0.1 Hz
42
CP.06 Act.DC Utilization - 1
42
Peak DC Utilization
42
DC Current
43
DC Voltage
43
OL Counter Display
43
Peak DC Voltage
43
Peak Value
43
Power Module Temperature
43
0.01 Kva
44
CP.14 Total Regen
44
CP.15 Total Motor
44
CP.16 Total Net
44
CP.17 Actual Net
44
Special Adjustments
45
ANOUT 1 Gain
45
Comparison Level 0
45
CP.20 General Fault Reset 0
45
Last Error
46
Last Error -1
46
Last Error -2
46
Last Error -3
46
Last Error -4
46
Last Error -5
46
Last Error -6
46
Last Error -7
46
Software Date
46
Software Version
46
CP.34 Regeneration Level 100
47
A. Appendix A
48
Dimensioning Power Supply and Regenerative Units
48
DC Link Capacitors of KEB Frequency Inverters
49
Decoupling Diodes
51
Assignment
51
Dimensions of the Decoupling Diodes
52
