KEB combivert R6-S User Manual

GB - 90
Operator

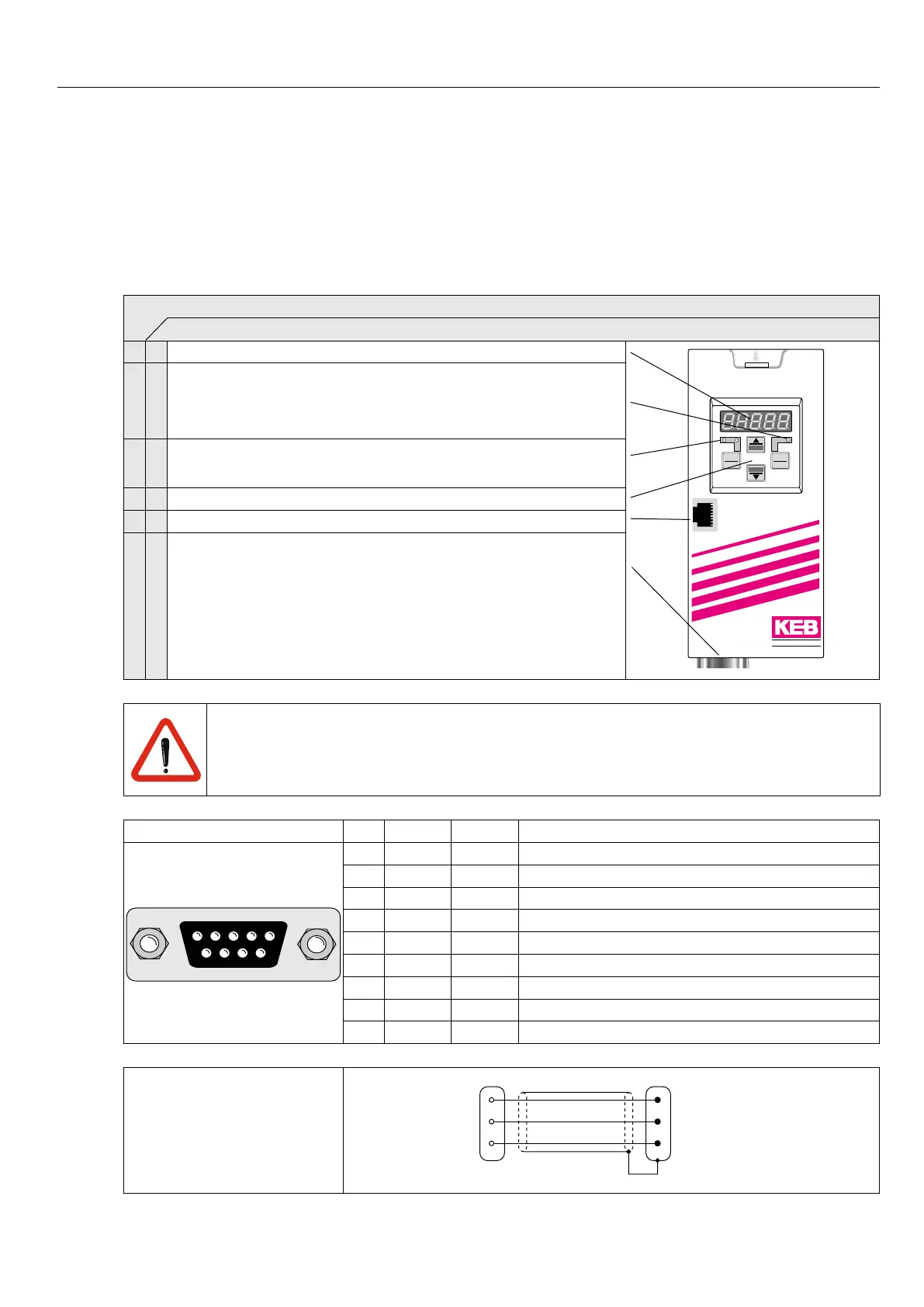

6.6 Operator
An operator is necessary as accessories for local or external operation of the COMBIVERT
R6-S. To prevent malfunctions, the COMBIVERT must be brought into nOP status before
connecting/disconnectingtheoperator(opencontrolrelease).WhenstartingtheCOMBI-
VERT, it is started with the last stored values or factory setting.
Digitaloperator(partnumber00F5060-1000)
Interfaceoperator(partnumber00F5060-2000)
x x 5-digit LED Display
START
FUNC.
SPEED
ENTER
F/R
STOP
COMBIVERT
X6C X6D
X6B
x x Operating-/Error display
Normal "LED on"
Error "LED blinks"
- x Interface control
Bus operation "LED on"
x x Double function keyboard
- x X6B HSP5 programming and diagnostic interface
- x X6C RS232/RS485
Only use the operator interface for the serial data transfer to RS232/485. The di-
rect connection, PC to the COMBIVERT is only permissible with a HSP5-special
cable(partnumber00F50C0-0001)otherwiseitwouldleadtothedestructionof
thePC-interface!
X6C PIN RS485 Signal Meaning
5 4 3 2 1
9 8 7 6
5 4 3 2 1
9 8 7 6
1 - - reserved
2 - TxD Transmission signal RS232
3 - RxD Receive signal RS232
4 A‘ RxD-A Receive signal A RS485
5 B‘ RxD-B Receive signal B RS485
6 - VP Voltagesupply+5V(Imax=50mA)
7 C/C‘ DGND Data reference potential
8 A TxD-A Transmission signal A RS485
9 B TxD-B Transmission signal B RS485
RS 232 cable
Part number
0058025-001D
Length 3 m
3
2
5
2
3
7
9-pole Sub-D socket
to the PC
Housing(PE)
to the operator
9-pole Sub-D connector
