GB - 78
Connection of the COMBIVERT R6
All terminals must be provided with
cover caps against electric shock.
L1.2 L2.2 L3.2
++ --
PE PE PE PE
Name Function
L1.2, L2.2, L2.3 3-phase mains connection to the commutation reactor
++, – – DC voltage output with starting current limiting;
Connection for inverter
Connection for shielding /earthing
Technical data of the connection terminals max. tightening torque
M12
Stay bolt for maximum 2 ring thimbles with
240 mm² for each
48 Nm 400 lb inch

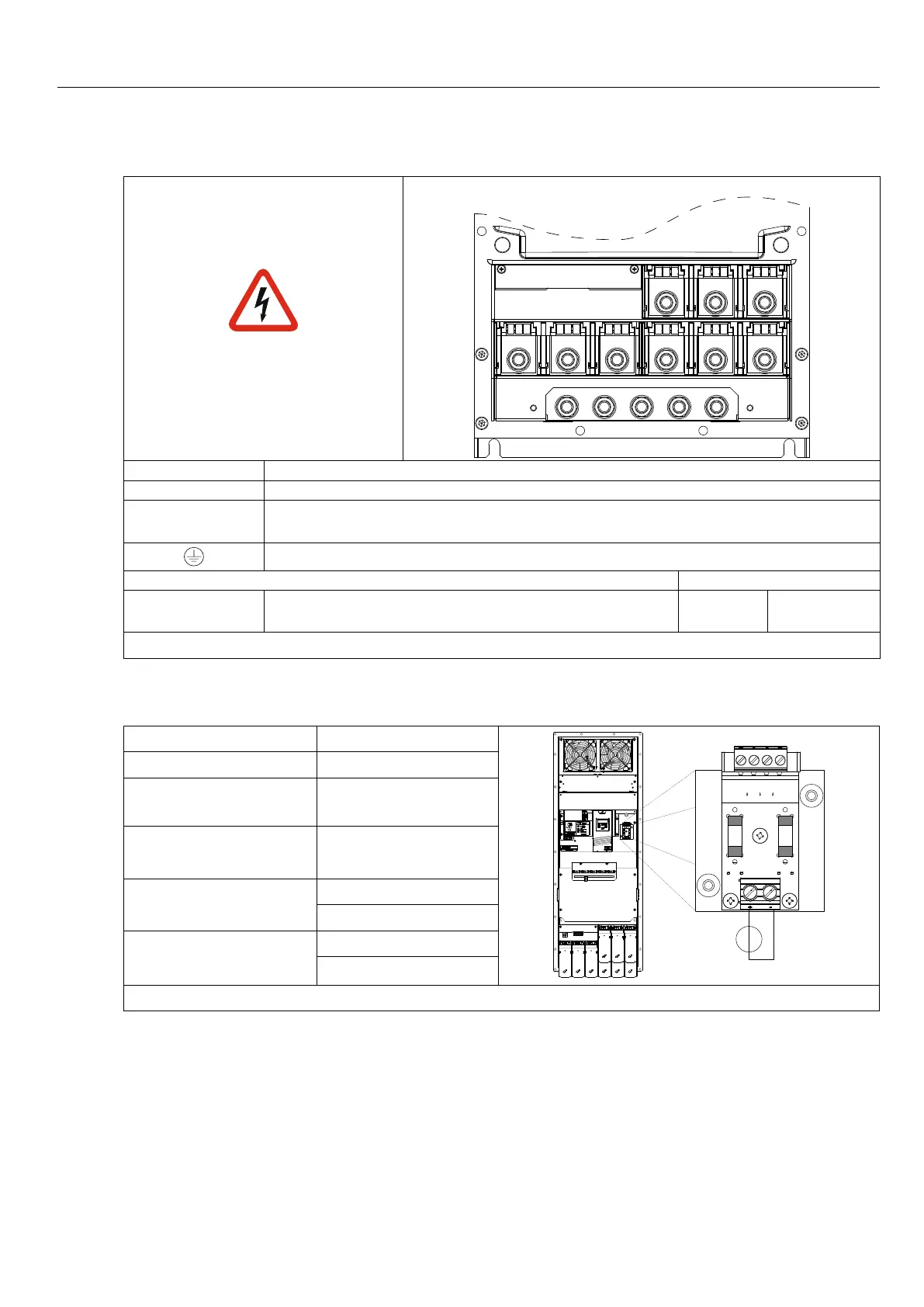

Figure 29: Connection terminals of the power circuit
6.3.3 External fan power supply
Connection Terminals +, -
Voltage supply +24 Vdc ±10 %
Power input approx. 2.5 A per
module
Spare fuses 3.15 A Type gG
minimum 50 V
permissible connec-
tion cross-section
0.2…4 mm²
24 …10 AWG
maximum tightening
torque
0.6 Nm
5.3 lb inch
Figure 30: External fan power supply
