KEB combivert R6-S User Manual

GB - 76
Connection of the COMBIVERT R6
TypeA1:AC/DCinverter TypeB1:ACinverter TypeC1:DCinverter
+
++
--
L1
L2
L3
+PA
-
L1
L2
L3
+
+PA
-
L1
L2
L3
+
+
++
--
TypeA2:AC/DCinverter TypeB2:ACinverter TypeC2:DCinverter
+
++
--
L1
L2
L3
+PA
-
L1
L2
L3
+
+
++
--
This type can be supplied
by mains and by DC circuit.
The starting current limita-
tion is designed after the
input terminals. When used
as output parallel connected
inverters must have an own
starting current limiting at the
DC voltage input. Observe
the max. load current.
This type can be supplied
by mains. In consideration
of the DC link capacity the
DC voltage terminals can be
used as output. When used
as input ensure that the
starting current is externally
limited.
This type is only a DC in-
verter with starting current
limiting. The DC inverter can
be combined with all other
types in consideration of the
maximum DC link capacity.

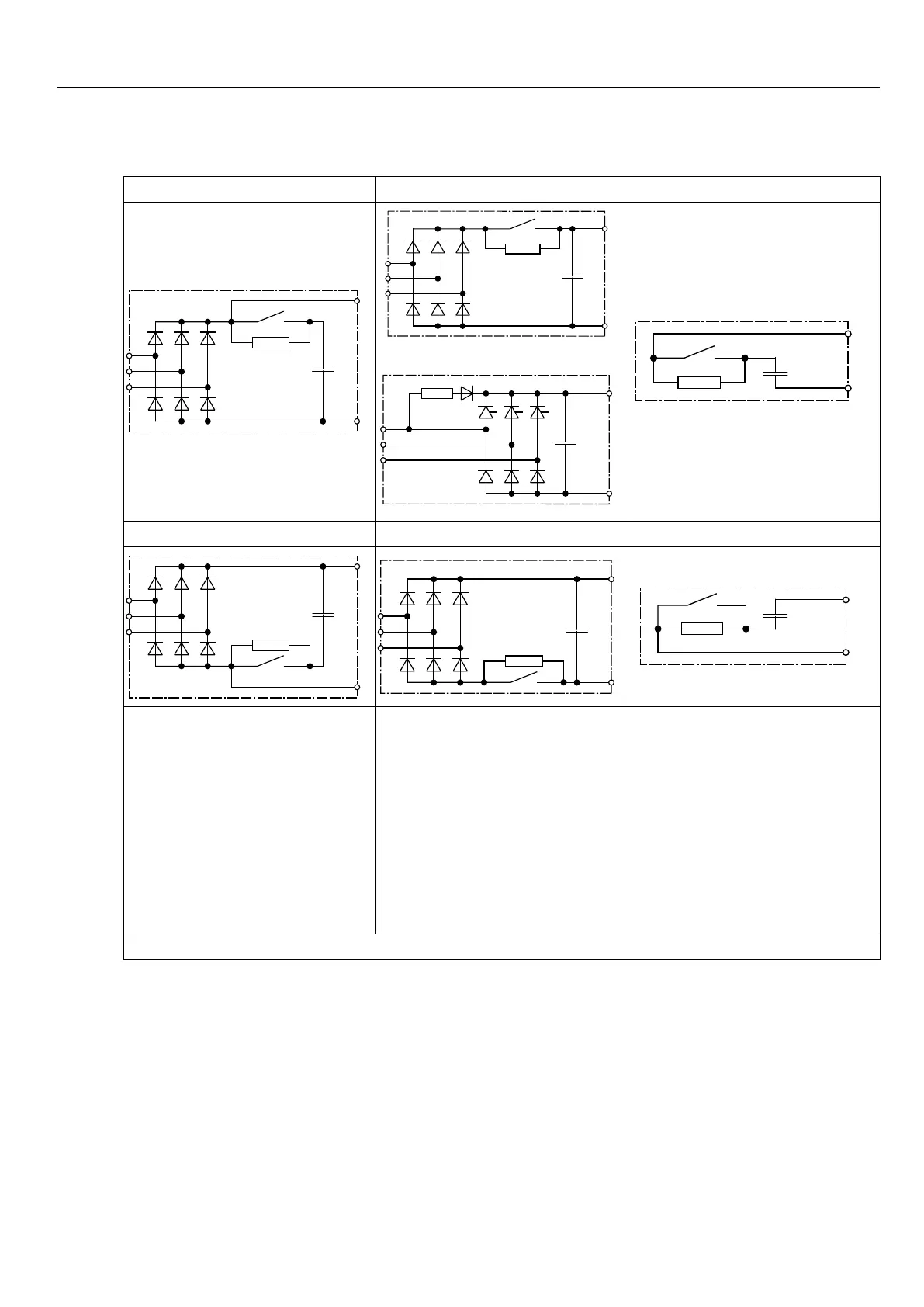

Figure 27: General description of input terminals at KEB inverter
