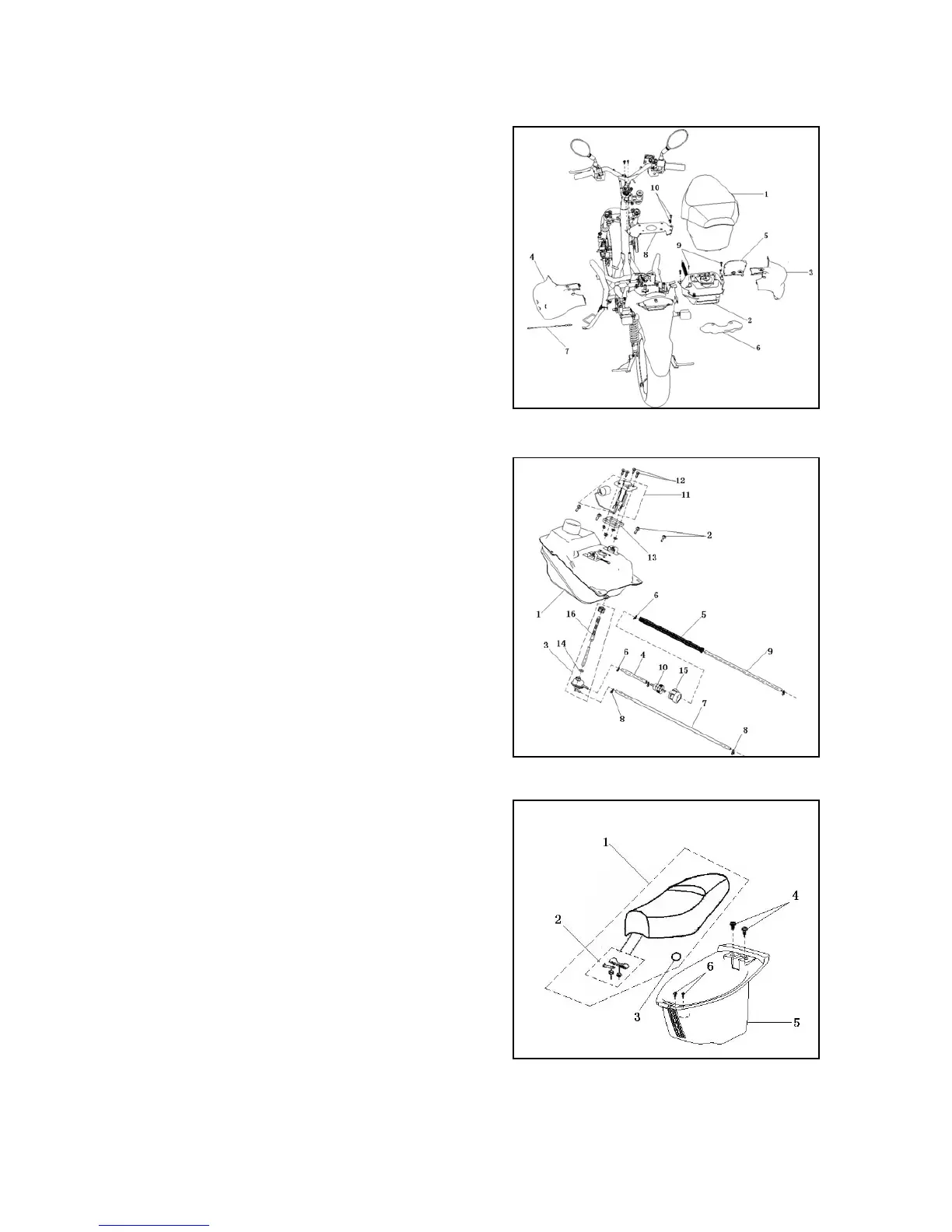

9.3 Fuel tank/seat
9.3.1 Disassembly
Open the seat.
Remove (four) fixing bolts of the seat.
Remove the machine oil pot guard.
Remove the machine oil pot.
Remove the seat and the helmet box (1).
Remove the rear storage box rack.
Remove the rear left/right guard assembly.
Remove the rear rack and helmet box.
Remove the rear rack holder.
Turn the fuel switch to “OFF”.
Disconnect the fuel hose.
Remove the fuel tank.
Note:
For details, see P101, P102, P103.
9.3.1 Installation
Install it in reverse order.
Torque force for mounting:
Fixing screws for the rear rack 22-29 N·m
Fixing bolts for the fuel tank 5 - 9 N·m
Fixing bolts for the helmet box 5 - 9 N·m
