80

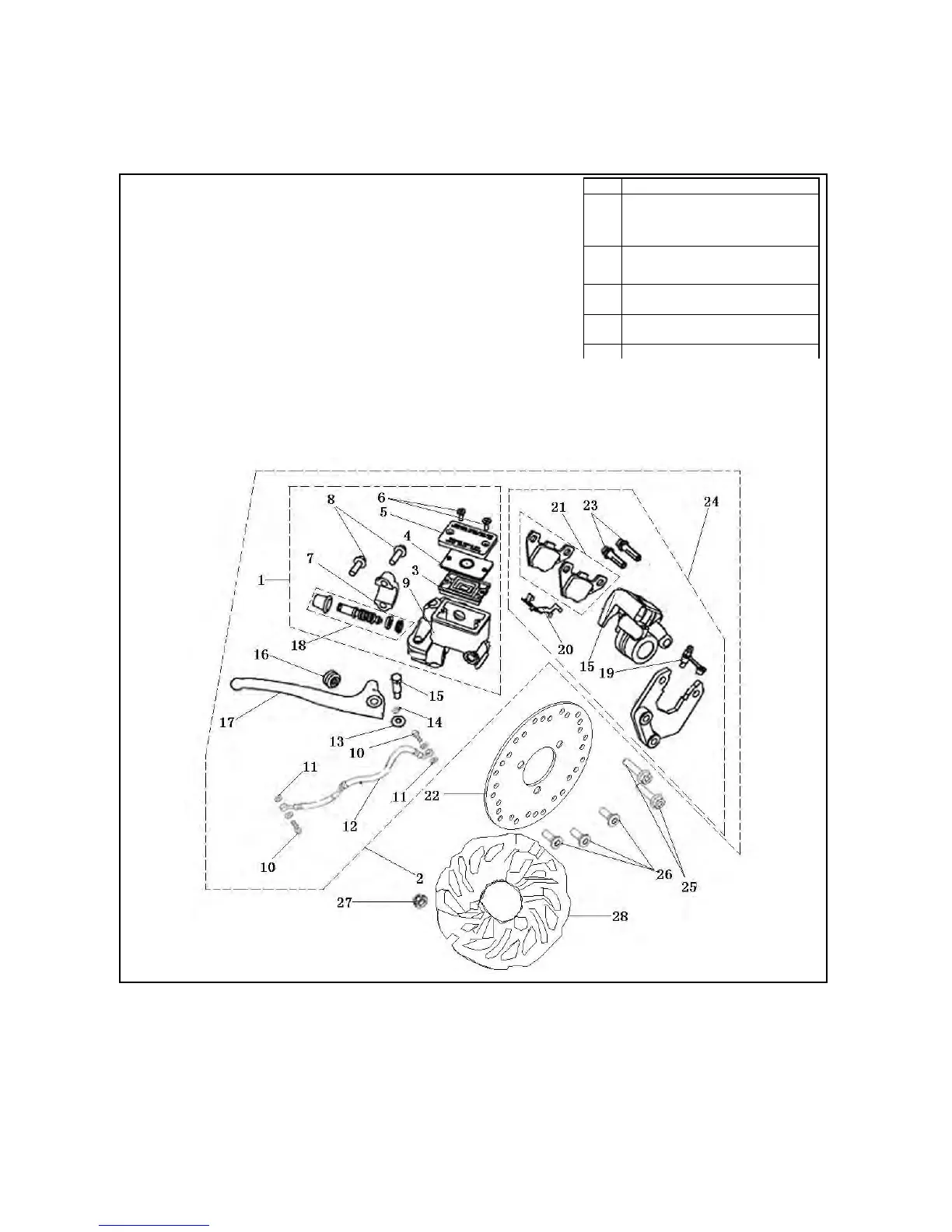

Front disc brake
1. fuel pump assembly 2. brake assembly 3. oil cup pad 4. fuel pump gasket 5. oil cup cap 6. screw M4×10 7.
fixing cover 8. bolt M6×23 9. fuel pump body 10. connecting bolt 11. gasket 12. brake hose assembly 13. nut
M6 14. spring gasket 6 15. handle fixing bolt 16. handle return spring 17. brake handle 18. plunger assembly
19. dust cover of bleed nipple 20. spring piece 21. friction disc assembly 22. front brake disc 23. little guide 24.
brake cylinder assembly 25. bolt M8×36 26. front brake disc mounting bolt 27. nut M10×1.25 28. flower type
brake disc
A Dia. of front brake disc: 190mm
B
Thickness of front brake disc: 3.6
mm
Limit for use: 2.6mm
C
Thickness of friction disc: 5.0mm
Limit for use: 4.0mm
D
Torque for mounting bolt 8: 5-
9N·m
E
Torque for mounting nut 27: 37-
44N·m
Free stroke of brake handle:
