KEEWAY FACT 50 4T User Manual

81

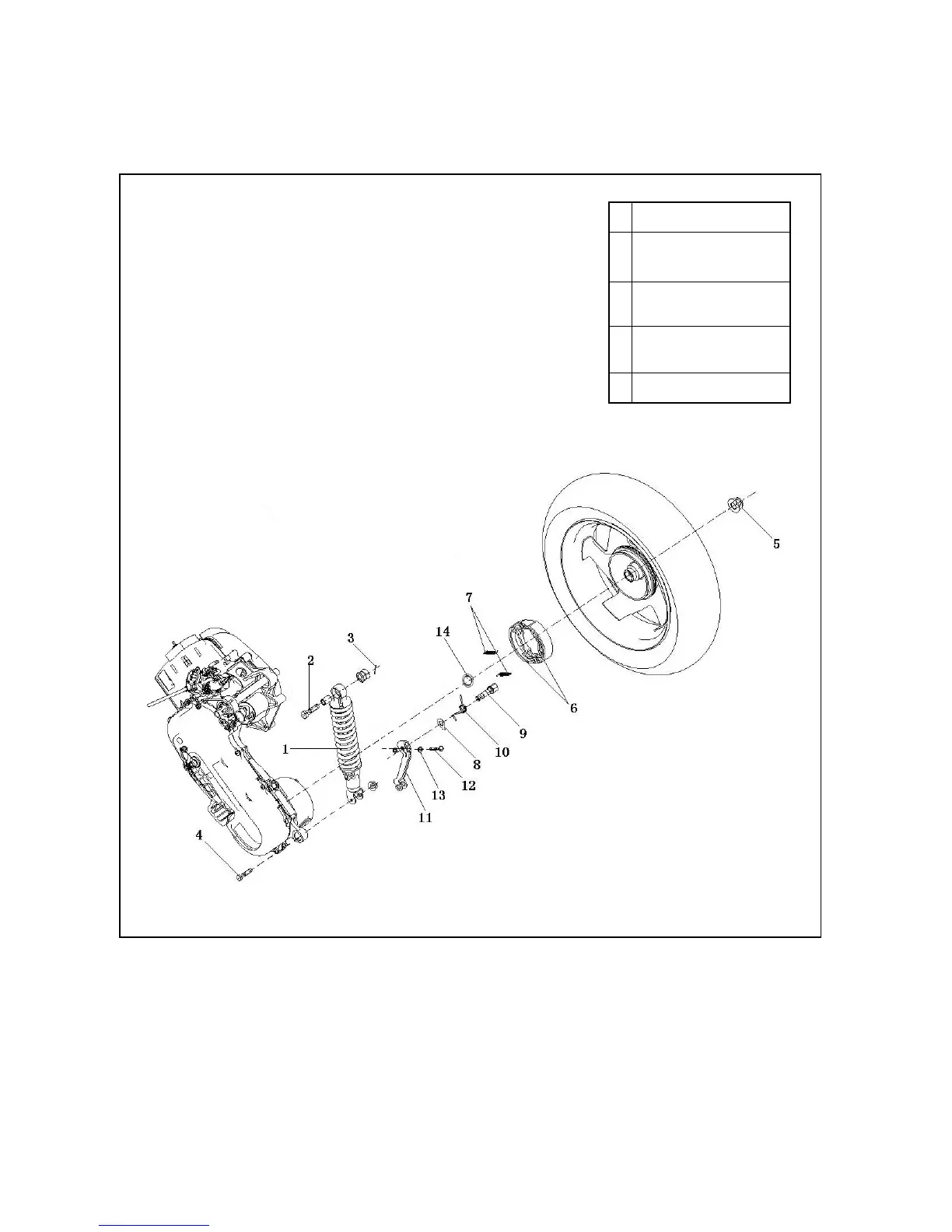

Rear drum brake
1. rear absorber assembly 2. bolt M10Χ1.25Χ40 3. cotter pin 4. bolt M8Χ35 5. nut M14Χ1.5 6. brake shoe
assembly 7. brake shoe spring 8. rear indicator 9. rear brake camshaft 10. rear brake return spring 11. rear
brake swing arm assembly 12. rear swing arm mounting bolt 13. o-ring 14. dust cover
A
Torque for mounting nut
5: 100-113N·m
B
I.D. of brake drum
:110mm
Abrasion limit: 111mm
C
Thickness of brake shoe:
4.5mm
Limit for use: 3.5mm
D
Free stroke of rear brake
handle: 10-20mm
E
Torque for mounting bolt
4: 22-29N·m
