GETTING STARTED
24

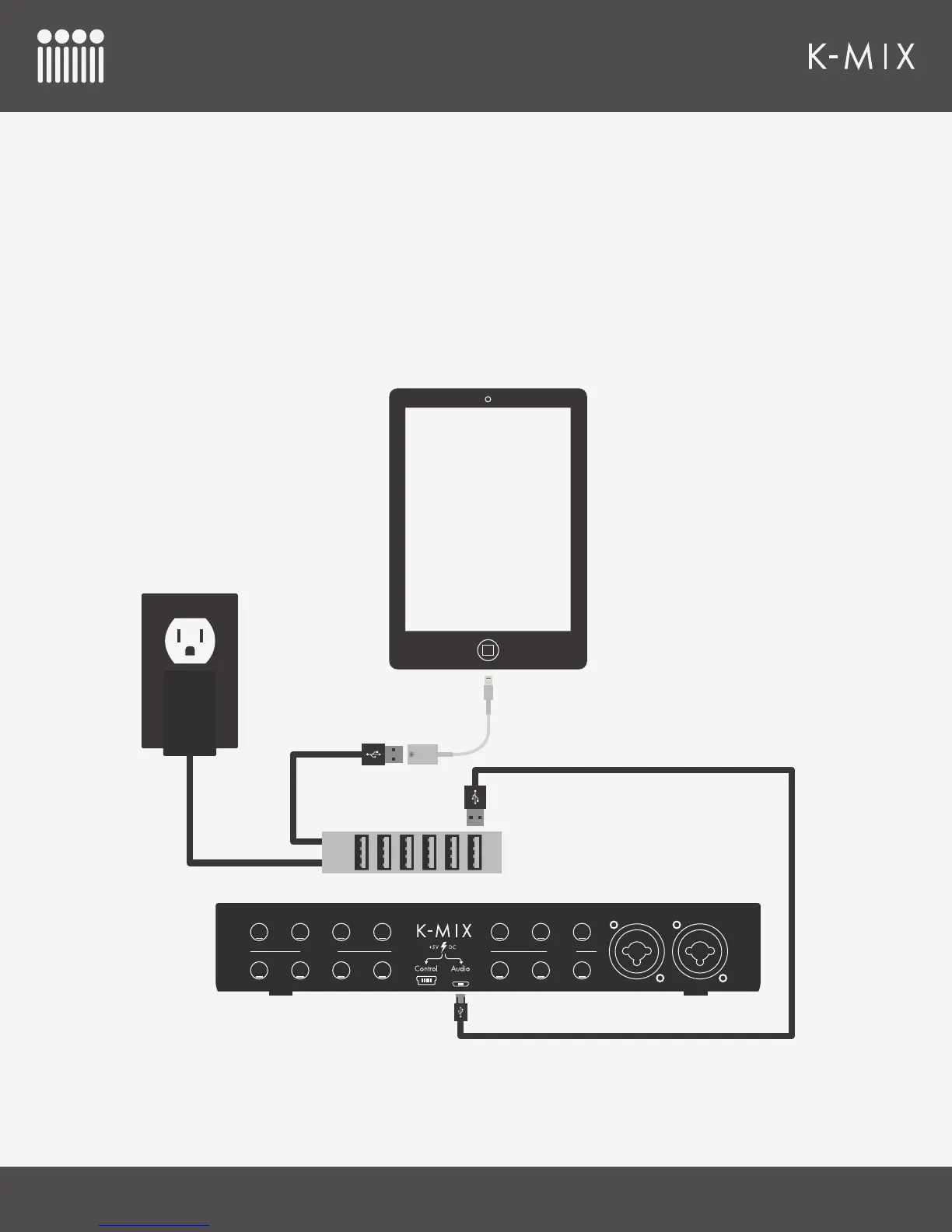

WITH POWERED USB HUB
1. Connect the Lightning to USB Camera Adapter to your iPad.
2. Connect the powered USB hub to a power outlet.
3. Connect the powered USB hub to the Lightning to USB Camera Adapter via USB.
4. Connect the K-Mix’s AUDIO port to the USB hub using a micro-USB cable.
Outputs Inputs
1
4
3
6
5
8
7
2
3
6
5
8
7
4
2 1
